Thread Cleaners

Thread Cleaners

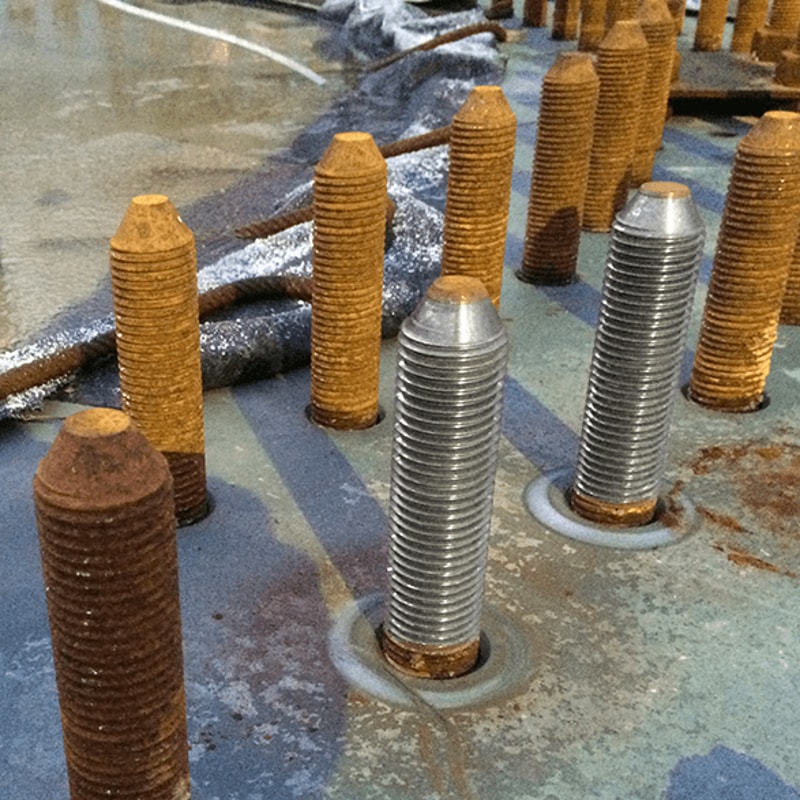

With BoltClean thread cleaners, nuts, bolts and studs are cleaned effortlessly and safely – which is a great way to save money! The unique brushing system smoothens threaded surfaces and recovers the original friction coefficient. BoltClean’s system is available for both external (ARG, ARM series) and internal (IRK series) threads.

Instant money savings on re-using your existing nuts, bolts and studs
Intensive and complete cleaning with surface smoothing without enlarging the thread
Not damaging the thread, unlike other methods like (sand) blasting
More accuratebolting with less scatter

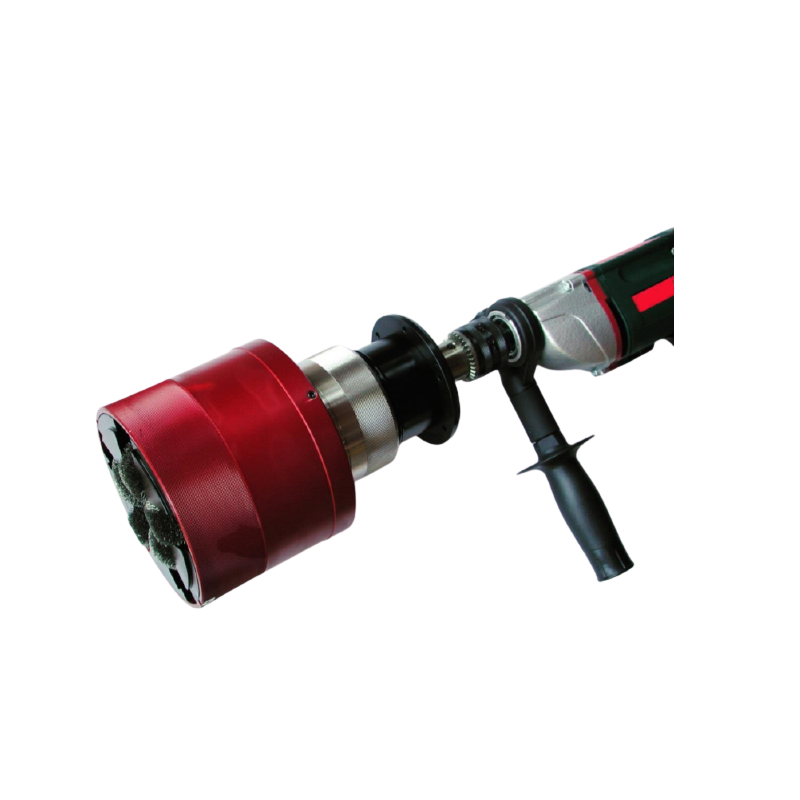

Light and mobile solution to clean the threads close to the flange
Uniform base plate with locking feature for quick change of different sizes of brushes

Description

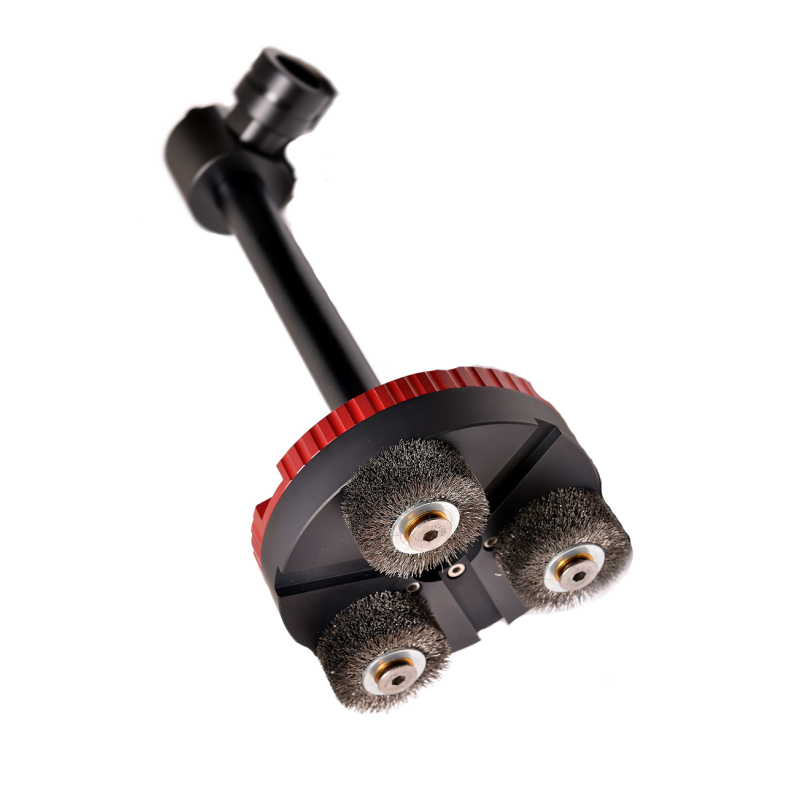

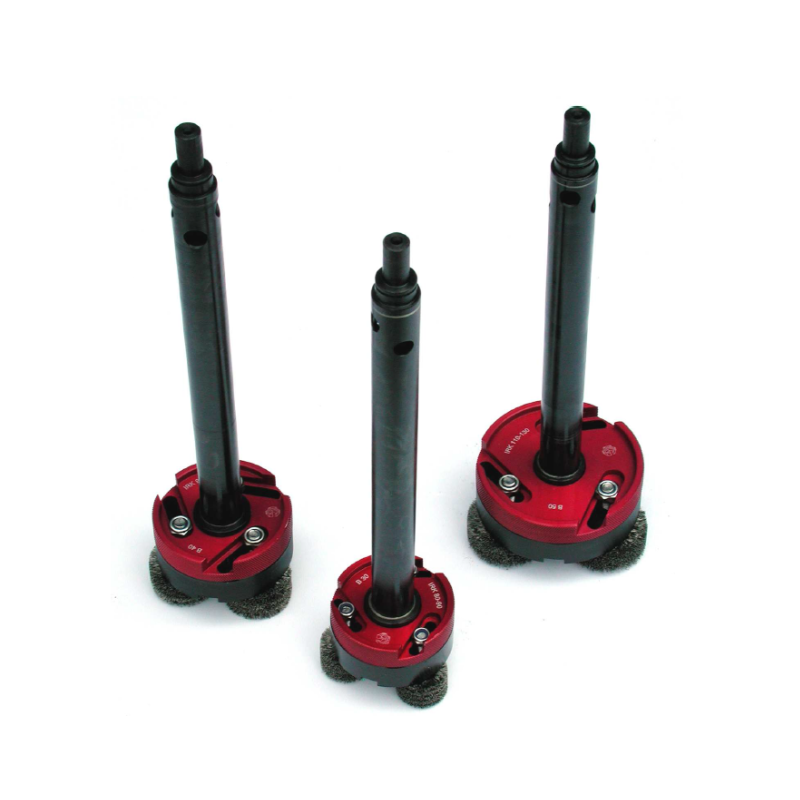

IRK For Internal Threads
Item	Thread Size	Max. Free Speed (rpm)	Length (mm)	Number Of Brushes	Weight (kg)
IRK 60-70	M60 – M70	300	350	3	0,6
IRK 70-80	M70 – M80	300	350	3	0,62
IRK 80-90	M80 – M90	300	350	3	0,75
IRK 90-110	M90 – M110	300	350	3	0,92
IRK 110-130	M110 – M130	300	350	3	1,13
IRK 130-150	M130 – M150	300	350	3	1,41
IRK 135-160	M135 – M160	300	350	5	1,5
IRK 150-180	M150 – M180	300	350	5	2,07

ARG For External Threads
Item	Thread Size	Ø (mm)	Max. Free Speed (rpm)	Max. Working Length (mm)	Number Of Brushes	Weight (kg)
ARG 10-27	M10 – M27	100	500	200	3	2,2
ARG 20-55	M22 – M55	150	500	200	5	5,1
ARG 35-70	M35 – M70	160	500	200	6	5,8
ARG 50-90	M50 – M90	185	300	200	6	7,1
ARG 90-120	M86 – M120	212	250	200	6	9,32

ARM For External Threads
Item	Thread Size	Ø (mm)	Max. Free Speed (rpm)	Max. Working Length (mm)	Number Of Brushes	Weight (kg)
ARM 06-22	M6 – M22	80	500	200	4	1,55
ARM 23-42	M23 – M42	105	500	200	5	2,16
ARM 43-64	M43 – M64	133	500	200	5	2,95
ARM 64-88	M64 – M88	150	300	200	5	3,87

Brand

BoltClean

BoltClean has over 30 years of experience in building thread cleaning systems for industrial applications. BoltClean is part of the IBTS Group, a manufacturer and supplier of bolted connection equipment. The IBTS product range ranges from HYTORC's industrial torque and tensioning systems to BoltSafe bolt load sensors and BoltClean thread cleaning solutions. This means that BoltClean is not a general wholesaler, but an expert in the bolting industry. Visit manufacturer's website >>
