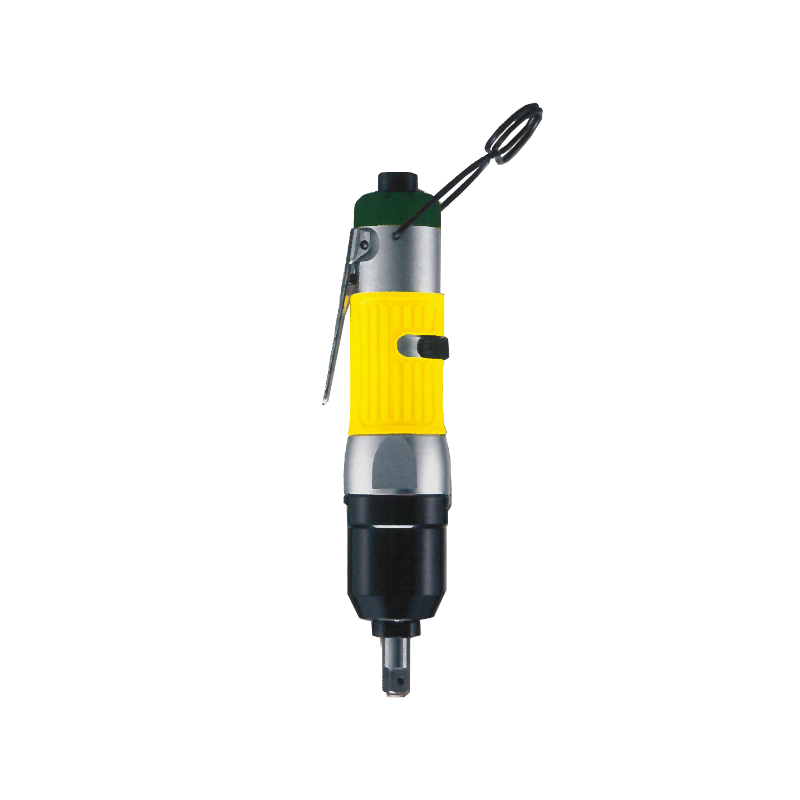

In-Line Impulse Wrenches

After a long-term development process, Haitor has released its own series of high-quality and cost-effective impulse wrenches. Reliable tools are ideal for professional use – the balanced and ergonomic models are both accurate and easy to use. A wide range of different angle models covers a torque range of 5 – 70 Nm.

High speed tool for production environment – even 6 800 rouns per minute
Easy to set up
Service-free
High accuracy
Wide range of models and sizes ensure there is an optimal screwdriver for every situation
Low vibration level of <2,5 m/s2 in models below 120 Nm

Description

Straight wrenches with auto shut-off
Item	Drive	Bolt Size	Torque Range (Nm)	Free Speed (rpm)	Weight (kg)	Lenght (mm)	Air Consumption (m3/min)	Air Inlet NPT
TKR-ISQ-11S	1/4″ QC	M6	5 – 12	4 200	0,77	219	0,25	1/4″
TKR-ISQ-17S	1/4″ QC	M6 – M8	9 – 17	4 200	0,8	224	0,25	1/4″
TKR-ISQ-25S	1/4″ QC	M8	13 – 26	6 800	0,8	224	0,35	1/4″
TKR-ISQ-30S	1/4″ QC	M8	18 – 30	6 000	0,86	235	0,4	1/4″
TKR-ISQ-40S	1/4″ QC	M8 – M10	25 – 40	5 000	0,97	247	0,4	1/4″
TKR-IS6-12S	3/8″ SQ	M6	6 – 13	4 200	0,8	221	0,25	1/4″
TKR-IS6-19S	3/8″ SQ	M6 – M8	10 – 19	4 200	0,8	221	0,25	1/4″
TKR-IS6-27S	3/8″ SQ	M8	14 – 28	6 800	0,8	221	0,35	1/4″
TKR-IS6-35S	3/8″ SQ	M8 – M10	20 – 35	6 000	0,86	231	0,4	1/4″
TKR-IS6-47S	3/8″ SQ	M10	28 – 47	5 000	0,97	244	0,4	1/4″
TKR-IS6-70S	3/8″ SQ	M10 – M12	40 – 68	6 100	1,15	248	0,5	1/4″
TKR-IS8-70S	1/2″ SQ	M10 – M12	40 – 70	6 100	1,21	251	0,5	1/4″

Straight wrenches without auto shut-off
Item	Drive	Bolt Size	Torque Range (Nm)	Free Speed (rpm)	Weight (kg)	Lenght (mm)	Air Consumption (m3/min)	Air Inlet NPT
TKR-ISQ-11	1/4″ QC	M6	5 – 12	4 200	0,77	219	0,25	1/4″
TKR-ISQ-17	1/4″ QC	M6 – M8	9 – 17	4 200	0,8	224	0,25	1/4″
TKR-ISQ-25	1/4″ QC	M8	13 – 26	6 800	0,8	224	0,35	1/4″
TKR-ISQ-30	1/4″ QC	M8	18 – 30	6 000	0,86	235	0,4	1/4″
TKR-ISQ-40	1/4″ QC	M8 – M10	25 – 40	5 000	0,97	247	0,4	1/4″
TKR-IS6-12	3/8″ SQ	M6	6 – 13	4 200	0,8	221	0,25	1/4″
TKR-IS6-19	3/8″ SQ	M6 – M8	10 – 19	4 200	0,8	221	0,25	1/4″
TKR-IS6-27	3/8″ SQ	M8	14 – 28	6 800	0,8	221	0,35	1/4″
TKR-IS6-35	3/8″ SQ	M8 – M10	20 – 35	6 000	0,86	231	0,4	1/4″
TKR-IS6-47	3/8″ SQ	M10	28 – 47	5 000	0,97	244	0,4	1/4″
TKR-IS6-70	3/8″ SQ	M10 – M12	40 – 68	6 100	1,15	248	0,5	1/4″
TKR-IS8-70	1/2″ SQ	M10 – M12	40 – 70	6 100	1,21	251	0,5	1/4″

Brand

Tekkor

Tekkor

Haitor's own brand Tekkor is our contract manufacturer's cost-effective alternative to most common fastening needs in the assembly industry. Our easy-to-use impulse wrenches and cordless screwdrivers are excellent choices when looking for an ergonomic, reliable, and repeatable solution for screw connections. The series consists of both pneumatic and battery-powered tools.
