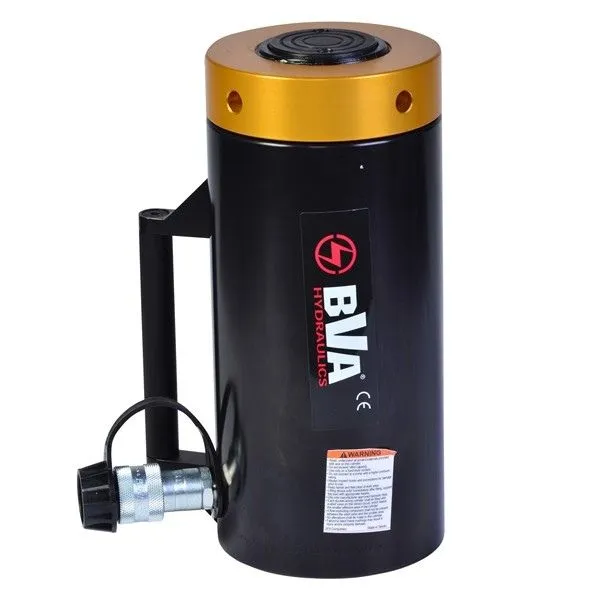

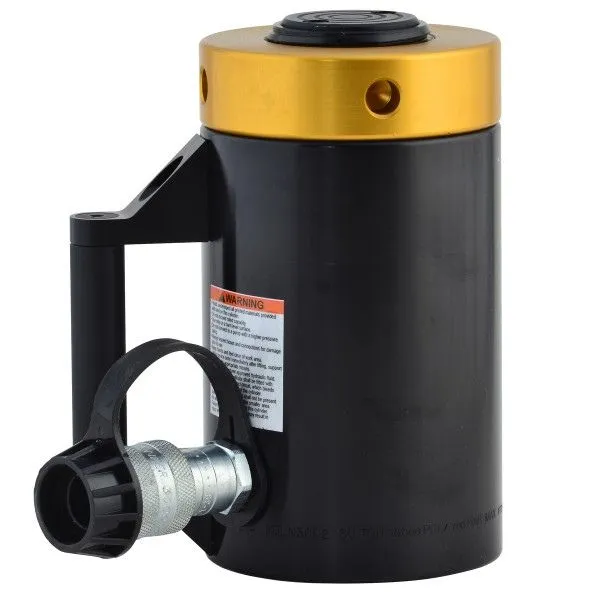

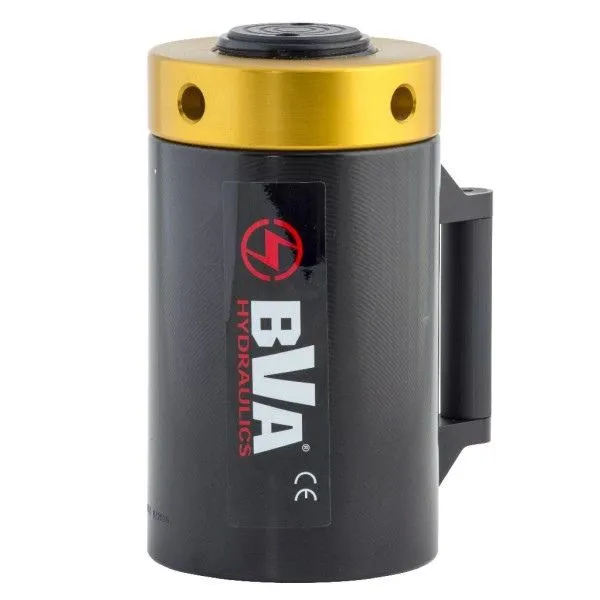

Single acting aluminium lock nut cylinder

HULN SERIES

The single acting aluminium hydraulic cylinder with locking ring supports loads without hydraulic pressure. The aluminium cylinder body makes the cylinder more user-friendly by reducing the weight of the cylinder. Hydraulic cylinder with locking ring is also a safer solution for long-term lifting work.

  • Single acting hydralic cylinder with mechanical locking nut
  • Cylinder can be safely left under the load
  • Overflow port preventing over travel
  • Spring return
  • Lightweight aluminium cylinder body
  • Steel saddle
  • Corrosion-protected cylinder
  • Maximum working pressure is 700 bar



More from BVA Hydraulics >>

Description

Push capacity: 30 ton (228 kN)
ItemStroke (mm)Min. height (mm)Outside Ø (mm)Oil capacity (cc)Cylinder effective are (cm²)Weight (kg)
HULN30025019614421341,96,8
HULN300410124714442641,98,1
HULN300615229814463941,99,5
HULN300820334914485241,911,3
HULN30102544001441 06541,913,6
Push capacity: 50 ton (489 kN)
ItemStroke (mm)Min. height (mm)Outside Ø (mm)Oil capacity (cc)Cylinder effective are (cm²)Weight (kg)
HULN50025020614035571,29,5
HULN500610125714071071,211,7
HULN50061523071401 06471,213,6
HULN50082033581401 47871,215,8
HULN50102544091401 77371,218,1
Push capacity: 100 ton (916 kN)
ItemStroke (mm)Min. height (mm)Outside Ø (mm)Oil capacity (cc)Cylinder effective are (cm²)Weight (kg)
HULN1000250212203644133,420,4
HULN100041011632031 327133,423,5
HULN100061523012031 991133,427,2
HULN100082033652032 655133,431,7
HULN100102544152033 318133,436,2
Push Capacity: 150 ton (1359 kN)
ItemStroke (mm)Min. height (mm)Outside Ø (mm)Oil capacity (cc)Cylinder effective are (cm²)Weight (kg)
HULN1500250238254993197,929,9
HULN150041012882541 986197,936,2
HULN150061523392542 979197,943,0
HULN150082033902543 972197,948,0
HULN150102544412544 965197,956,6
