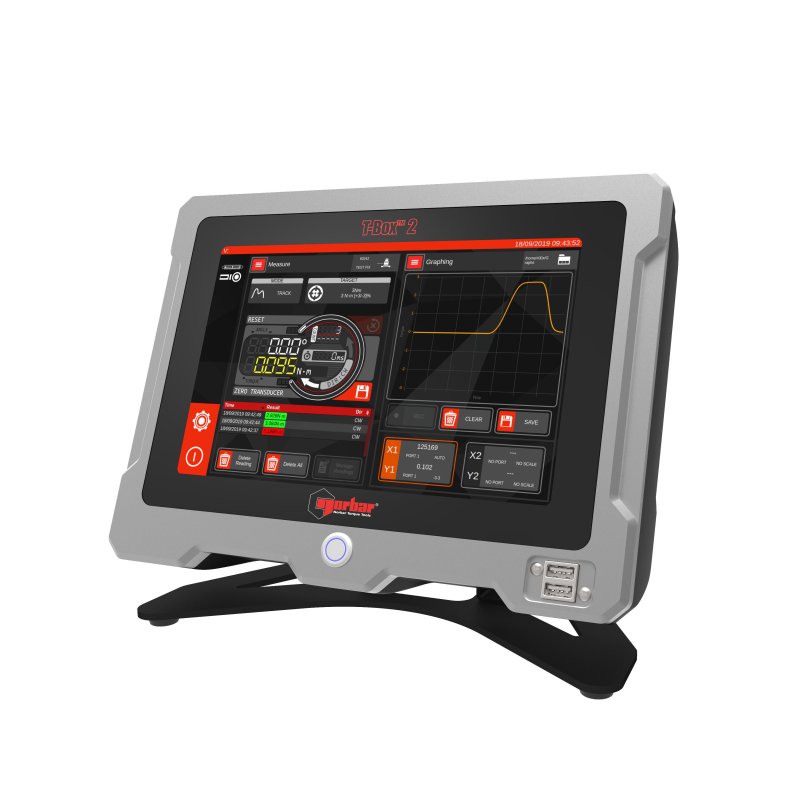

T-Box 2

MEASUREMENT DEVICE

The T-Box™ 2 utilizes its powerful processor to provide a seamless and complete torque data collection package with tool calibrations, data logging, simultaneous transducer connections and archiving to your PC. Two task windows allow simultaneous working – measure against a target while graphing the cycle, take readings from two transducers simultaneously, capture two different graphs at the same time or manage and review readings as they are captured. T-Box 2 is available in 12 different languages and includes total of 6 modes for torque tool measurement.

Accuracy of ±0.05% of reading
Includes 6 modes for torque tool measurement: Track, Click, Dial & Electronic, Stall, Screwdriver and Hydraulic
Can export readings and graphs to CSV and JSON format allowing for 3rd party software integration
Large capacity memory of 120 GB SSD storage
Fast CPU frequency up to 2.3 GHz and a 4GB RAM for smooth and seamless operation
2 USB Ports, RS-232 Serial Port and 2 independently configurable ancillary ports

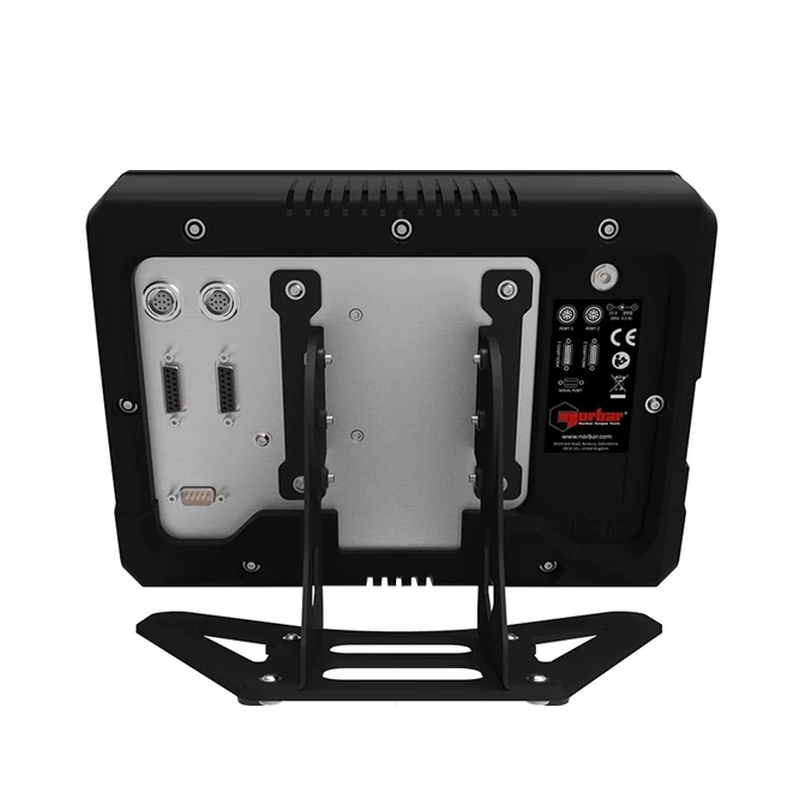

Rear panel features 100 mm x 100 mm VESA mounting holes
Features a 10.1″ multi-touch screen display with on-screen graphic icons
Supplied with an accredited calibration certificate

Description

T-Box 2

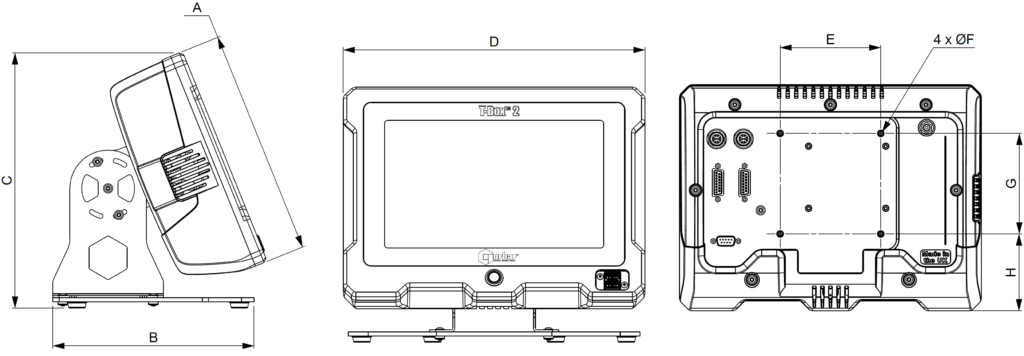

Model	Item	Weight (kg)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)
T-Box 2	43542	5,2	225	200	254	300	100

Brand

Norbar

Norbar Torque Tools

Based in 1942, English Norbar is a world leading manufacturer in torque measuring tools, hand torque wrenches and torque multipliers. Norbar has one of the most modern and largest manufacturing and product development units for torque tools and measuring equipment in the world. In addition, Norbar is the only manufacturer in the world to be able to offer a complete range of torque application tools and calibration services until up to 300.000 Nm. Haitor is a long-term partner of Norbar. Visit manufacturer's website >>
