Offset Links

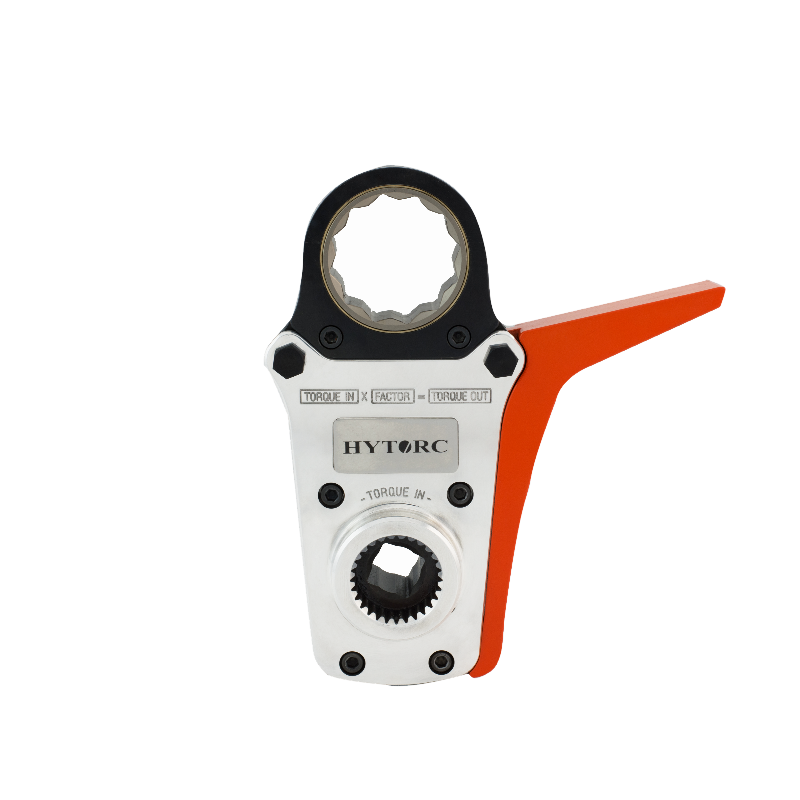

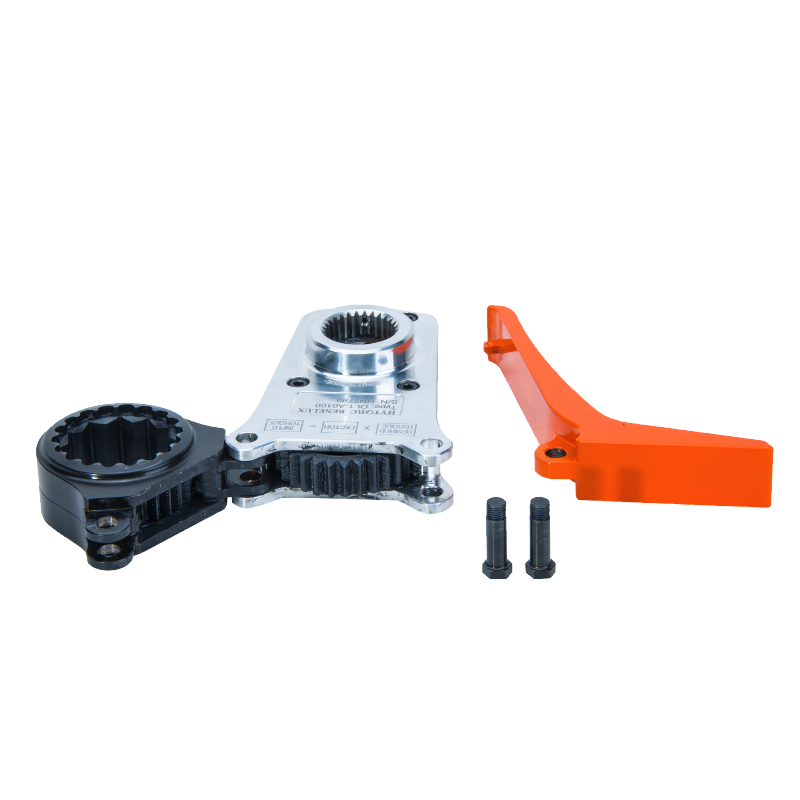

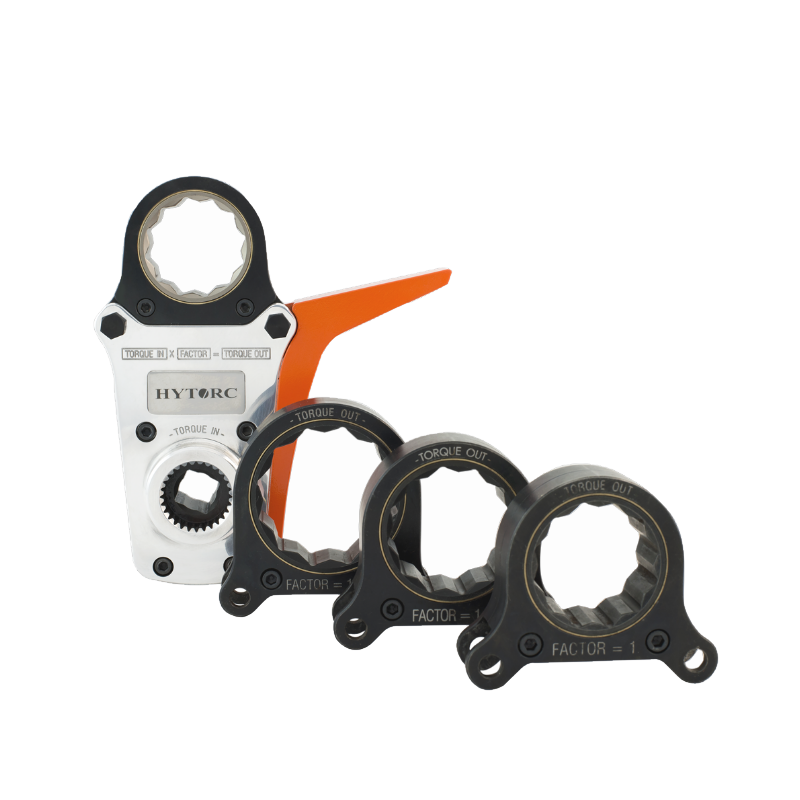

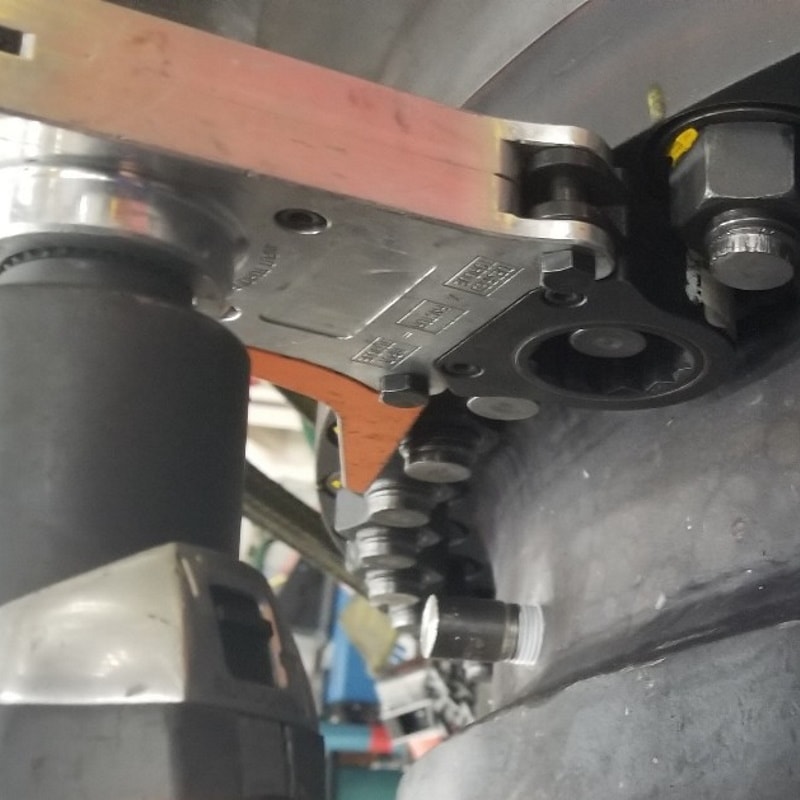

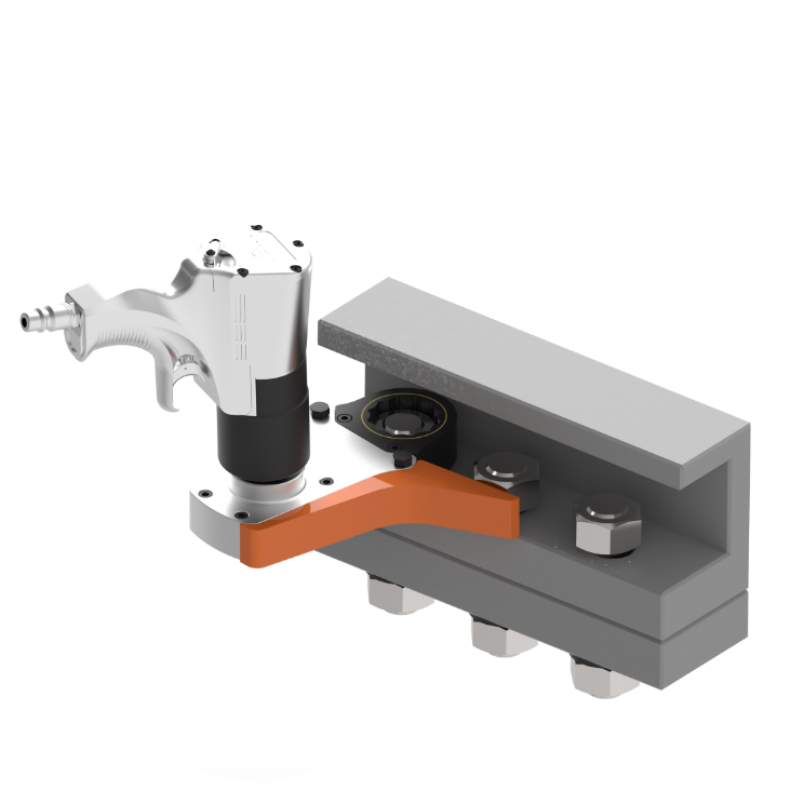

HYTORC Offset Links are ideal tools for situations where you require more flexibility from your tools. They allow for quick adaptation of your square drive tool to act as a ratchet link to easily fasten or remove nuts or bolts with limited height or deeply protruding threaded ends. The offset link consists of a fixed part onto which the square drive tool is attached, and an interchangeable part, which is the cartridge. Cartridges come in all sizes from 30 to 80 mm A/F nut size. The orange reaction arm is removable and can be omitted if necessary – for example when working with the Washer system.

HYTORC Offset is available for the following HYTORC products with a 3/4″ or a 1″ drive:

Hydraulic torque wrenches AVANTI & ICE
Pneumatic jGun wrenches
Battery-powered LITHIUM II wrenches and its previous models

Description

1/2” Drive (Fixed part: LOL1-A0100)

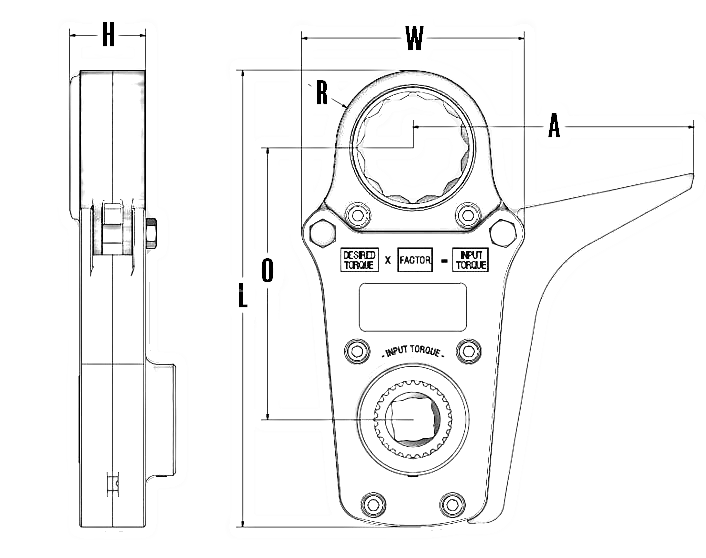

ITEM	Hex Size (mm)	Torque Ratio (mm)	H (mm)	W (mm)	L (mm)	R (mm)	O (mm)	A (mm)

3/4″ Drive (Fixed part: OL1-A0100)
ITEM	Hex Size (mm)	Torque Ratio (mm)	H (mm)	W (mm)	L (mm)	R (mm)	O (mm)	A (mm)
ZOL1-24MM	24	1,46	37	112	205	30	124	135,1
ZOL1-27MM	27	1,46	37	112	205	30	124	135,1
ZOL1-30MM	30	1,46	37	112	205	30	124	135,1
ZOL1-32MM	32	1,46	37	112	205	30	124	135,1
ZOL1-36MM	36	1,30	37	112	211	33	127	135,1
ZOL1-41MM	41	1,20	37	112	215	35	129	135,1
ZOL1-46MM	46	1,12	37	112	220	38	131	135,1
ZOL1-50MM	50	1,05	37	112	227	41	135	135,1
ZOL1-55MM	55	0,99	37	112	227	45	131	135,1
ZOL1-60MM	60	0,90	37	112	227	45	131	135,1
ZOL1-65MM	65	0,86	48	112	241	45	145	135,1

1” Drive (Fixed part: OL3-A0100)
ITEM	Hex Size (mm)	Torque Ratio (mm)	H (mm)	W (mm)	L (mm)	R (mm)	O (mm)	A (mm)
ZOL3-46MM	46	1,52	48	166	301	45	187	205
ZOL3-50MM	50	1,52	48	166	301	45	187	205
ZOL3-55MM	55	1,39	48	166	305	47	189	205
ZOL3-60MM	60	1,33	48	166	308	49	191	205
ZOL3-65MM	65	1,22	51	166	318	54	195	205
ZOL3-70MM	70	1,15	51	166	322	56	197	205
ZOL3-75MM	75	1,10	51	166	327	58	200	205
ZOL3-80MM	80	1,06	51	166	329	60	201	205
ZOL3-85MM	85	0,97	57	166	343	66	208	205
