Backup Wrenches

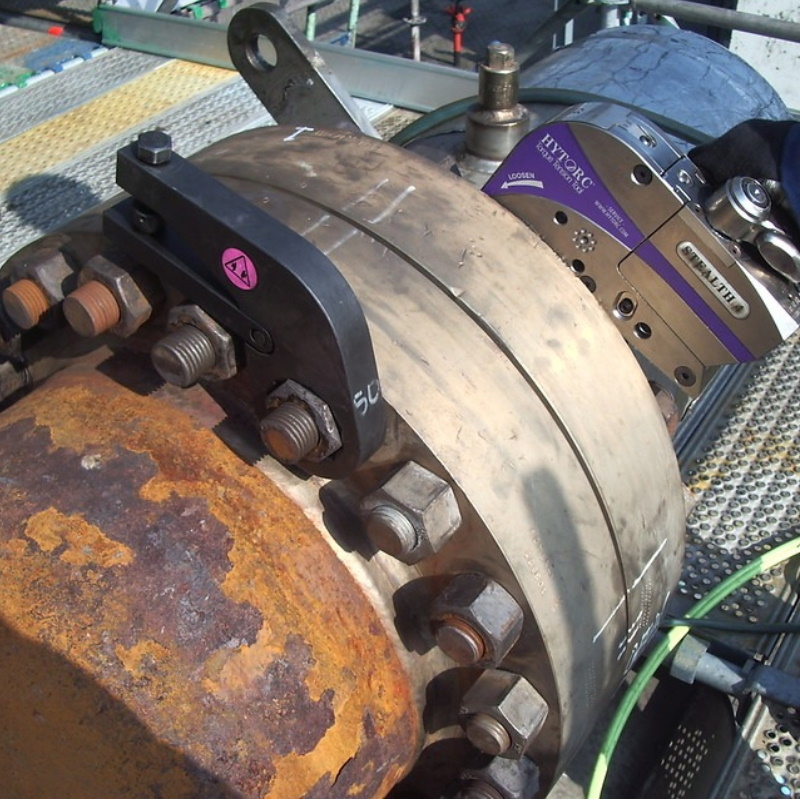

One of the most common injuries in industrial bolting is finger pinching with the reaction arm or the backup wrench. HYTORC Backup Wrenches reduce the risk of injury by providing a convenient hands-free solution to stop the counter-nut from turning. Magnetic locks allow the magnetic backup wrench to be quickly installed and held in place against the side of a steel application. With hydraulic backup wrenches the tension is released hydraulically, which means no hammer or open-end spanner is needed.

Both hydraulic and magnetic backup wrenches available

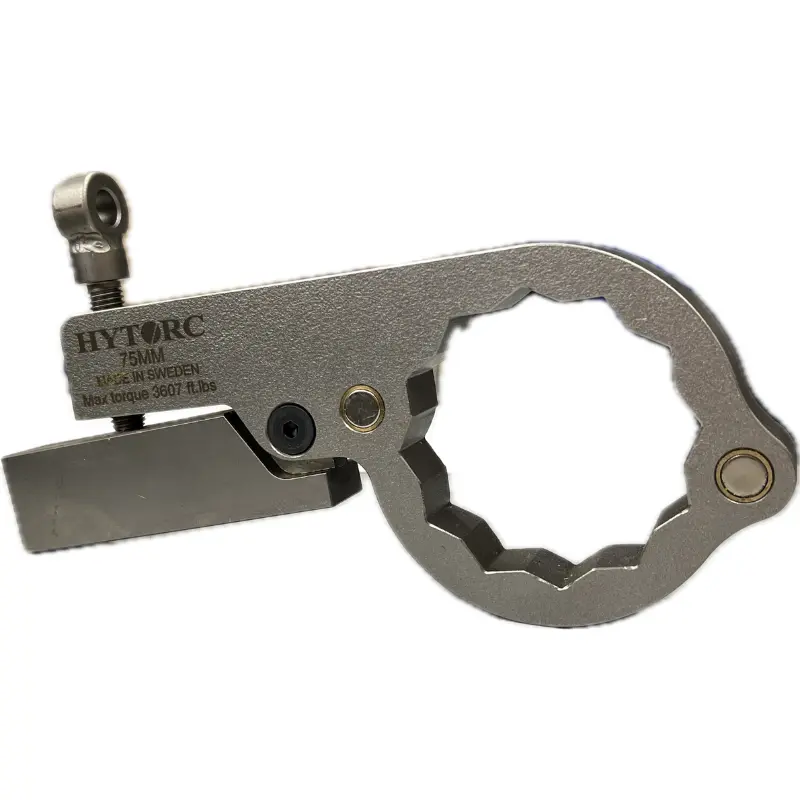

Magnetic backup wrenches are fitted with a suspension eye so that they can be used in combination with a safety cord.

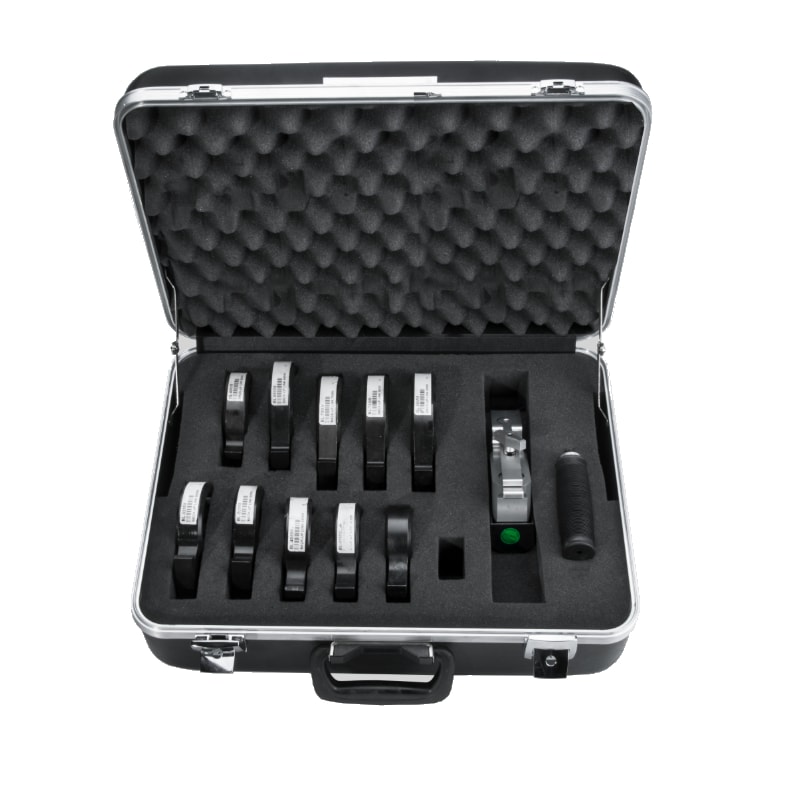

A wide range of interchangeable ratchet links from 27 mm to 80 mm can be used with the hydraulic back-up wrench

Description

Magnetic Backup Wrenches
ITEM	Hex Size (mm)	L1 (mm)	L2 (mm)	D (mm)	T (mm)	Weight (kg)
BWM-27MM	27	124	95,5	41	12	0,28
BWM-30MM	30	133	102,5	46	15	0,42
BWM-32MM	32	136	104,5	48	15	0,43
BWM-36MM	36	144	109,5	54	15	0,48
BWM-41MM	41	153	114,5	62	15	0,54
BWM-45MM	45	181	138,5	68	20	0,97
BWM-46MM	46	181	138,5	68	20	0,97
BWM-50MM	50	188	141,5	75	20	1,06
BWM-55MM	55	193	144,5	80	20	1,09
BWM-60MM	60	199	147,5	86	20	1,14
BWM-63MM	63	222	163,5	96	20	1,53
BWM-65MM	65	222	163,5	96	20	1,53
BWM-70MM	70	249	186,5	102	25	2,38
BWM-75MM	75	256	189,5	110	25	2,52
BWM-80MM	80	264	193,5	118	25	2,7
BWM-85MM	85	288	214	124	30	3,97
BWM-90MM	90	312	235	130	30	4,46
BWM-95MM	95	322	240	140	30	4,83
BWM-100MM	100	360	270	150	40	7,96
BWM-105MM	105	365	273	155	40	8,1
BWM-110MM	110	380	285	162	40	9,09
BWM-115MM	115	388	289	170	40	9,49
BWM-120MM	120	395	292	177	40	9,89

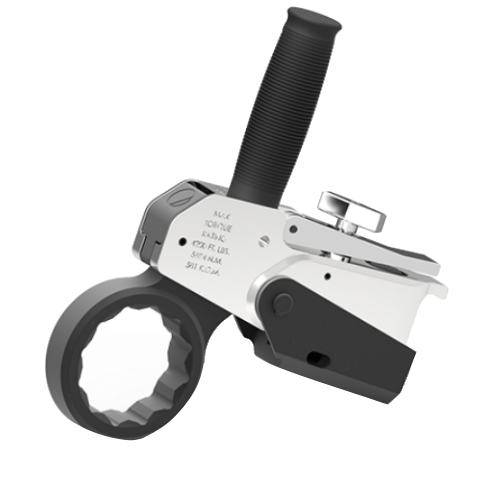

Hydraulic Backup Wrenches
ITEM	Hex Size (mm)
BWCY-4	Fixed Part
BL-27MM	27
BL-30MM	30
BL-32MM	32
BL-36MM	36
BL-41MM	41
BL-46MM	46
BL-50MM	50
BL-55MM	55
BL-60MM	60
BL-65MM	65
BL-70MM	70
BL-75MM	75
BL-80MM	80
BL-85MM	85
BL-90MM	90
