Double acting aluminium cylinders

HDU series

The double acting aluminium hydraulic cylinder is a great solution for industrial applications. The aluminium cylinder plunger are corrosion protected, which increases the cylinder’s lifetime. The range covers a lifting capacity of 20-30 ton and a pulling capacity of 13-17 ton. An overflow port helps reducing possibility to overrun the cylinder.

Lightweight aluminium cylinder body
Up to 60% lighter than the equivalent steel cylinder
Corrosion-protected piston
Steel protection plate at the bottom of the cylinder
Maximum working pressure 700 bar

Description

Push capacity: 20 ton (218 kN), pull capacity: 13 ton (128 kN)
Item	Stroke (mm)	Min. Height (mm)	Outside Ø (mm)	Push Oil Capacity (cc)	Pull Oil Capacity (cc)	Push Effective Area (cm2)	Pull Effective Area (cm2)	Weight (kg)
HDU2002	50	189	113	156	93	31	19	5.7
HDU2004	100	239	113	312	186	31	19	6.9

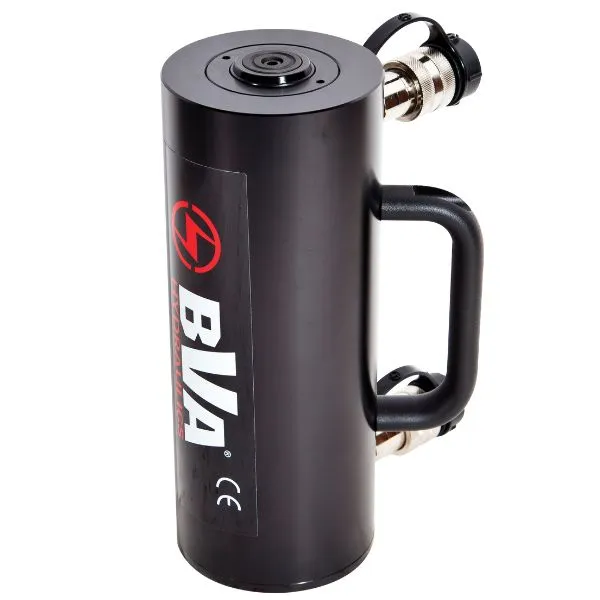

HDU2006	150	289	113	468	279	31	19	8

Push capacity: 30 ton (303 kN), pull capacity: 17 ton (168 kN)
Item	Stroke (mm)	Min. Height (mm)	Outside Ø (mm)	Push Oil Capacity (cc)	Pull Oil Capacity (cc)	Push Effective Area (cm2)	Pull Effective Area (cm2)	Weight (kg)

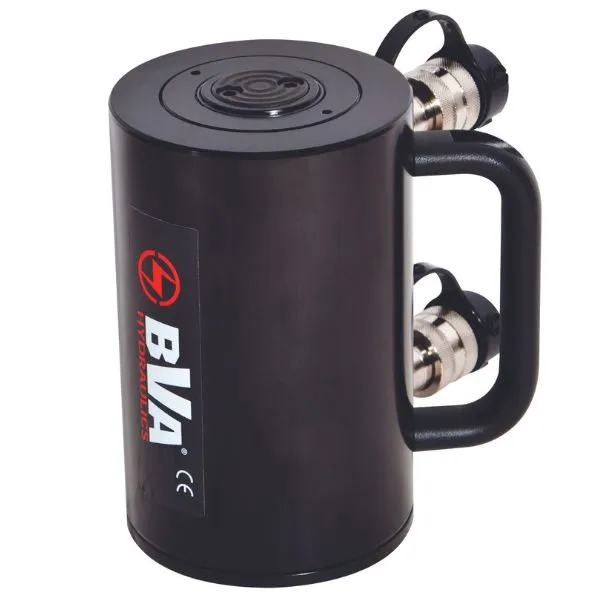

HDU3002	50	201	125	221	123	44	25	7.6
HDU3004	100	251	125	442	240	44	25	9
HDU3006	150	301	125	663	368	44	25	10.4

Brand

BVA Hydraulics

BVA Hydraulics

BVA Hydraulics is a highly valued manufacturer of hydraulic cylinders, hydraulic units and other cylinder-based tools for industrial use. Focusing on customer service, product innovation and a worldwide stocking program, BVA has become a solutions provider to the global industrial hydraulic cylinder markets. Dependable and reliable performance are all backed up by one of the industry’s best warranties. Visit manufacturer's website >>
