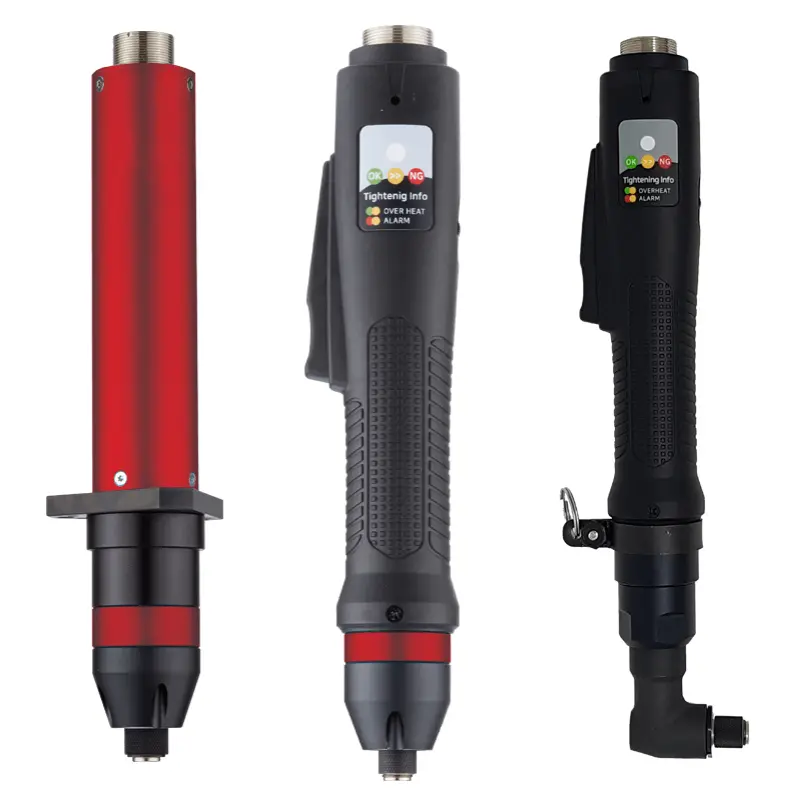

Transducer controlled screwdrivers

Doga’s transducer controlled screwdrivers offer top-level precision and reliability for industrial fastening needs. These screwdrivers seamlessly manage torque and angle, ensuring dependable connections throughout every stage of production.

Built-in torque sensor
Digital torque and angle adjustment
Up to 15 tightening programs and 2 multi-step sequence programs
User-friendly touchscreen controller
Paramon software for real-time tightening monitoring
Versatile communication (RS232C, Ethernet)
Error diagnosis with code display
Fast and accurate torque analysis
Long lifespan: over 5 million cycles
ESD protection and easy installation

Description

Transducer controlled fixtured spindles
Model	Torque Range Nm	Free Speed rpm	Drive	Wright kg	Item
MDTA3204-A	0,4 – 4,5	100 – 1 800	1/4″ QC	1,07	4-1055257

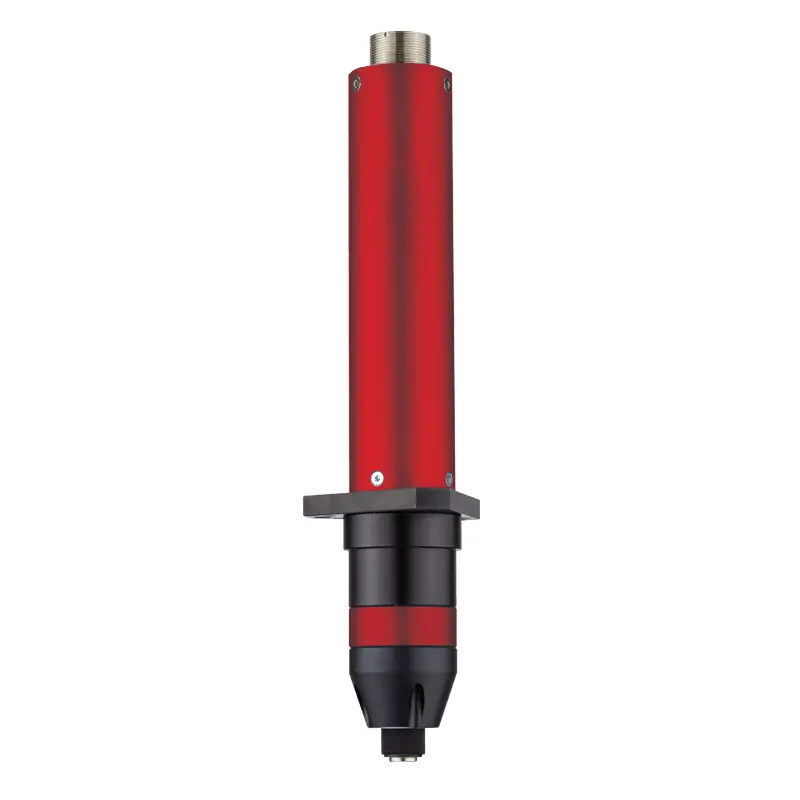

MDTA3206-A	0,6 – 6,5	100 – 1 250	1/4″ QC	1,07	4-1055258
MDTA3211-A	1,5 – 11,5	50 – 690	1/4″ QC	1,17	4-1055259
MDTA3216-A	2 – 16	50 – 470	1/4″ QC	1,18	4-1055260
MDTA3224-Q 3/8	4 – 24	50 – 310	3/8″ QS	1,21	4-1055261
MDTA3236-Q 3/8	5 – 33	50 – 200	3/8″ QS	1,21	4-1055262
MDTA3245-Q 3/8	6 – 40	50 – 160	3/8″ QS	1,29	4-1055263
MDTA3264-Q 3/8	8 – 57	50 – 115	3/8″ QS	1,29	4-1055264

Straight screwdrivers
Model	Torque Range Nm	Free Speed rpm	Drive	Wright kg	Item
MDT2064-A	0,2 -1,4	150 – 1 500	1/4″ QC	0,54	4-1055213
MDT2611-A	0,4 – 3,4	100 – 900	1/4″ QC	0,56	4-1055214
MDT2616-A	0,5 – 5	100 – 620	1/4″ QC	0,56	4-1055215

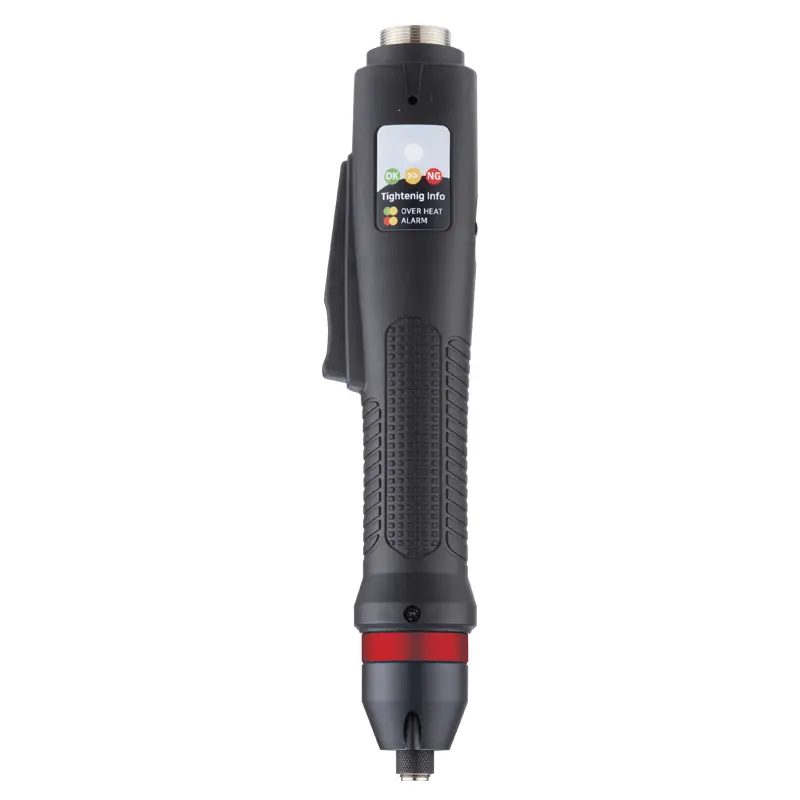

MDT3204-A	0,4 – 4,5	100 – 1 800	1/4″ QC	0,83	4-1055216
MDT3206-A/L	0,6 – 6,5	100 – 1250	1/4″ QC	0,92	4-1055217
MDT3211-A/L	1,5 – 11,5	50 – 690	1/4″ QC	0,92	4-1055218
MDT3216-A/L	2 – 16	50 – 470	1/4″ QC	1,00	4-1055219
MDT3220-Q/L 3/8	3 – 20	50 – 375	3/8″ SQ	1,00	4-1055220
MDT3224-Q/L 3/8	4 – 24	50 – 310	3/8″ SQ	1,00	4-1055221
MDT3236-Q/L 3/8	5 – 33	50 – 200	3/8″ SQ	1,01	4-1055222
MDT3245-Q/L 3/8	6 – 40	50 – 160	3/8″ SQ	1,08	4-1055223
MDT3264-Q/L 3/8	8 – 57	50 – 115	3/8″ SQ	1,09	4-1055224

Angle screwdrivers
Model	Torque Range Nm	Free Speed rpm	Drive	Wright kg	Item
MDTH2604-A	0,2 – 1,4	150 – 1 500	1/4″ QC	0,90	4-155241
MDTH2611-A	0,4 – 3,4	100 – 900	1/4″ QC	0,92	4-155242

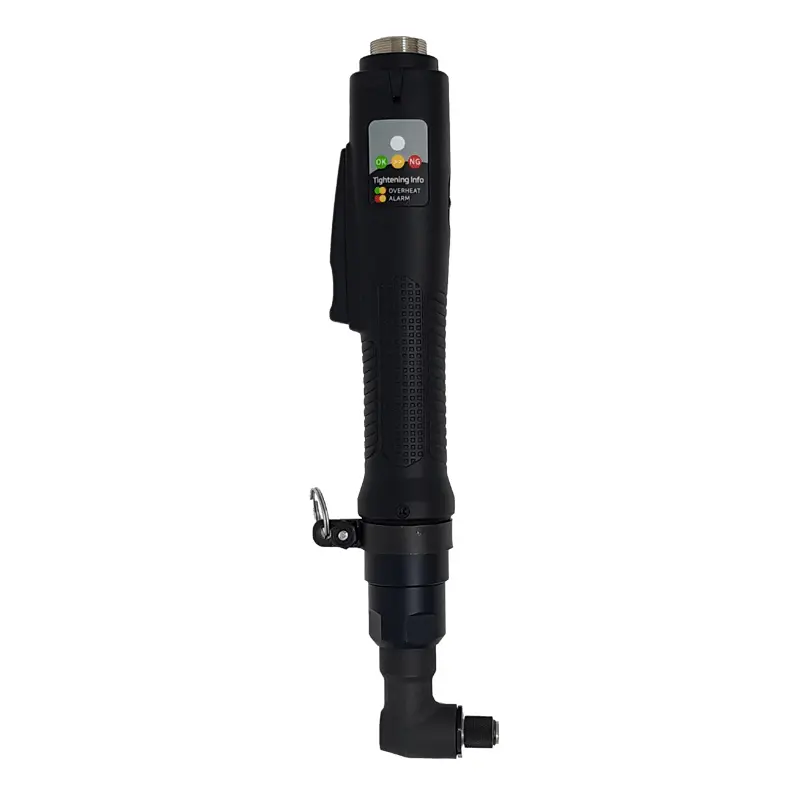

MDTH2616-A	0,5 – 5	100 – 620	1/4″ QC	0,92	4-155243
MDTH2628-A	1,8 – 8	50 – 300	1/4″ QC	0,92	4-155244
MDTH3204-A	0,4 – 4,5	100 – 1 800	1/4″ QC	1,27	4-155245
MDTH3206-A/L	0,6 – 6,5	100 – 1 250	1/4″ QC	1,34	4-155246
MDTH3206-Q/L 3/8	0,6 – 6,5	100 – 1250	3/8″ SQ	1,34	4-155247
MDTH3211-A/L	1,5 – 11,5	50 – 690	1/4″ QC	1,44	4-155248
MDTH3211-Q/L 3/8	1,5 – 11,5	50 – 690	3/8″ SQ	1,44	4-155249
MDTH3216-A/L	2 – 16	50 – 470	1/4″ QC	1,45	4-155250
MDTH3216-Q/L 3/8	2 – 16	50 – 470	3/8″ SQ	1,45	4-155251
MDTH3220-Q/L 3/8	3 – 20	50 – 375	3/8″ SQ	1,46	4-155252
MDTH3224-Q/L 3/8	4 – 24	50 – 310	3/8″ SQ	1,47	4-155253
MDTH3236-Q/L 3/8	5 – 33	50 – 200	3/8″ SQ	1,47	4-155254
MDTH3245-Q/L 3/8	6 – 40	50 – 160	3/8″ SQ	1,55	4-155255
MDTH3264-Q/L 3/5	8 – 57	50 – 115	3/8″ SQ	1,55	4-155256

Pistol screwdrivers
Model	Torque Range Nm	Free Speed rpm	Drive	Wright kg	Item

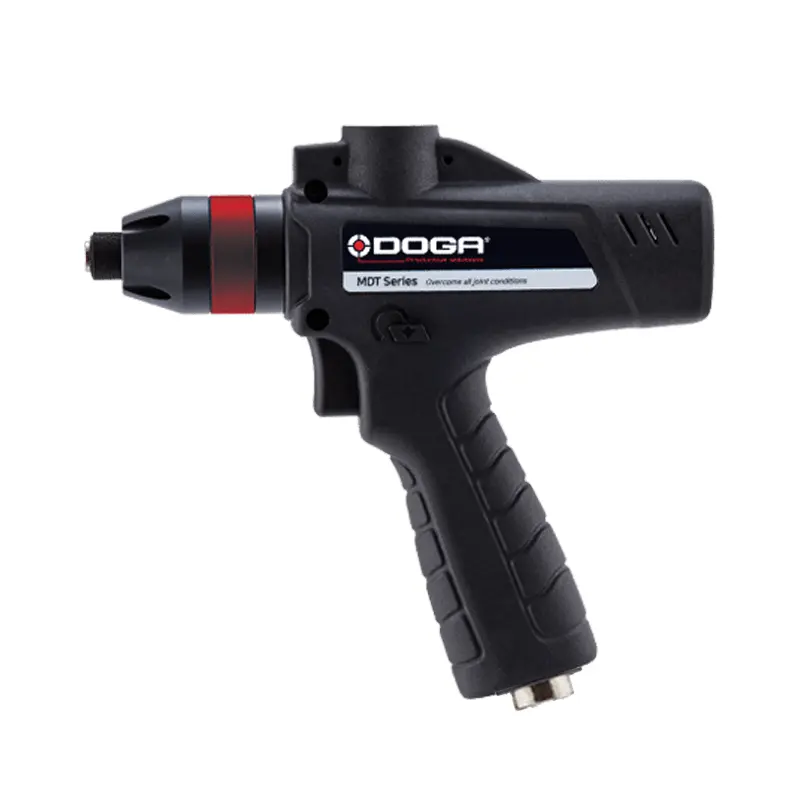

MDTP3204-A/D	0,4 – 4,5	100 – 1 800	1/4″ QC	0,99	4-1055225
MDTP3206-A/D	0,6 – 6,5	100 – 1 250	1/4″ QC	0,99	4-1055226
MDTP3211-A/D	1,5 – 11,5	50 – 690	1/4″ QC	1,06	4-1055227
MDTP3216-A/D	2 – 16	50 – 470	1/4″ QC	1,07	4-1055228
MDTP3224-Q/D 3/8	4 – 24	50 – 310	3/8″ SQ	1,07	4-1055229
MDTP3236-Q/D 3/8	5 – 33	50 – 200	3/8″ SQ	1,08	4-1055230
MDTP3245-Q/D 3/8	6 – 40	50 – 160	3/8″ SQ	1,15	4-1055231
MDTP3264-Q/D 3/8	8 – 57	50 – 115	3/8″ SQ	1,20	4-1055232
MDTP3204-A/U	0,4 – 4,5	100 – 1 800	1/4″ QC	0,99	4-1055233
MDTP3206-A/U	0,6 – 6,5	100 – 1250	1/4″ QC	0,99	4-1055234
MDTP3211-A/U	1,5 – 11,5	50 – 690	1/4″ QC	1,06	4-1055235
MDTP3216-A/U	2 – 16	50 – 470	1/4″ QC	1,07	4-1055236
MDTP3224-Q/U 3/8	4 – 24	50 – 310	3/8″ SQ	1,07	4-1055237
MDTP3236-Q/U 3/8	5 – 33	50 – 200	3/8″ SQ	1,08	4-1055238
MDTP3245-Q/U 3/8	6 – 40	50 – 160	3/8″ SQ	1,15	4-1055239
MDTP3264-Q/U 3/8	8 – 57	50 – 115	3/8″ SQ	1,20	4-1055240

Brand

DOGA

DOGA

French screwdriver manufacturer DOGA has more than 70 years of solid experience as a reliable partner for companies in the electronics industry. The company's advanced DC and current-controlled screwdrivers cover models from a few newton meters to very small options of even 0.04 Nm. In addition to its versatile range of screwdrivers and torque arms, DOGA is also particularly valued for its first-class and customer-oriented service. Visit manufacturer's website >>
