Linear & Articulated Torque Reaction Arms

Designed to be easily installed on your work surfaces, DOGA BA arms are available in linear and articulated types to better adapt to each of your tightening operations. Compact, robust and versatile thanks to numerous options, BA arms guarantee perfect torque recovery, optimized tightening perpendicularity and unparalleled comfort.

The arms can be designed completely according to the requirements of work station
Wide range of accessories available such as pneumatic locks, rail interfaces and balancing kits
Linear models can withstand up to 16 kg of load

Description

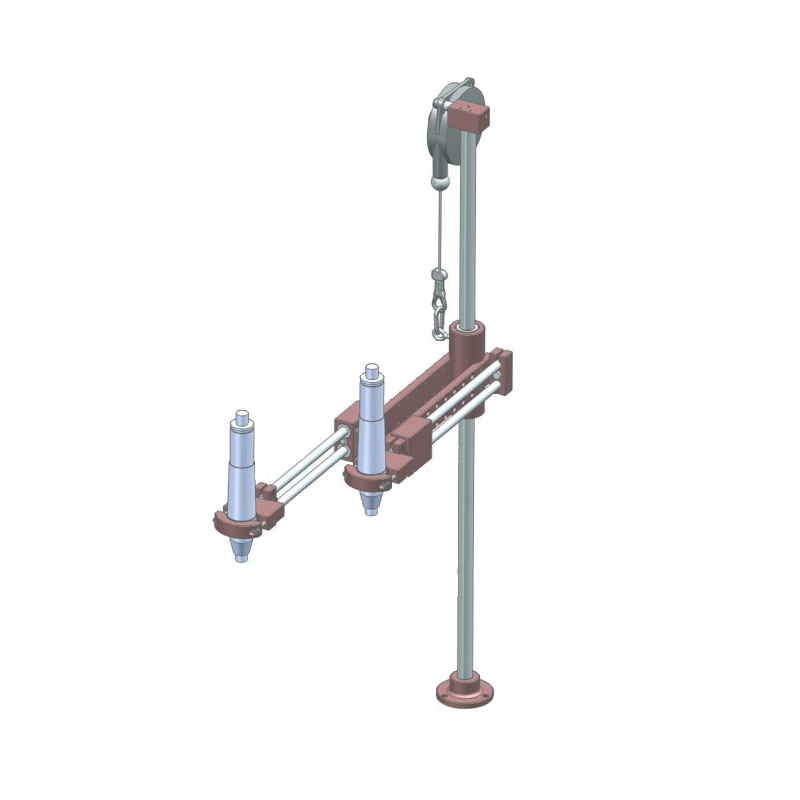

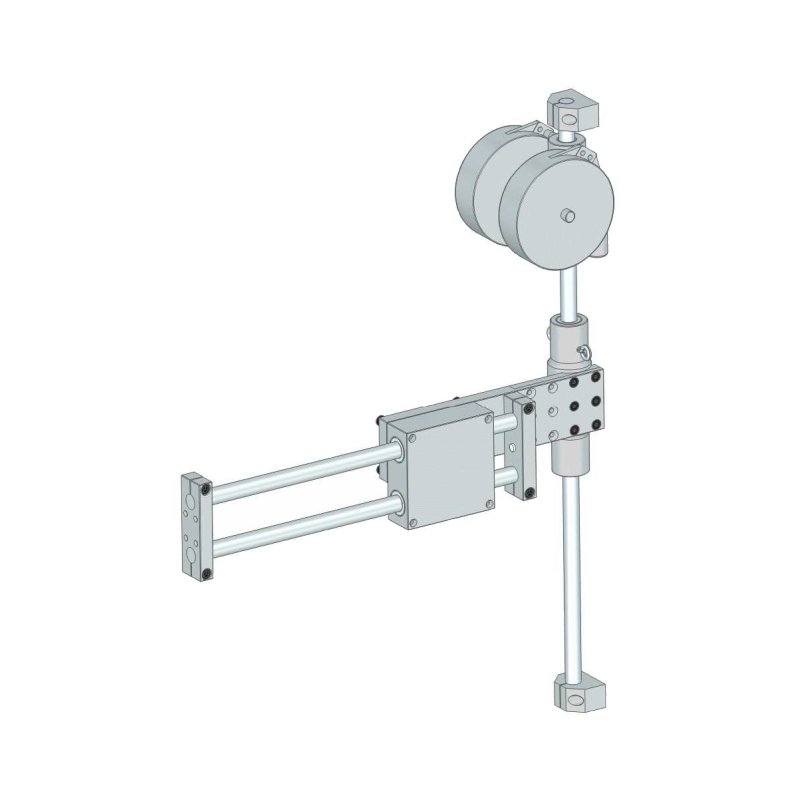

Linear Torque Reaction Arms
Torque Arm	Max. Torque (Nm)	Tool Ø (mm)	Stroke (mm)	Max. Load (kg)	Item
BA 5	5	25 – 42	200	0,9	4-5200085
BA 12	12	27 – 50	225	1,2	4-5201000
BA 12T	12	27 – 50	225	2	4-5200823
BA 25	25	28 – 52	250	2,2	4-5200076
BA 25T	25	28 – 52	250	3	4-5200721
BA 40	40	28 – 52	295	2,2 / 4*	4-5200067
BA 40T	40	28 – 52	295	4	4-5200825
BA 100	100	28 – 52	330	3,5 / 6*	4-5200068
BA 100T	100	28 – 52	330	6	4-5283105
BA 200	200	without clamp and floor post	345	8	4-5201092
BA 400	400	without clamp and floor post	400	12	4-5201093
BA 1000	1000	without clamp and floor post	400	16	4-5201094

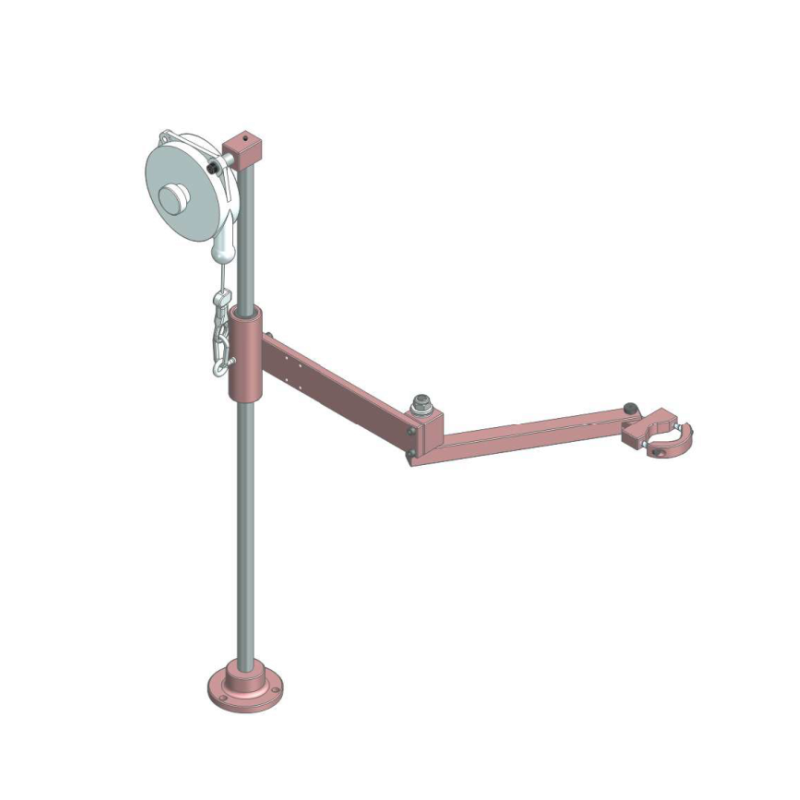

Articulated Torque Reaction Arms
Torque Arm	Max. Torque (Nm)	Tool Ø (mm)	Max. Radius (mm)	Max. Load (kg)	Item
BA LR	–	25 – 42	450	0,9	4-5200826
BA 5 R	5	25 – 42	420	0,9	4-5200098
BA 12 R	12	27 – 50	450	1,2	4-5201001
BA 12 R	12	27 – 50	600	1,2	4-5201002
BA 25 R	25	28 – 52	445	2,2	4-5200070
BA 25 R	25	28 – 52	600	2,2	4-5200274
BA 25 R	25	28 – 52	800	2,2	4-5200275
BA 40 R	40	28 – 52	630	2,2 / 4*	4-5200071
BA 40 R	40	28 – 52	800	2,2 / 4*	4-5200276
BA 40 R	40	28 – 52	1 000	2,2	4-5200277
BA 100 R	100	28 – 52	715	3,5 / 6*	4-5200072
BA 100 R	100	28 – 52	900	3,5 / 6*	4-5200278
BA 100 R	100	28 – 52	1 100	3,5	4-5200279

*) With additional balancer 4-5200143.
