Current Controlled Nutrunners

Doga’s current controlled nutrunners combine ergonomics, precision, and practicality. The lightweight design and powerful motor deliver high repeatability within a torque range of 0.1–49,1 Nm. Wireless connectivity and a clear color display make this tool a reliable partner for industrial fastening tasks.

Light weight and balanced design
15 presets and 2 multi-step programs
Wi-Fi connectivity and multiple communication protocols
Automatic speed adjustment based on torque
Programmable directly from nutrunner, ParaMon software or via the network

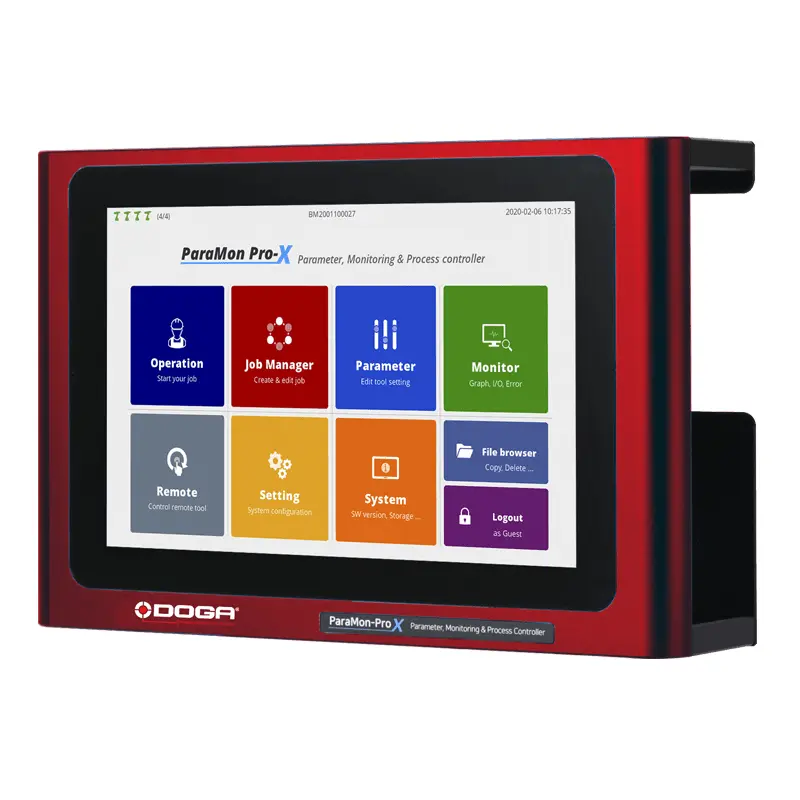

Connect up to 8 nutrunners to the ParaMon-Pro X controller
Available with 1D and 2D barcode reader

Description

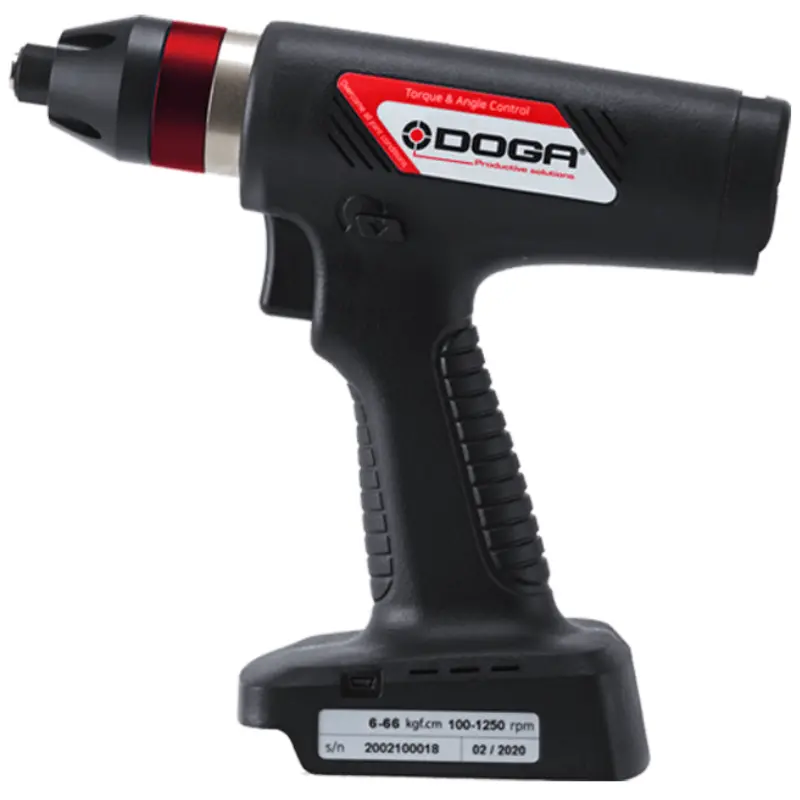

Pistol model
Model	Torque range Nm	Free Speed rpm	Drive	Weight kg*	Lenght mm	Item
BM3201-A	0.1 – 1.2	100 – 2 000	1/4″ QC	0.9	192	P113269
BM3202-A	0.2 – 2.2	100 – 2 000	1/4″ QC	0.9	192	P107054
BM3204-A	0.4 – 4.4	100 – 1 800	1/4″ QC	1	205	P105789
BM3206-A	0.6 – 6.4	100 – 1 250	1/4″ QC	1.1	212	P102027
BM3211-A	1.5 – 11.3	50 – 690	1/4″ QC	1.1	217	P104366
BM3216-A	2 – 15.7	50 – 470	1/4″ QC	1.1	217	P103895
BM3224-A	3.9 – 23.5	50 – 310	1/4″ QC	1.1	227	P137296
BM3224-Q 3/8	3.9 – 23.5	50 – 310	3/8″ SQ	1.1	227	P116809

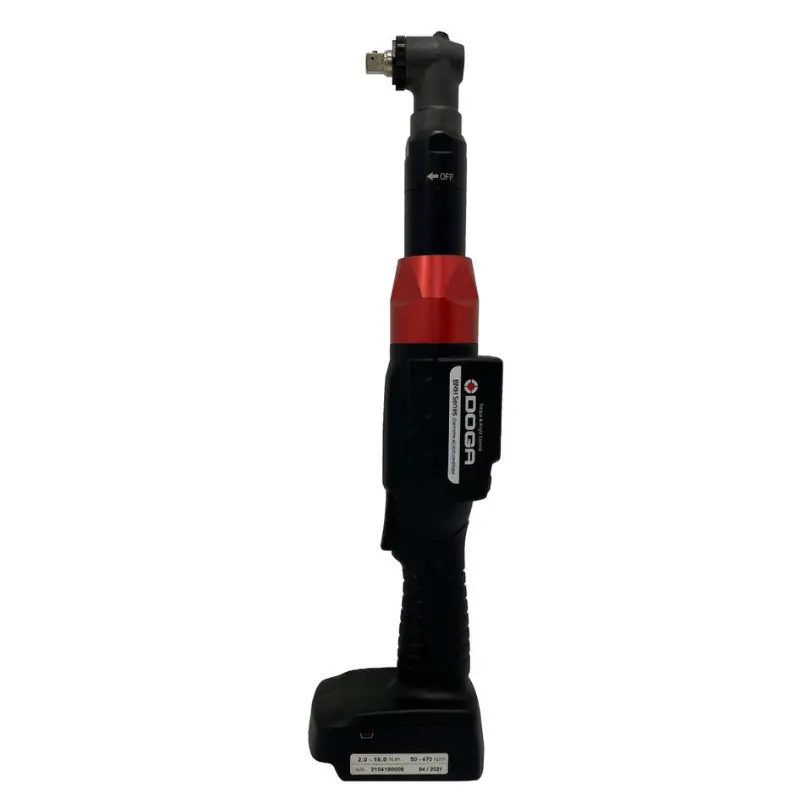

Right Angle Nutrunners
Model	Torque Range Nm	Free Speed rpm	Drive	Weight kg*	Length mm	Height mm	Item
BMH3204-A	0.4 – 4.4	100 – 1 800	1/4″ QC	1.4	465	62	P113281
BMH3204-Q 3/8	0.4 – 4.4	100 – 1 800	3/8″ SQ	1.4	465	57	P109173
BMH3206-A	0.8 – 6.4	100 – 1 250	1/4″ QC	1.4	465	62	P109169
BMH3206-Q 3/8	0.8 – 6.4	100 – 1 250	3/8″ SQ	1.4	465	57	P137293
BMH3211-A	1.5 – 11.3	50 – 690	1/4″ QC	1.6	479	62	P137291
BMH3211-Q 3/8	1.5 – 11.3	50 – 690	3/8″ SQ	1.6	479	57	P116808
BMH3216-A	2 – 15.7	50 – 470	1/4″ QC	1.6	479	62	P109717
BMH3216-Q 3/8	2 – 15.7	50 – 470	3/8″ SQ	1.6	479	57	P105795
BMH3224-A	3.9 – 23.5	50 – 310	1/4″ QC	1.6	479	62	P137292
BMH3224-Q 3/8	3.9 – 23.5	50 – 310	3/8″ SQ	1.6	479	57	P103897
BMH3236-Q 3/8	4.9 – 31.4	50 – 200	3/8″ SQ	1.7	493	63	P113327
BMH3245-Q 3/8	5.9 – 39.2	50 – 160	3/8″ SQ	1.7	508	63	P104368
BMH3245-Q 1/2	5.9 – 39.2	50 – 160	1/2″ SQ	1.7	508	67	P137294
BMH3264-Q 3/8	7.8 – 49.1	50 – 115	3/8″ SQ	1.9	508	63	P104997
BMH3264-Q 1/2	7.8 – 49.1	50 – 115	1/2″ SQ	1.9	508	67	P137295

*) Without battery

Brand

DOGA

DOGA

French screwdriver manufacturer DOGA has more than 70 years of solid experience as a reliable partner for companies in the electronics industry. The company's advanced DC and current-controlled screwdrivers cover models from a few newton meters to very small options of even 0.04 Nm. In addition to its versatile range of screwdrivers and torque arms, DOGA is also particularly valued for its first-class and customer-oriented service. Visit manufacturer's website >>
