Carbon Fiber Telescopic Torque Reaction Arms

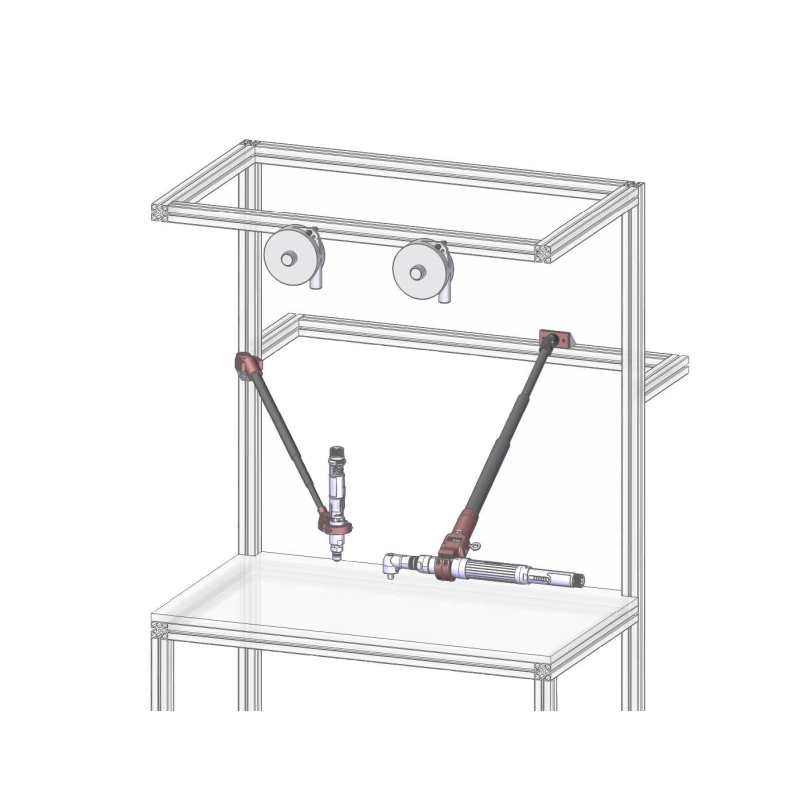

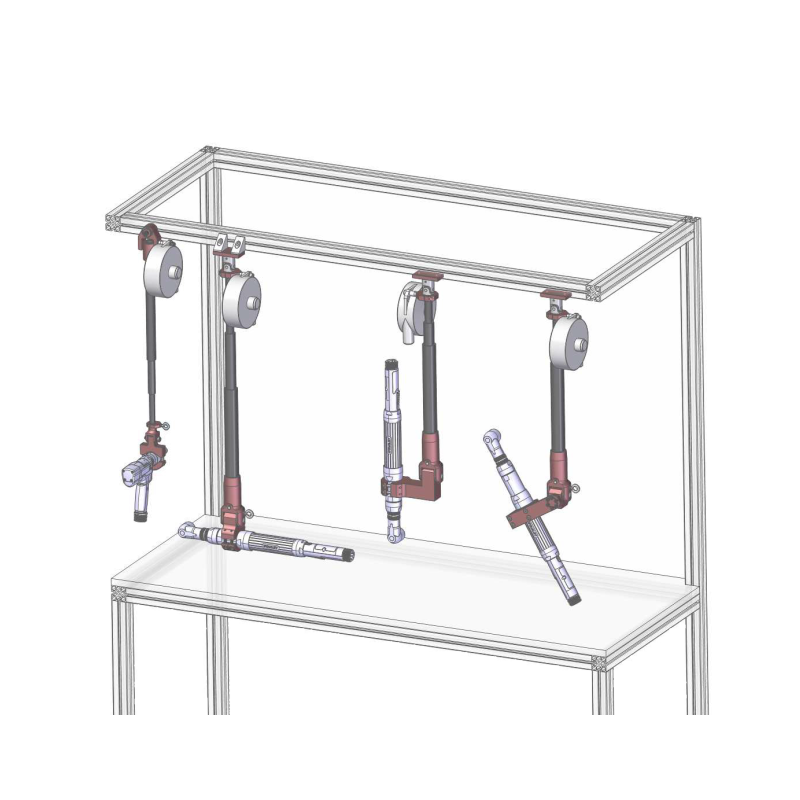

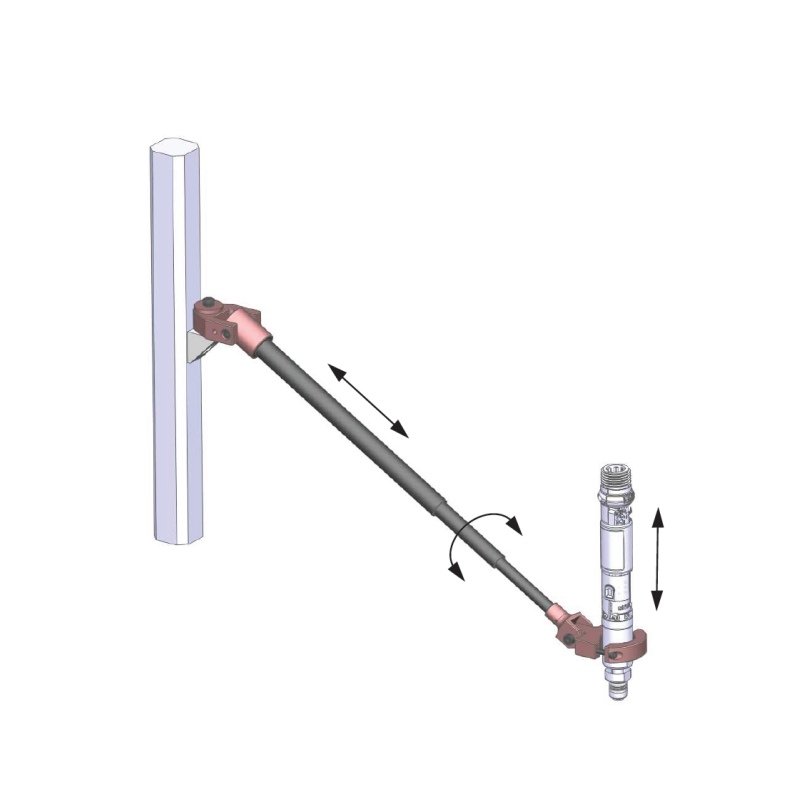

Carbon fiber engineered, DMF telescopic arms have an unequaled weight / robustness / compactness ratio. As easy to install on existing assembly line rails, they do not disrupt the workflow. Versatile, they allow multi-directional tightening up to 500 Nm, with extreme comfort, thanks to the fluidity of their telescopic geometry.

The arms can be designed completely according to the requirements of work station
Wide range of accessories available such as pneumatic locks, rail interfaces and balancing kits
Long last living and maintenance free thanks to the carbon fiber

Description

Standard Stroke
Torque Arm	Max. Torque (Nm)	Standard Clamp	Tool Ø (mm)	Min. Lenght (mm)	Max. Lenght (mm)	Part No. Without Clamp	Part No. With Clamp
DMF 5/950	5	P1	25 – 42	460	950	–	4-5300445
DMF 12/950	12	P1	27 – 50	460	950	–	4-5301004
DMF 12/1500	12	P1	27 – 50	650	1 500	–	4-5301005
DMF 12/2000	12	P1	27 – 50	820	2 000	–	4-5301006
DMF 30/960	30	P1	28 – 52	475	960	4-5344000	4-5300074
DMF 30/1500	30	P1	28 – 52	656	1 500	4-5344001	4-5300282
DMF 30/2000	30	P1	28 – 52	823	2 000	4-5344002	4-5300283
DMF 30/2500	30	P1	28 – 52	993	2 500	4-5344003	4-5300284
DMF 30/3000	30	P1	28 – 52	1 321	3 000	4-5300813	4-5300818
DMFi 70/1500	70	P2	35 – 52	667	1 500	4-5344004	4-5344020
DMFi 70/2000	70	P2	35 – 52	833	2 000	4-5344005	4-5344021
DMFi 70/2500	70	P2	35 – 52	1 000	2 500	4-5344006	4-5344022
DMFi 70/3000	70	P2	35 – 52	1 330	3 000	4-5300814	4-5300819
DMFi 120/1500	120	P2	35 – 52	691	1 500	4-5344007	4-5344023
DMFi 120/2000	120	P2	35 – 52	857	2 000	4-5344008	4-5344024
DMFi 120/2500	120	P2	35 – 52	1 023	2 500	4-5344009	4-5344025
DMFi 120/3000	120	P2	35 – 52	1 347	3 000	4-5300815	4-5300820
DMFi 200/1500	200	P2	Max 63	920	1 500	4-5344050	4-5344026
DMFi 200/2000	200	P2	Max 63	1 170	2 000	4-5344051	4-5344027
DMFi 200/2500	200	P2	Max 63	1 420	2 500	4-5344052	4-5344028
DMFi 200/3000	200	P2	Max 63	1 720	3 000	4-5300816	4-5300821
DMFi 300/1500	300	P2	Max 73	970	1 500	4-5344053	4-5344029
DMFi 300/2000	300	P2	Max 73	1 220	2 000	4-5344054	4-5344030
DMFi 300/2500	300	P2	Max 73	1 470	2 500	4-5344055	4-5344031
DMFi 300/3000	300	P2	Max 73	1 800	3 000	4-5300817	4-5300822

Long Stroke
Torque Arm	Max. Torque (Nm)	Standard Clamp	Tool Ø (mm)	Min. Lenght (mm)	Max. Lenght (mm)	Part No. Without Clamp	Part No. With Clamp
DMF 30/1500 LS	30	P1	28 – 52	555	1 500	4-5300852	4-5300855
DMF 30/2000 LS	30	P1	28 – 52	680	2 000	4-5300853	4-5300856
DMF 30/2500 LS	30	P1	28 – 52	805	2 500	4-5300854	4-5300857
DMFi 100/1500 LS	100	P2	35 – 52	592	1 500	4-5301213	4-5301221
DMFi 100/2000 LS	100	P2	35 – 52	717	2 000	4-5301214	4-5301222
DMFi 100/2500 LS	100	P2	35 – 52	842	2 500	4-5301215	4-5301223
DMFi 200/1500 LS	200	P2	Max 63	728	1 500	4-5301216	4-5301224
DMFi 200/2000 LS	200	P2	Max 63	894	2 000	4-5301217	4-5301225
DMFi 200/2500 LS	200	P2	Max 63	1 060	2 500	4-5301220	4-5301226
