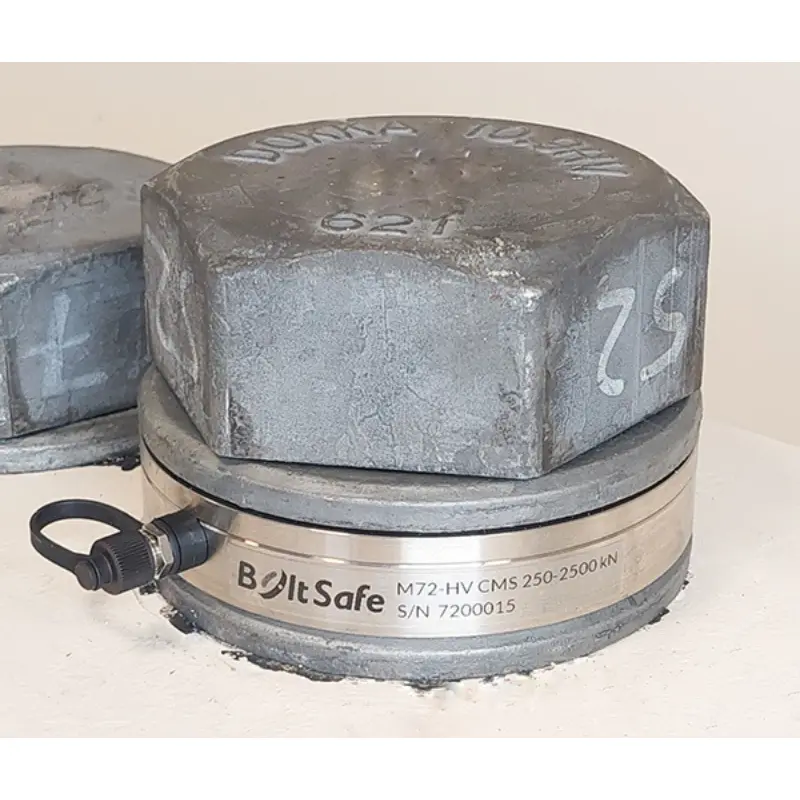

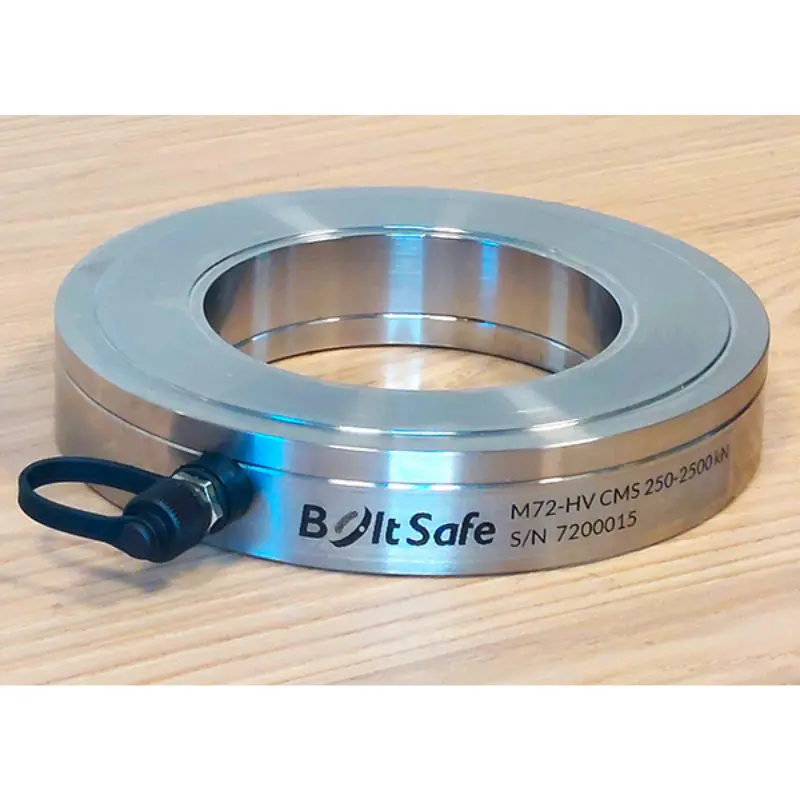

CMS-NC Bolt Load Sensor

PERIODIC MONITORING SYSTEM

The BoltSafe CMS-NC load sensor is designed to measure and monitor the actual load on bolted joints. The CMS-NC allows periodic load monitoring from a single connection point without a permanent cable, reducing the risk of cable damage in challenging industrial environments. The load sensors are available in a wide range of sizes and can withstand harsh environments such as oil, seawater and temperatures from -40°C to 80°C. The CMS-NC load sensor provides accurate and reliable load monitoring, improving safety and ensuring the reliability of connections.

  • Great option for tight spaces
  • Quick readout
  • Designed for challenging conditions and temperatures from -40 ° C to 80 ° C



More from BoltSafe >>

Category:

Description

CMS-NC Sensor
Item Size Outside Ø (mm) Thickness (mm) Clamping Load Class 10.9 (kN) Steps (kN) Weight (kg)
BKS-M20-CMS-NC M20 37 14 166 2 73
BKS-M22-CMS-NC M22 40 14 208 2 85
BKS-M24-CMS-NC M24 44 14 239 2 104
BKS-M27-CMS-NC M27 50 14 315 3 137
BKS-M30-CMS-NC M30 64,3 17 385 5 214
BKS-M33-CMS-NC M33 68,4 17 480 5 218
BKS-M36-CMS-NC M36 72,8 17 560 5 295
BKS-M39-CMS-NC M39 78 17 670 5 300
BKS-M42-CMS-NC M42 83 20 772 5 445
BKS-M45-CMS-NC M45 87,6 20 905 10 506
BKS-M48-CMS-NC M48 92 20 1 018 10 591
BKS-M52-CMS-NC M52 97,2 20 1 221 10 669
BKS-M56-CMS-NC M56 102 20 1 408 15 798
BKS-M60-CMS-NC M60 108 23 1 647 20 1 083
BKS-M64-CMS-NC M64 114 23 1 794 20 1 196
BKS-M64-HV-CMS-NC M64HV 120 23 2 100 20 1 310
BKS-M72-CMS-NC M72 124 23 2 250 20 1 360
BKS-M72-HV-CMS-NC M72(HV) 124 23 2 500 20 1 370

Brand

BoltSafe

BoltSafe

BoltSafe measuring solutions can be used to measure the final tightening force on the bolted joint. They are widely suitable for a variety of industries and due to their compact design, the sensors usually fit easily into any job site. In the product list, special emphasis has been placed on ease of use and the accuracy of measurement results. Visit manufacturer's website >>

Product Sheet

Product Sheet (In Finnish) [PDF]
