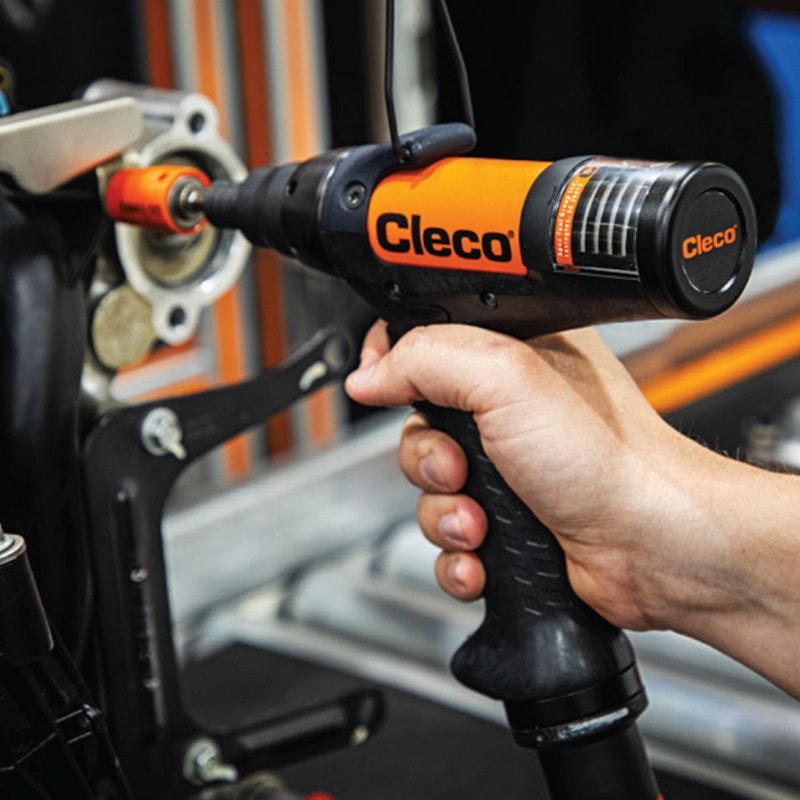

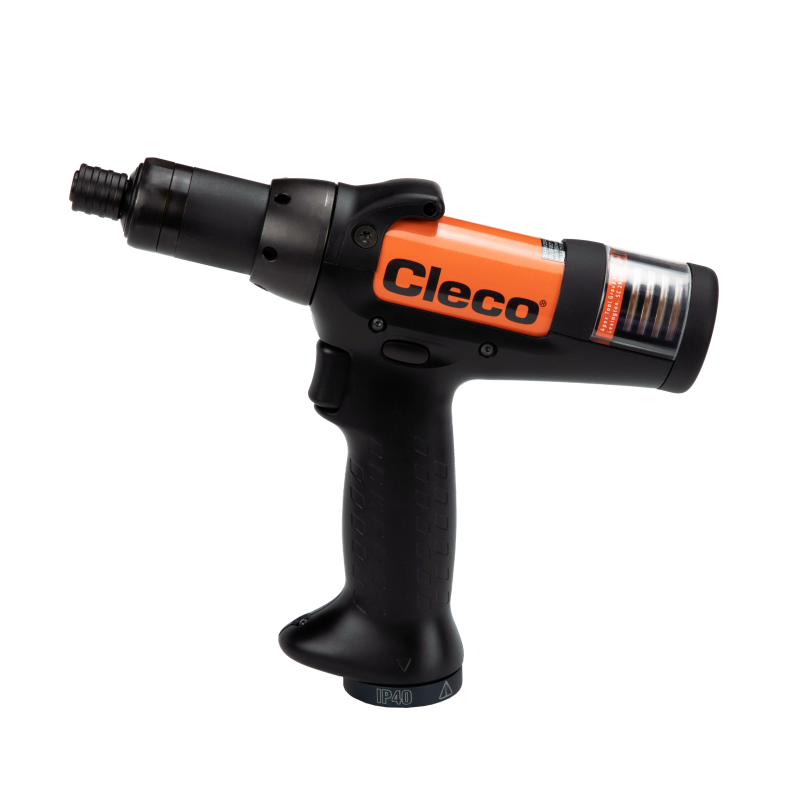

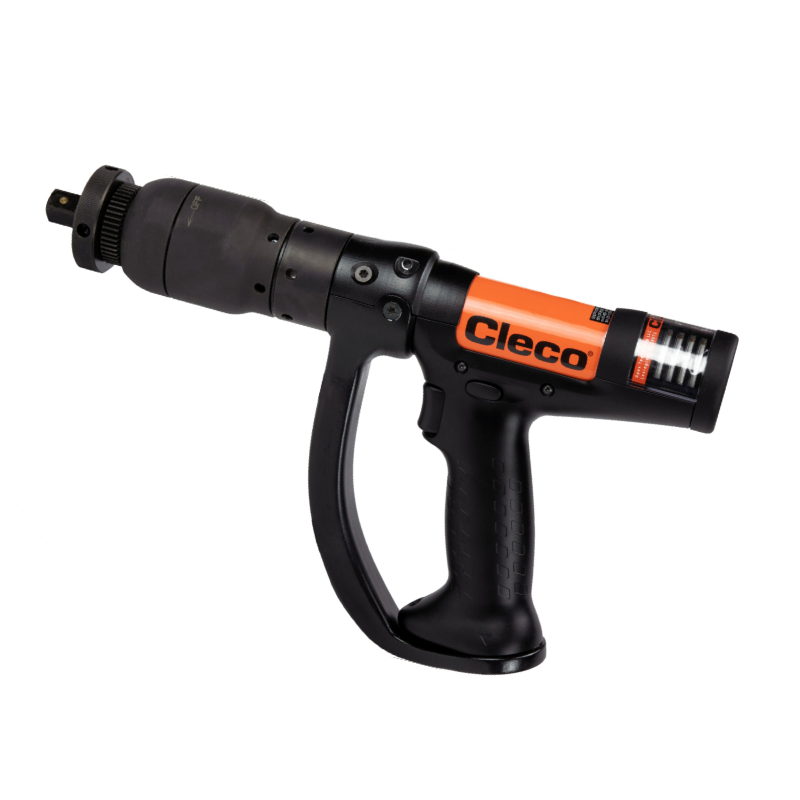

NeoTek Pistol Nutrunners

The Cleco NeoTek fastening system is the next generation of smart tool solutions. NeoTek exceeds the industry’s most demanding assembly requirements by combining over 50 years of experience with smart technology. NeoTek tools were engineered to provide 1 million cycles maintenance-free. NeoTek’s tool cable features an industry-first quarter turn twist-lock design, thus eliminating one of the leading causes of tool cable failure: damaged threads.

  • Accurate torque transducer
  • Lightweight, smooth body and cable design
  • 1 million cycles maintenance-free
  • Repeatability & Accuracy with 2.0 Cm/Cmk at +/- 7%
  • Configurable LED light rings
  • Tactile & Audible Operator Feedback
  • Programmable Multi-function Buttons



More from Cleco >>

Also remember the Cleco NeoTek Controllers.

Description

30-series
Item Torque Range (Nm) Free Speed (rpm) Weight (kg) Lenght (mm) Side to Center (mm) Drive
30EPN05BD2 0,9 – 4,7 4 275 0,93 197 16,3 1/4” SQ
30EPN05BDQ 0,9 – 4,7 4 275 0,91 210 16,3 1/4” QC
30EPN12EAQ 3,9 – 11,6 1 650 1 229 16,3 1/4” QC
30EPN12FA3 3,9 – 11,6 1 650 0,98 214 16,3 3/8” SQ
30EPN19FB3 3,9 – 19,0 1 000 1 214 16,3 3/8” SQ
30EPN26FB3 5,1 – 26,0 750 1 214 16,3 3/8” SQ
50-series
Item Torque Range (Nm) Free Speed (rpm) Weight (kg) Lenght (mm) Side to Center (mm) Drive
50EPN28FD3 5,6 – 28 2 125 1,58 256 16,3 3/8” SQ
50EPN43GD3 9,0 – 43 1 375 1,65 260 18,9 3/8” SQ
50EPN65HD4 14 – 66 900 2,14 288 22 1/2” SQ
50EPN85JD4 17 – 84 670 2,22 302 22 1/2” SQ
50EPN125KD4 25 – 123 455 2,62 313 28 1/2” SQ

Brand

Cleco

Cleco

Cleco is a global leader in manufacturing and delivering world-class assembly solutions including DC electric and pneumatic assembly tools and material removal tools. The versatile range of assembly wrenches offers the optimal solution for both safety-critical and high-speed demanding assembly work. Cleco is part of the Apex Tool Group, one of the world's largest industrial tool groups. Visit manufacturer's website >>

Product Sheet

Product Sheet (in Finnish) [PDF]
