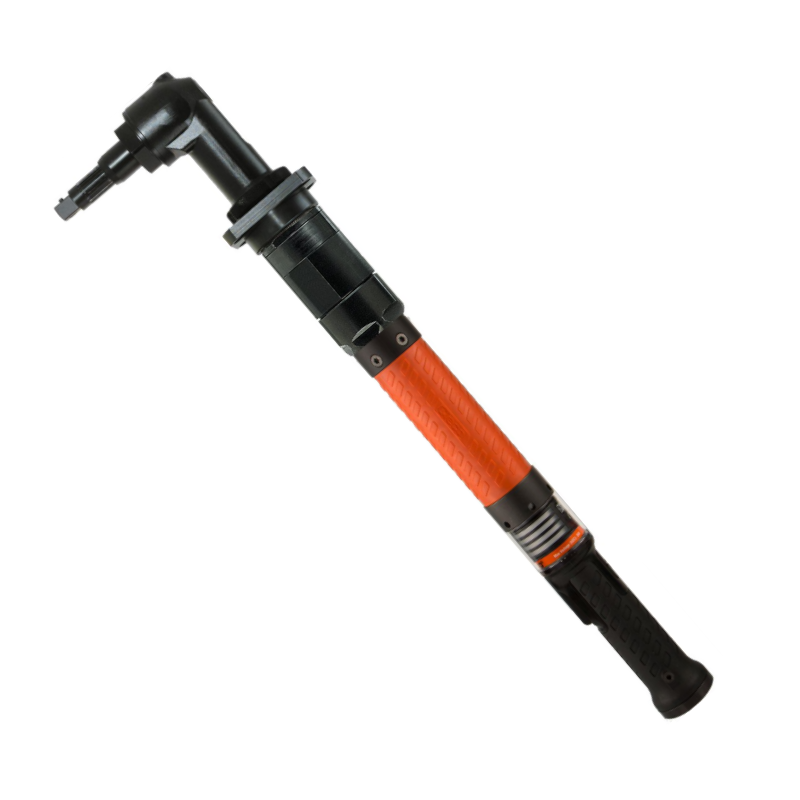

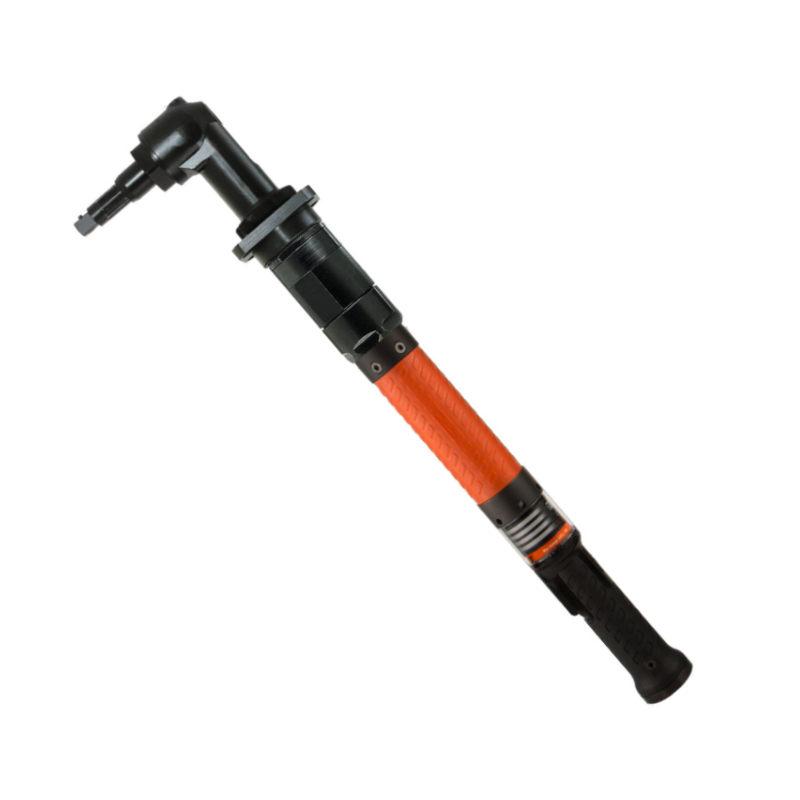

NeoTek Angle Nutrunners with Retractable Spindle

The Cleco NeoTek fastening system is the next generation of smart tool solutions. NeoTek exceeds the industry’s most demanding assembly requirements by combining over 50 years of experience with smart technology. NeoTek tools were engineered to provide 1 million cycles maintenance-free. NeoTek’s tool cable features an industry-first quarter turn twist-lock design, thus eliminating one of the leading causes of tool cable failure: damaged threads.

Accurate torque transducer
Lightweight, smooth body and cable design
1 million cycles maintenance-free
Repeatability & Accuracy with 2.0 Cm/Cmk at +/- 7%
Configurable LED light rings
Tactile & Audible Operator Feedback
Programmable Multi-function Buttons

Description

30-series
Item	Torque Range (Nm)	Free Speed (rpm)	Weight (kg)	Lenght (mm)	Side to Center (mm)	Drive
30EAR12S131	2,6 – 12,1	1 425	1,64	411	13,7	3/8” SQ
30EAR25S131	5,4 – 25	675	1,82	411	13,7	3/8” SQ
30EAR30S131	7,0 – 30	500	1,82	411	13,7	3/8” SQ

50-series
Item	Torque Range (Nm)	Free Speed (rpm)	Weight (kg)	Lenght (mm)	Side to Center (mm)	Drive
50EAR39S231	8 – 39	1 375	2,2	483	17,4	3/8” SQ
50EAR55S231	12 – 55	915	2,37	483	17,4	3/8” SQ
50EAR56S341	11 – 56	965	2,51	513	22	1/2” SQ
50EAR85S341	17 – 84	640	2,68	513	22	1/2” SQ
50EAR100S341	20 -100	540	2,91	513	17	1/2” SQ
50EAR165S461	33 – 165	315	6,81	551	27	3/4” SQ
50EAR235S461	49 – 235	215	8,46	565	27	3/4” SQ

Brand

Cleco

Cleco

Cleco is a global leader in manufacturing and delivering world-class assembly solutions including DC electric and pneumatic assembly tools and material removal tools. The versatile range of assembly wrenches offers the optimal solution for both safety-critical and high-speed demanding assembly work. Cleco is part of the Apex Tool Group, one of the world's largest industrial tool groups. Visit manufacturer's website >>
