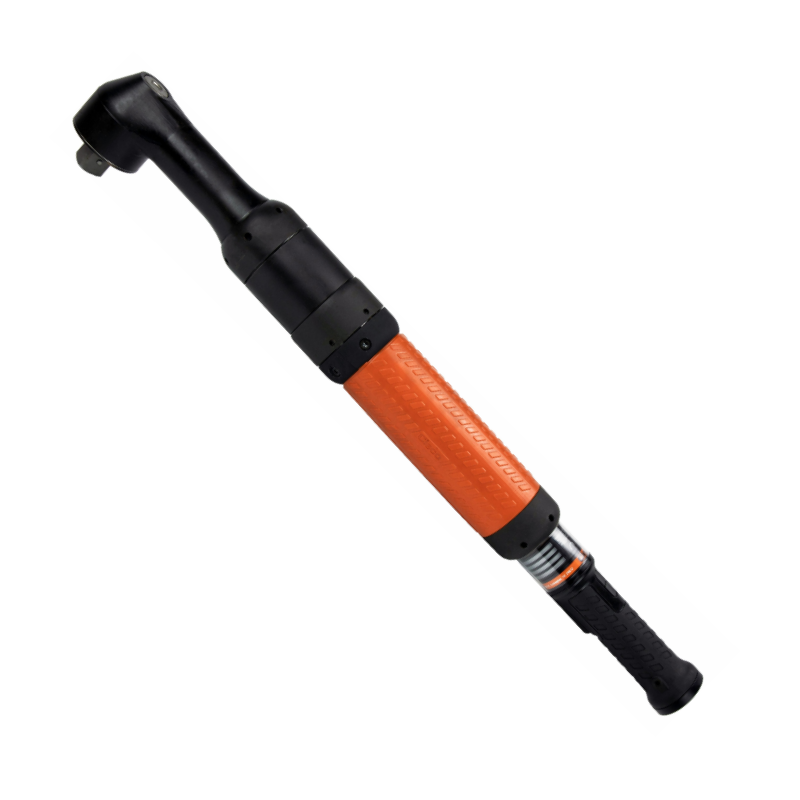

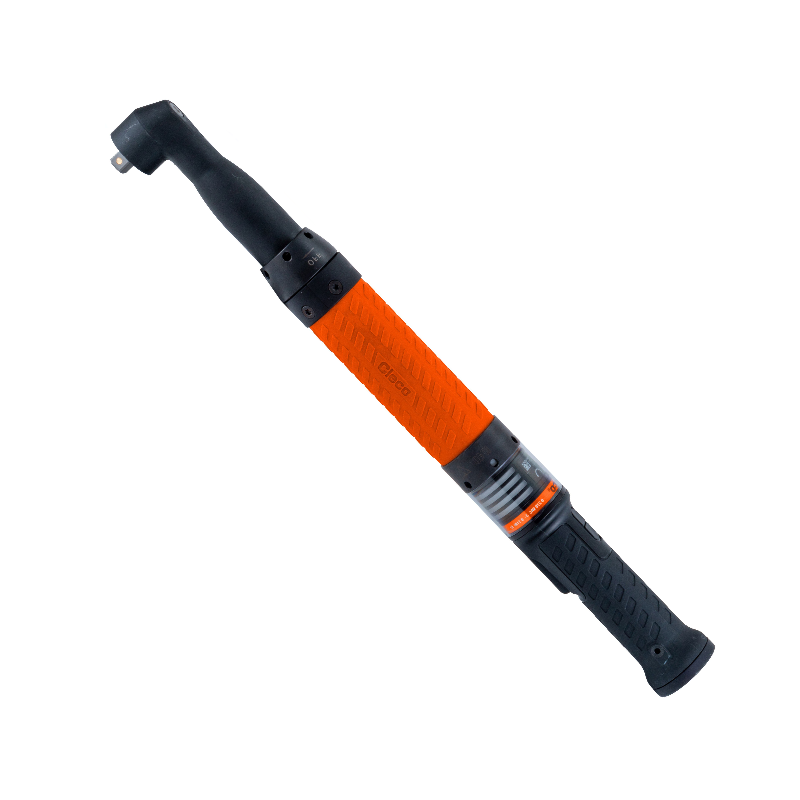

NeoTek Angle Nutrunners

The Cleco NeoTek fastening system is the next generation of smart tool solutions. NeoTek exceeds the industry’s most demanding assembly requirements by combining over 50 years of experience with smart technology. NeoTek tools were engineered to provide 1 million cycles maintenance-free. NeoTek’s tool cable features an industry-first quarter turn twist-lock design, thus eliminating one of the leading causes of tool cable failure: damaged threads.

Accurate torque transducer
Lightweight, smooth body and cable design
1 million cycles maintenance-free
Repeatability & Accuracy with 2.0 Cm/Cmk at +/- 7%

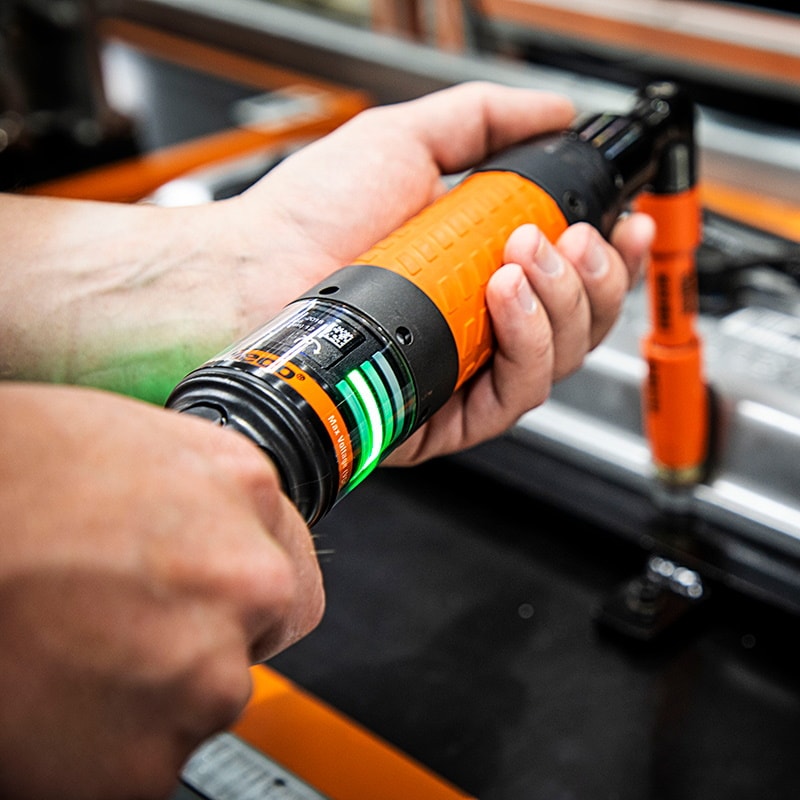

Configurable LED light rings
Tactile & Audible Operator Feedback
Programmable Multi-function Buttons

Description

30-series
Item	Torque Range (Nm)	Free Speed (rpm)	Weight (kg)	Lenght (mm)	Side To Center (mm)	Angle head height (mm)	Drive
30EAN06EA3	1,3 – 6	2 925	1,13	380	12,3	36	3/8” SQ
30EAN12EA3	2,6 – 12	1 450	1,14	380	12,3	36	3/8” SQ
30EAN21FA3	4,4 – 21	835	1,32	408	16,4	40	3/8” SQ
30EAN28FA3	5,7 – 28	615	1,32	408	16,4	40	3/8” SQ

50-series
Item	Torque Range (Nm)	Free Speed (rpm)	Weight (kg)	Lenght (mm)	Side To Center (mm)	Angle head height (mm)	Drive
50EAN30FA3	6 – 30	1 765	1,6	449	16,4	40	3/8” SQ
50EAN39GA3	8 – 39	1 375	1,77	462	16,7	45	3/8” SQ
50EAN59HA3	12 – 59	915	1,94	464	19	51	3/8” SQ
50EAN80JA4	16 – 80	670	2,17	473	22,8	48	1/2” SQ
50EAN110KA4	22 – 109	475	2,76	493	25,3	60	1/2” SQ
50EAN150KB4	32 – 150	320	3,75	559	26,2	64	1/2” SQ
50EAN205NA6	41 – 205	250	3,93	562	29,5	62	3/4” SQ

70-series
Item	Torque Range (Nm)	Free Speed (rpm)	Weight (kg)	Lenght (mm)	Side To Center (mm)	Angle head height (mm)	Drive
70EAN155NA6	39 – 156	740	6,5	637	29,5	62	3/4” SQ
70EAN205NA6	52 – 205	555	6,5	637	29,5	62	3/4” SQ
70EAN240PA6	60 – 239	480	7	655	38	68	3/4” SQ
70EAN350PA6	88 – 350	325	7	655	38	68	3/4” SQ
70EAN600SA8T	125 – 600	190	10,8	674	55	93	1” SQ
70EAN800TA8MT	200 – 800	115	11,6	659	42	205	1” SQ
70EAN1500TA8MT	375 – 1500	60	11,6	659	42,5	205	1” SQ
70EAN2000TB8MT	500 – 2000	35	14,7	677	58	231	1” SQ
70EAN4000UA12MT	1250 – 4000	17	18,8	677	58	238	1 1/2” SQ

67-series (older models)
Item	Torque Range (Nm)	Free Speed (rpm)	Weight (kg)	Lenght (mm)	Side To Center (mm)	Angle head height (mm)	Drive
67EA235AL6	46 – 230	135	5,9	655	26	58	3/4” SQ
67EA255AL6	55 – 255	115	5,9	655	26	58	3/4” SQ
67EA310ML6	60 – 310	100	9,2	739	27	65	3/4” SQ
67EA340AM6	70 – 335	90	9,5	803	35	79	3/4” SQ
67EA460AM6	95 – 460	66	9,5	803	35	79	3/4” SQ
67EA570AM6	115 – 570	53	9,5	803	35	79	3/4” SQ
67EA860AH8	175 – 860	33	10,3	643	38	237	1” SQ
67EA1035AH8	210 – 1035	25	10,4	668	38	237	1” SQ
67EA1340AH8	270 – 1340	20	10,4	668	38	237	1” SQ
67EA1700AH8	340 – 1700	16	10,4	668	38	237	1” SQ
67EA2010AH8	400 – 2000	13	10,4	668	38	237	1” SQ

Brand

Cleco

Cleco

Cleco is a global leader in manufacturing and delivering world-class assembly solutions including DC electric and pneumatic assembly tools and material removal tools. The versatile range of assembly wrenches offers the optimal solution for both safety-critical and high-speed demanding assembly work. Cleco is part of the Apex Tool Group, one of the world's largest industrial tool groups. Visit manufacturer's website >>
