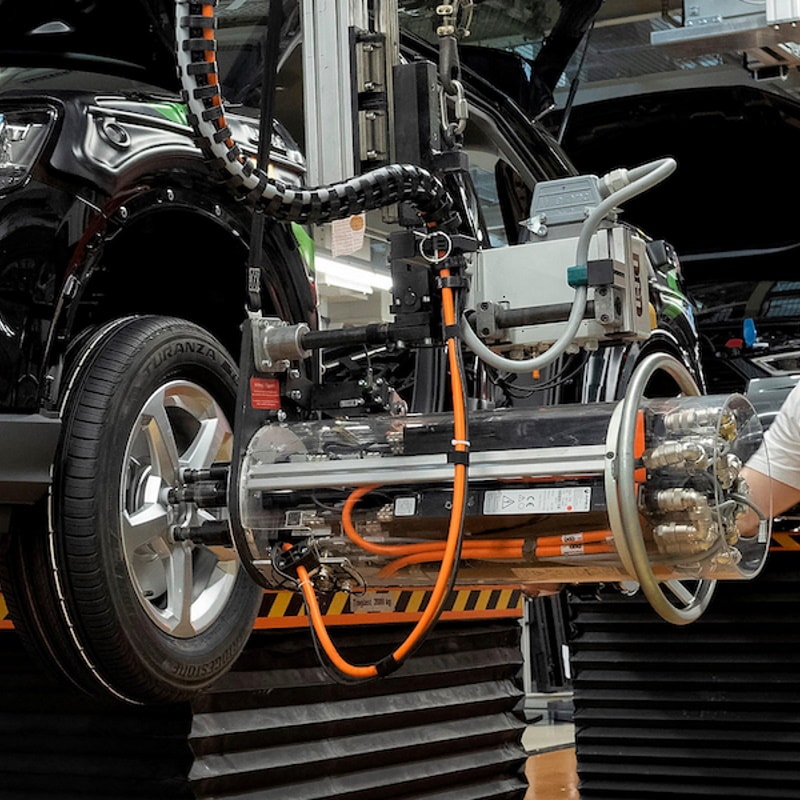

Intelligent Spindles

Cleco Intelligent Spindles are the exclusive fixtured assembly solution, combining reduced floor space, fewer cables and high-speed uptime availability for automated fastening applications. Intelligent Spindles provide a wide range of torque capability and industry-leading free speeds. By utilizing the exclusive daisy-chain connectors, Cleco offers the only solution in the industry that enables you to run multiple spindles using a daisy-chained cable solution. The series includes models with straight, offset and angle drives.

On board servo module
Patented daisy chain
Torque transducer and angle encoder
World class free speed and longest service life on the market
Great efficiency, accuracy, and productivity with less manpower

Description

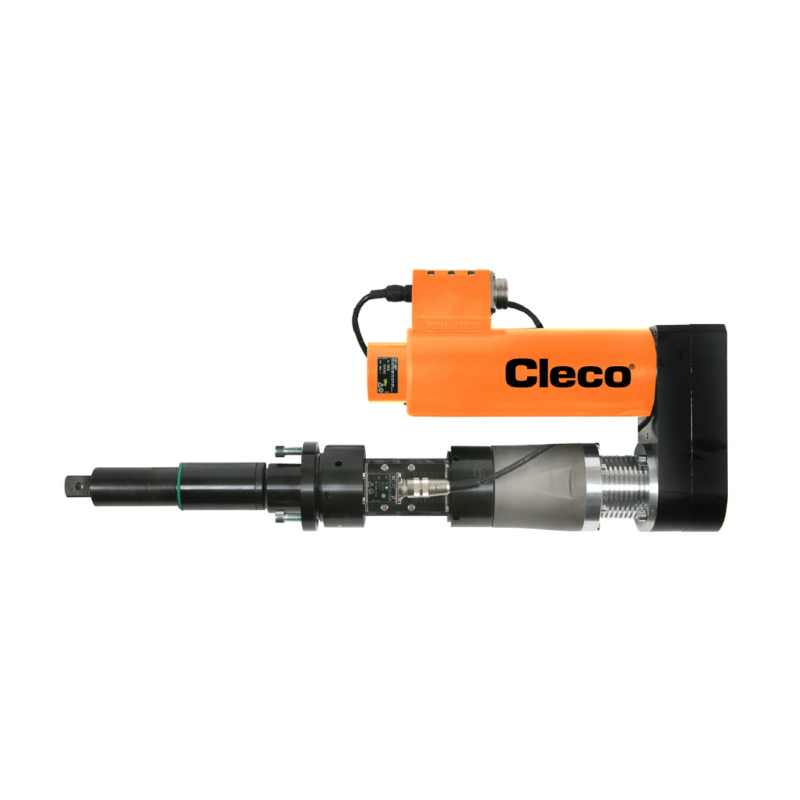

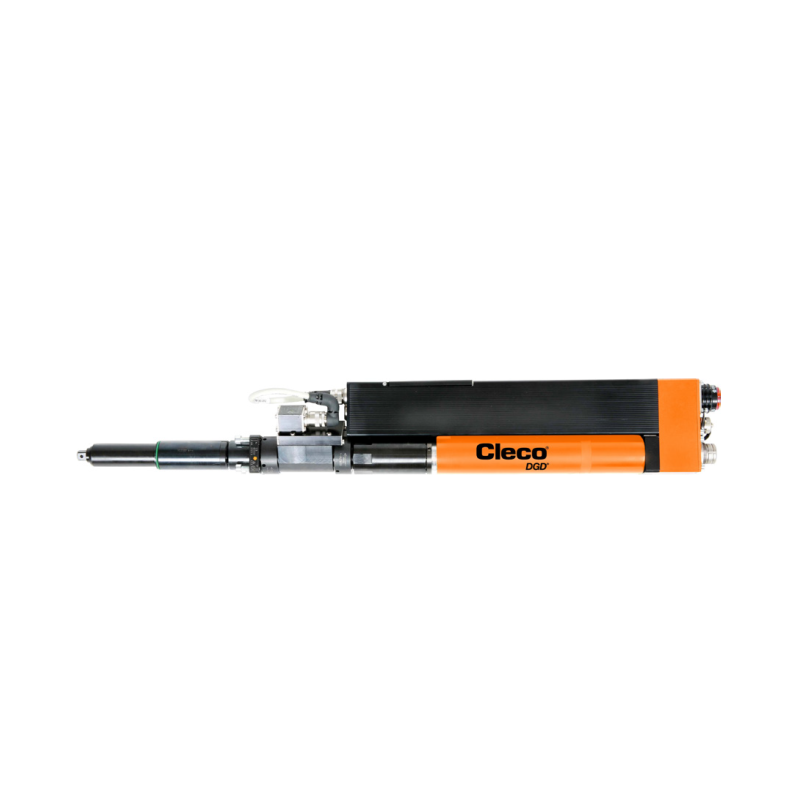

1-4 BTS, straight drive
Item	Torque Range (Nm)	Free Speed (rpm)	Float (mm)	Drive	Min. Center-to-center (mm)	Weight (kg)	Length (mm)
1BTS-1B012A-1K3B-1ZB	2 – 12	1 921	50	3/8″	43	4,8	486
1BTS-1B035A-1K1B-1ZB	5 – 35	727	50	3/8″	43	4,8	486
1BTS-1B060A-1K2B-1ZB	15 – 53	427	50	3/8″	43	4,8	486
2BTS-2B110A-2K1B-2ZB	25 – 110	890	50	1/2″	56	7,6	528
2BTS-2B200A-2K3B-2ZB	40 – 200	502	50	3/4″	56	7,6	528
3BTS-3B300A-3K2B-3ZB	50 – 300	453	50	3/4″	81	14,1	589
4BTS-4B500A-4K2B-4ZA	100 – 500	254	50	3/4″	91	21	719
4BTS-4B660A-4K3B-4ZA	130 – 660	174	50	1″	91	21	719
4BTS-4B360A-4K1B-4Z1250A	320 – 1 250	86	50	1″	121	29	771
4BTS-4B500A-4K2B-4Z1600A	400 – 1 600	68	50	1 1/2”	121	29	771
4BTSE-4B660A-4M3B-4Z2800G	980 – 2 800	37	50	1 1/2”	160	39,73	790

1-4 BUTS, straight drive with reversible gears
Item	Torque Range (Nm)	Free Speed (rpm)	Float (mm)	Drive	Min. Center-to-center (mm)	Weight (kg)	Length (mm)
1BUTS-1B012A-1K3B-1ZB	2 – 12	1 921	50	3/8″	43	5,3	393
1BUTS-1B035A-1K1B-1ZB	5 – 35	727	50	3/8″	43	5,3	393
1BUTS-1B060A-1K2B-1ZB	15 – 53	427	50	3/8″	43	5,3	393
2BUTS-2B110A-2K1B-2ZB	25 – 110	890	50	1/2″	56	8,6	367
2BUTS-2B200A-2K3B-2ZB	40 – 200	502	50	3/4″	56	8,6	367
3BUTS-3B300A-3K2B-3ZB	50 – 300	453	50	3/4″	81	16,1	417
4BUTS-4B500A-4K2B-4ZA	100 – 500	254	50	3/4″	91	22,5	546
4BUTS-4B660A-4K3B-4ZA	130 – 660	174	50	1″	91	22,5	546
4BUTS-4B360A-4K1B-4Z1250A	320 – 1 250	86	50	1″	121	31	599
4BUTS-4B500A-4K2B-4Z1600A	400 – 1 600	68	50	1 1/2”	121	31	599

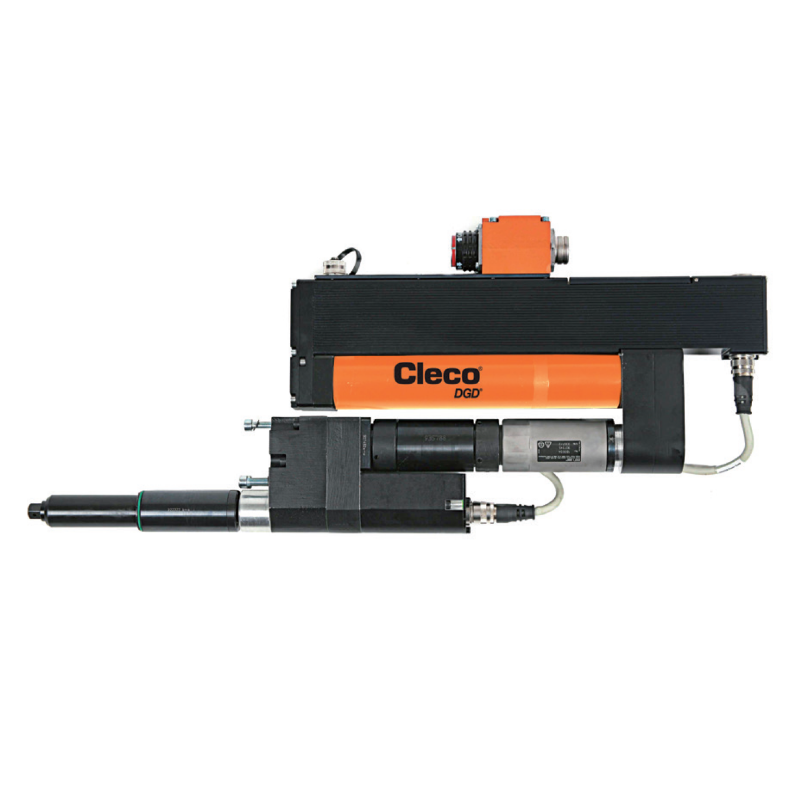

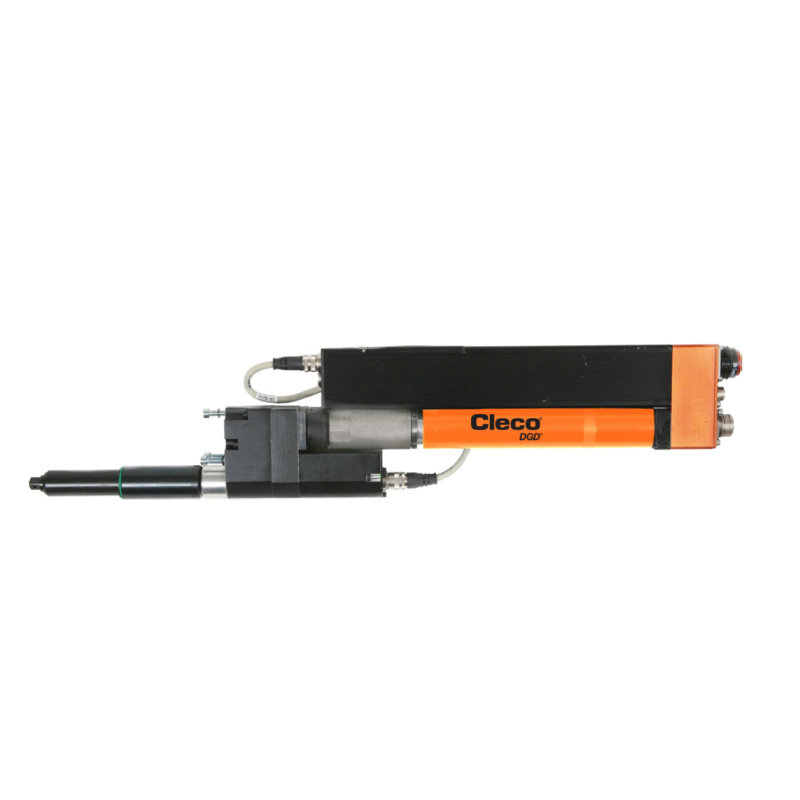

1-4 BTS, offset drive
Item	Torque Range (Nm)	Free Speed (rpm)	Float (mm)	Drive	Min. Center-to-center (mm)	Weight (kg)	Length (mm)
1BTS-1B012A-1VK3B	2 -12	1 825	50	3/8”	35	5,3	474
1BTS-1B035A-1VK1B	5 – 35	690	50	3/8”	35	5,3	474
1BTS-1B060A-1VK2B	15 – 53	405	50	3/8”	35	5,3	474
2BTS-2B110A-2VK1B	25 – 110	831	50	1/2”	44	9,2	551
2BTS-2B200A-2VK3B	40 – 200	468	50	3/4”	44	9,2	551
3BTS-3B300A-3VK2B	50 – 300	421	50	3/4”	59	15,2	584
4BTS-4B500A-4VK2B	100 – 500	238	50	3/4”	76	22,5	684
4BTS-4B660A-4VK3B	130 – 660	163	50	1”	76	22,5	684
4BTS-4B660A-4VK4B	160 – 750	135	50	1”	76	23	684

1-4 BUTS, offset drive with reversable gears
Item	Torque Range (Nm)	Free Speed (rpm)	Float (mm)	Drive	Min. Center-to-center (mm)	Weight (kg)	Length (mm)
1BUTS-1B012A-1VK3B	2 -12	1 825	50	3/8”	35	5,8	382
1BUTS-1B035A-1VK1B	5 – 35	690	50	3/8”	35	5,8	382
1BUTS-1B060A-1VK2B	15 – 53	405	50	3/8”	35	5,8	382
2BUTS-2B110A-2VK1B	25 – 110	831	50	1/2”	44	10,2	390
2BUTS-2B200A-2VK3B	40 – 200	468	50	3/4”	44	10,2	390
3BUTS-3B300A-3VK2B	50 – 300	421	50	3/4”	59	17,2	412
4BUTS-4B500A-4VK2B	100 – 500	238	50	3/4”	76	24	512
4BUTS-4B660A-4VK3B	130 – 660	163	50	1”	76	24	512
4BUTS-4B660A-4VK4B	160 – 750	135	50	1”	76	24,5	512

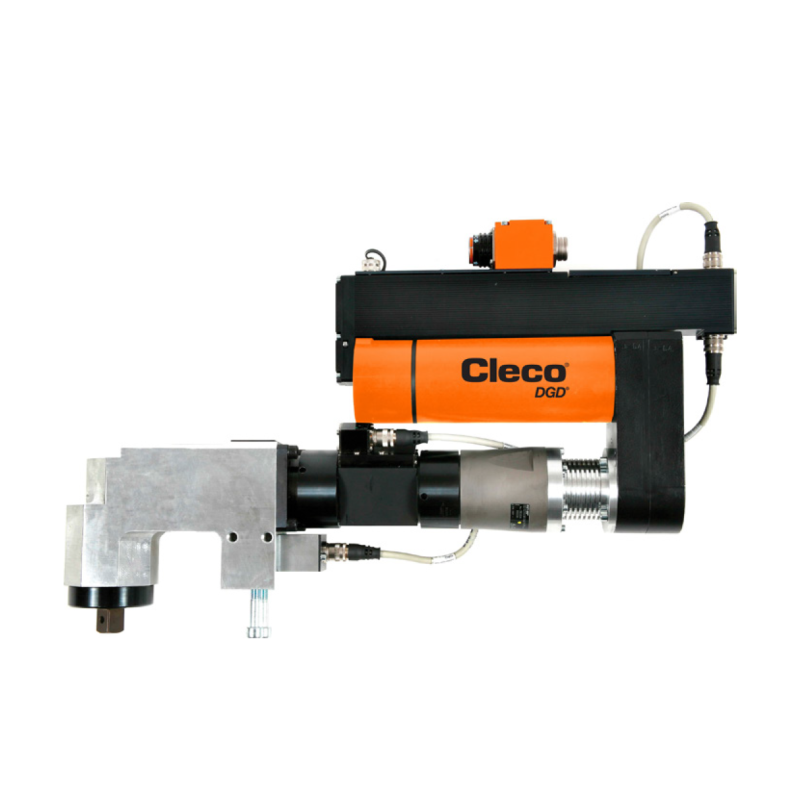

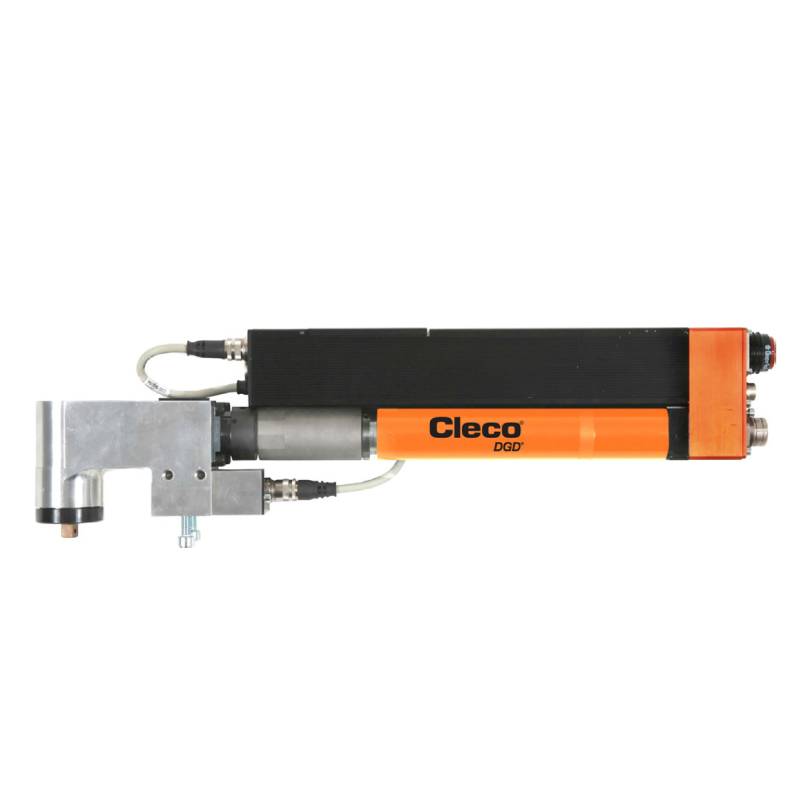

1-4 BTS, angle drive
Item	Torque Range (Nm)	Free Speed (rpm)	Float (mm)	Drive	Min. Center-to-center (mm)	Weight (kg)	Length (mm)
1BTS-1B012A-1WK3B	2 – 12	1 801	25	3/8”	52	5,7	542
1BTS-1B035A-1WK1B	5 – 35	681	25	3/8”	52	5,7	542
1BTS-1B060A-1WK2B	15 – 53	400	25	3/8”	52	5,7	542
2BTS-2B110A-2WK1B	25 – 110	838	25	1/2”	59	8,7	581
2BTS-2B200A-2WK3B	40 – 200	472	25	3/4”	59	8,7	581
3BTS-3B300A-3WK2B	50 – 300	437	25	3/4”	81	17,8	678
4BTS-4B500A-4WK2B	100 – 500	245	25	1”	112	27,1	729
4BTS-4B660A-4WK3B	130 – 660	167	25	1”	112	27,1	729

1-4 BUTS, angle drive with reversable gears
Item	Torque Range (Nm)	Free Speed (rpm)	Float (mm)	Drive	Min. Center-to-center (mm)	Weight (kg)	Length (mm)
1BUTS-1B012A-1WK3B	2 – 12	1 801	25	3/8”	52	6,2	370
1BUTS-1B035A-1WK1B	5 – 35	681	25	3/8”	52	6,2	370
1BUTS-1B060A-1WK2B	15 – 53	400	25	3/8”	52	6,2	370
2BUTS-2B110A-2WK1B	25 – 110	838	25	1/2”	59	9,7	421
2BUTS-2B200A-2WK3B	40 – 200	472	25	3/4”	59	9,7	421
3BUTS-3B300A-3WK2B	50 – 300	437	25	3/4”	81	19,8	506
4BUTS-4B500A-4WK2B	100 – 500	245	25	1”	112	28,6	556
4BUTS-4B660A-4WK3B	130 – 660	167	25	1”	112	28,7	556
