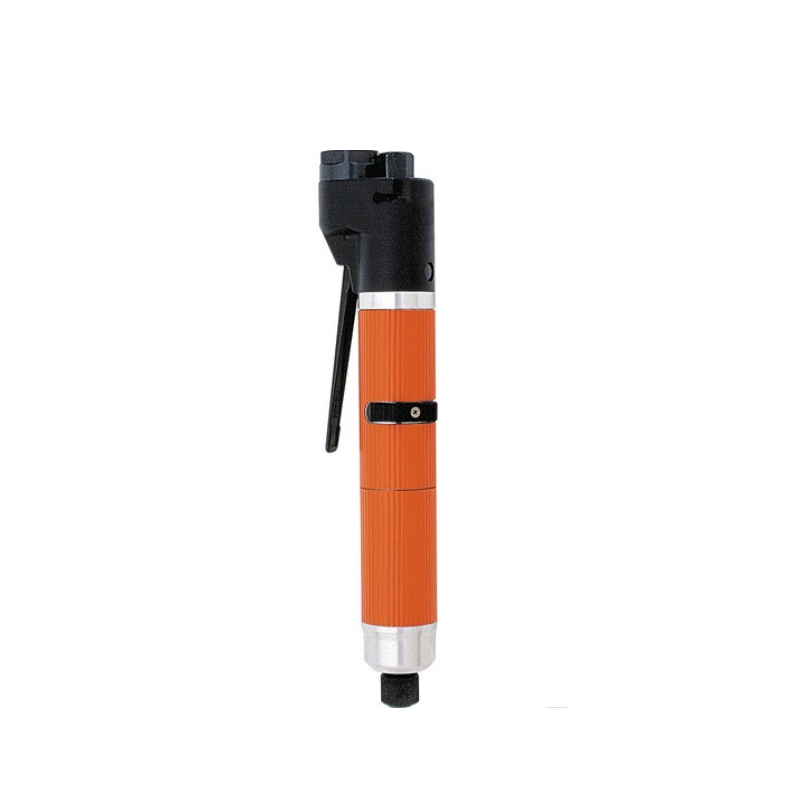

In-Line Pulse Tools

Productivity has been in the focus when developing Cleco’s in-line pulse tools, which combine the legendary Cleco durability with unmatched repeatability. Choose your suitable pulse tool from our comprehensive product portfolio of shut-off pulse tools. All in-line pulse tools are also available as STHFA models, in which there is a push-to-start action.

Hydraulic pulse shut-off
Motor govenor equipped
External torque adjustment
External speed control
Reversible
Oilless blades
Torque signal port

Description

In-line pulse tools
Item	Drive	Bolt Size	Torque Range (Nm)	Free Speed (rpm)	Weight (kg)	Air Consumption (m3/min)	Air Inlet NPT
7STHFC55Q	1/4″ QC	M5 – M8	2.6 – 6.6	5 500	0,93	0,2	1/8″
15STHFC40Q	1/4″ QC	M5 – M8	5 – 15	4 000	1,1	0,47	1/4″
15STHC40Q	1/4″ QC	M5 – M8	5 – 15	3 000	1,1	0,47	1/4″
35STHFC40Q	7/16″ QC	M5 – M8	15 – 35	4 000	1,5	0,45	1/4″
35STHFC404	1/2″ SQ	M5 – M8	15 – 35	4 000	1,5	0,45	1/4″

Brand

Cleco

Cleco

Cleco is a global leader in manufacturing and delivering world-class assembly solutions including DC electric and pneumatic assembly tools and material removal tools. The versatile range of assembly wrenches offers the optimal solution for both safety-critical and high-speed demanding assembly work. Cleco is part of the Apex Tool Group, one of the world's largest industrial tool groups. Visit manufacturer's website >>
