CellTek

Battery torque tool

Cleco’s new CellTek™ Cordless Assembly Tools bring superior connectivity, with the most reliable real-time syncronization with manufacturing and engineering systems. Intelligent and lightweight tools are an natural solution for the ultimate in comfort and balance. Designed to ensure safety-critical assembly with best-in-class accuracy, they are also the fastest cordless assembly tools in its class. Program applications can be controlled directly from the tool interface.

Possible to use even 16 cordless CellTek tools simultaneously
Tools storage allows storing up data for even 15,000 rundowns

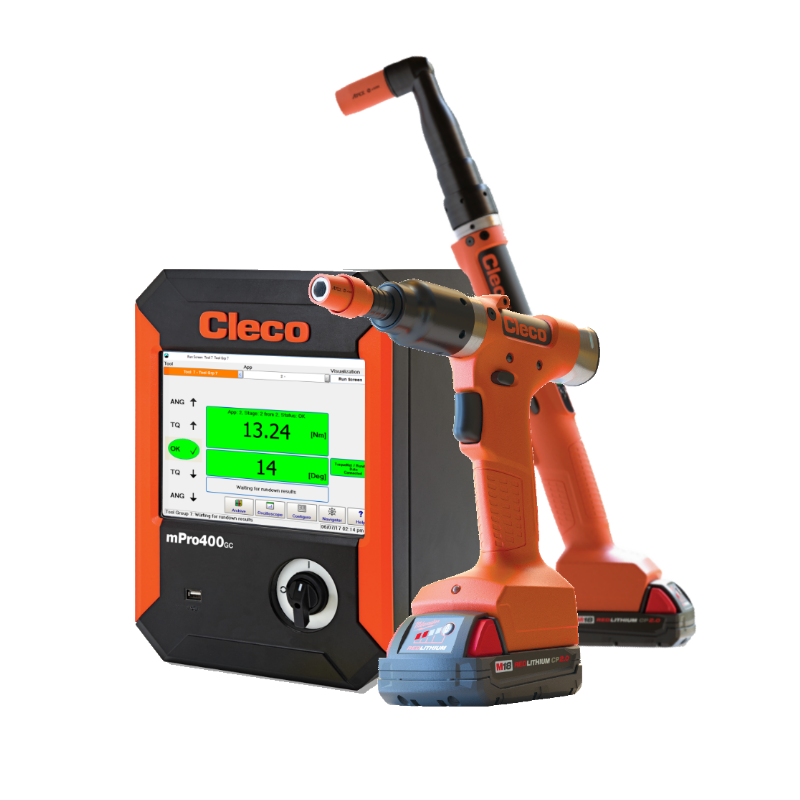

Compatible tools with Cleco’s mPro200 and mPro400 controllers
Display for controlling the tool without Cleco’s mPro controller
WiFi-range up to 40 meters

Description

Angle models
Item	Torque Range (Nm)	Free Speed (rpm)	Weight (kg)	Length (mm)	Height (mm)	Drive

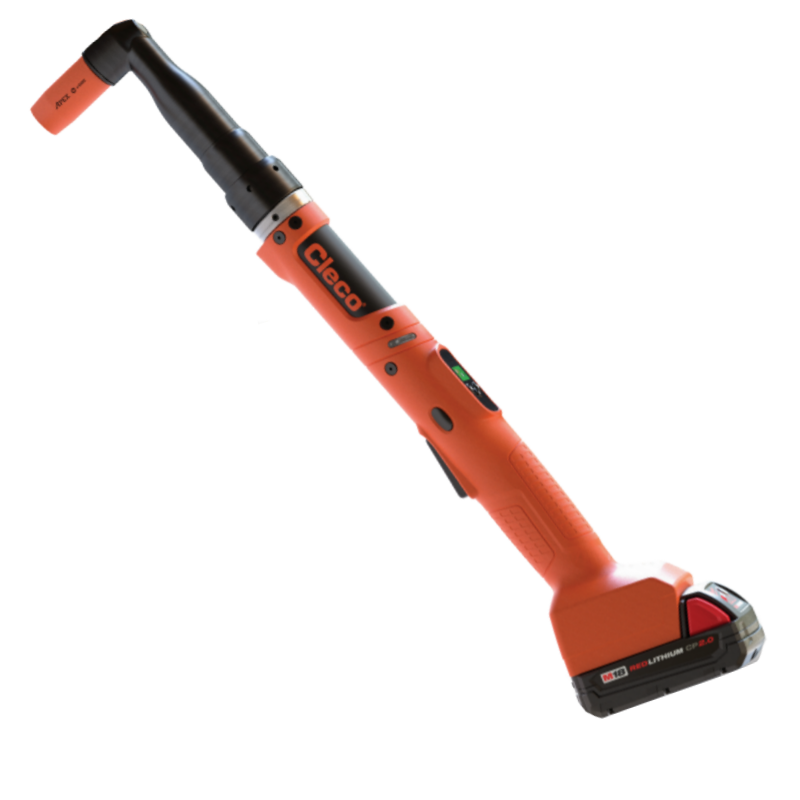

CTBAW153	3,6 – 15	1025	1,6	515	90	3/8” SQ
CTBAW213	5,2 – 21	735	1,6	515	90	3/8” SQ
CTBAW273	6,8 – 27	560	1,6	515	90	3/8” SQ
CTBAW383	10 – 38	395	1,65	526	90	3/8” SQ
CTBAW503	13 – 50	285	1,7	534	90	3/8” SQ
CTBAW653	17 – 65	220	1,8	543	90	3/8” SQ

Pistol models
Item	Torque Range (Nm)	Free Speed (rpm)	Weight (kg)	Length (mm)	Height (mm)	Drive

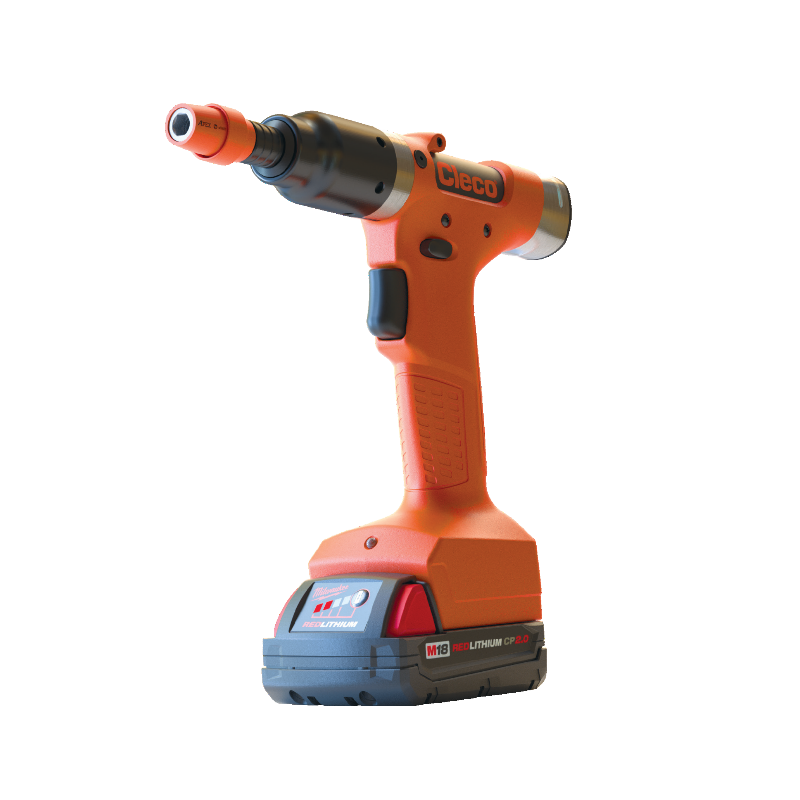

CTBPW05Q	1,1 – 4,9	3525	0,95	207	210	1/4” QC
CTBPW10Q	2,4 – 10	1600	1	207	210	1/4” QC
CTBPW15Q	3,4 – 14,4	1125	1	207	210	1/4” QC

Accessories
Item	Description
T50-1000497	18 V/2.0 Ah battery
T50-1000498	18 V/5.0 Ah battery
T50-1000506	18 V rapid charger
T50-1000508	18 V 6-bay charger

Scratch Protector
Item	Compatible
T50-1102725	CTBPW05Q
T50-1102726	CTBPW10Q, CTBPW15Q
T50-3102254	CTBAW153, CTBAW213, CTBAW273
T50-3102255	CTBAW383
T50-3102256	CTBAW503
T50-3102257	CTBAW653

Brand

Cleco

Cleco

Cleco is a global leader in manufacturing and delivering world-class assembly solutions including DC electric and pneumatic assembly tools and material removal tools. The versatile range of assembly wrenches offers the optimal solution for both safety-critical and high-speed demanding assembly work. Cleco is part of the Apex Tool Group, one of the world's largest industrial tool groups. Visit manufacturer's website >>
