CellCore

BATTERY TORQUE TOOL SERIES

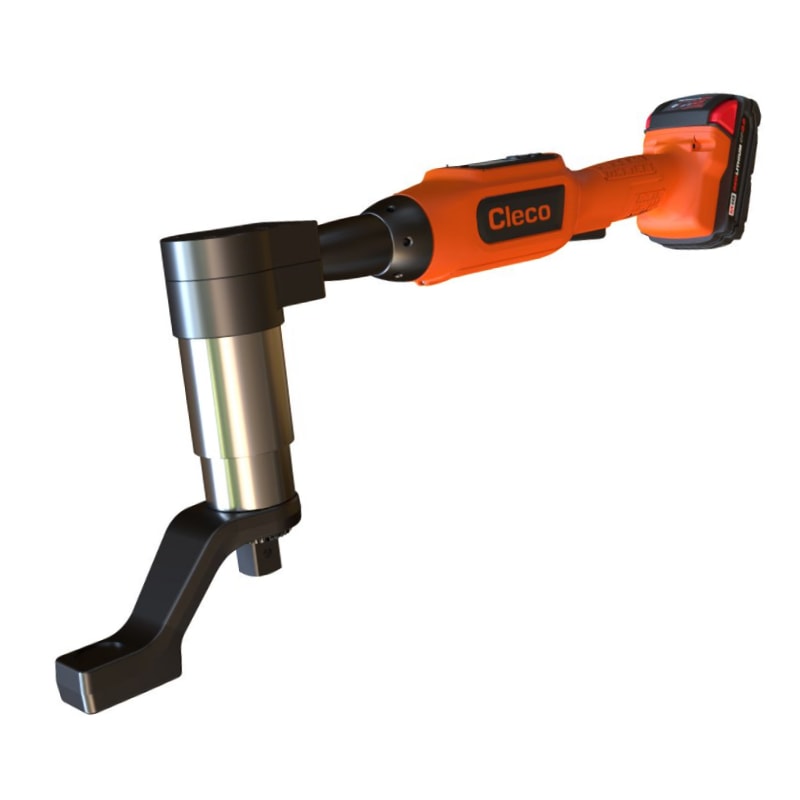

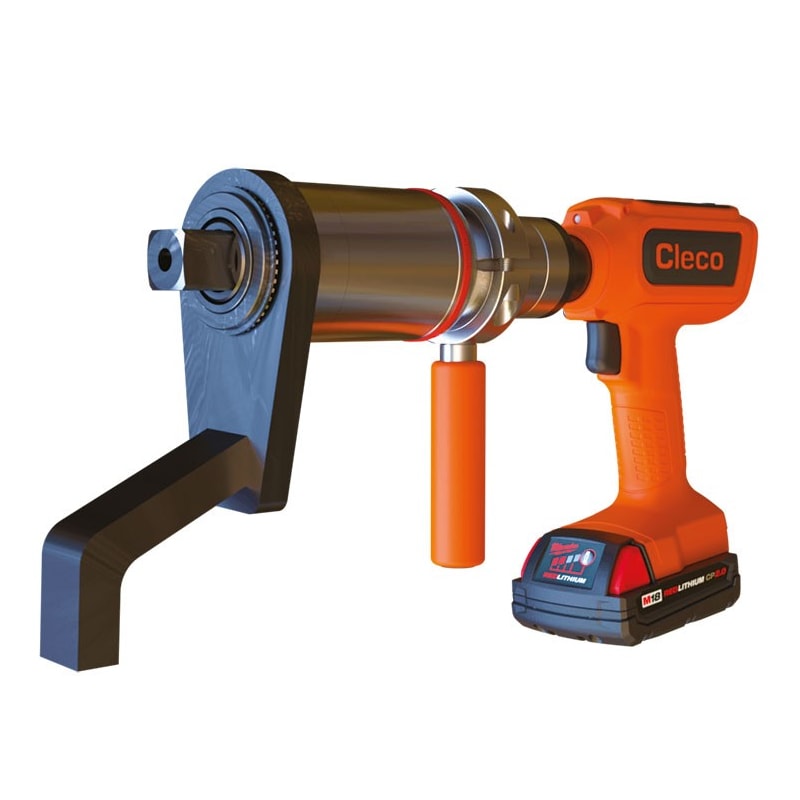

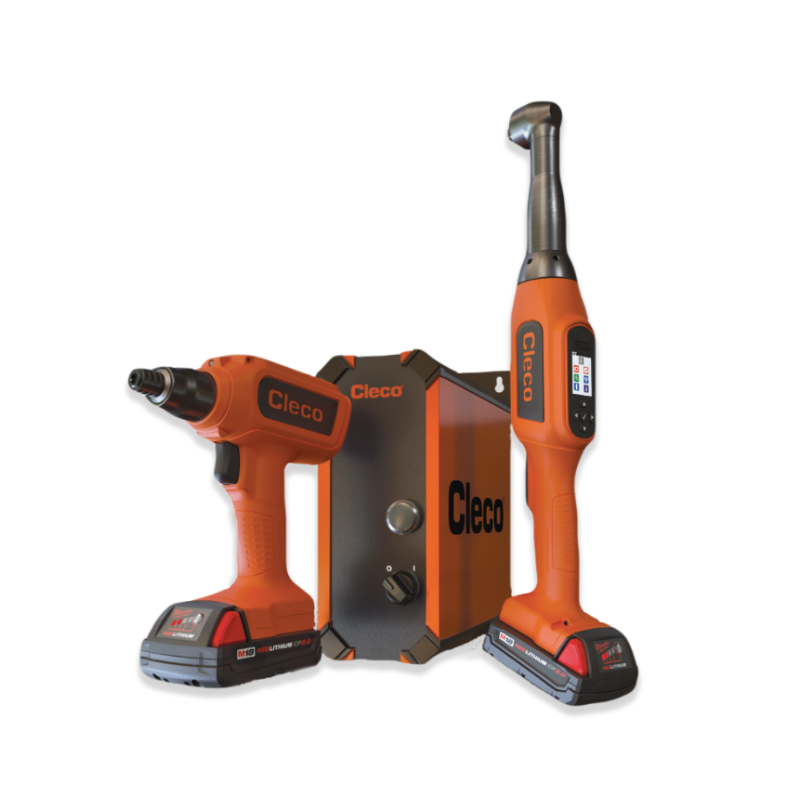

Cleco’s CellCore cordless assembly tools are smart, durable and designed to withstand the toughest environments. The extensive range of pistol and angle torque wrenches consists of both ideal wrenches for assembly work and high-torque wrenches with a quality torque multiplier. The lightweight ergonomic design reduces operator fatigue while delivering state-of-the-art power, weight and balance. A large user interface makes it quick and easy to program rundowns on the tool without a controller. Users can program up to 10 rundown strategies, called “FastApps”, directly on the tool in standalone mode. Users can also pair CellCore tools with Cleco’s new mPro200 controller – by pairing the devices, users can easily capture data in real time and program advanced rundowns within a much more compact footprint.

Comprehensive range of pistol and angle torque wrench models for both low and high torque values
Possible to use even 16 cordless CellCore tools simultaneously
Tools storage allows storing up data for even 15,000 rundowns

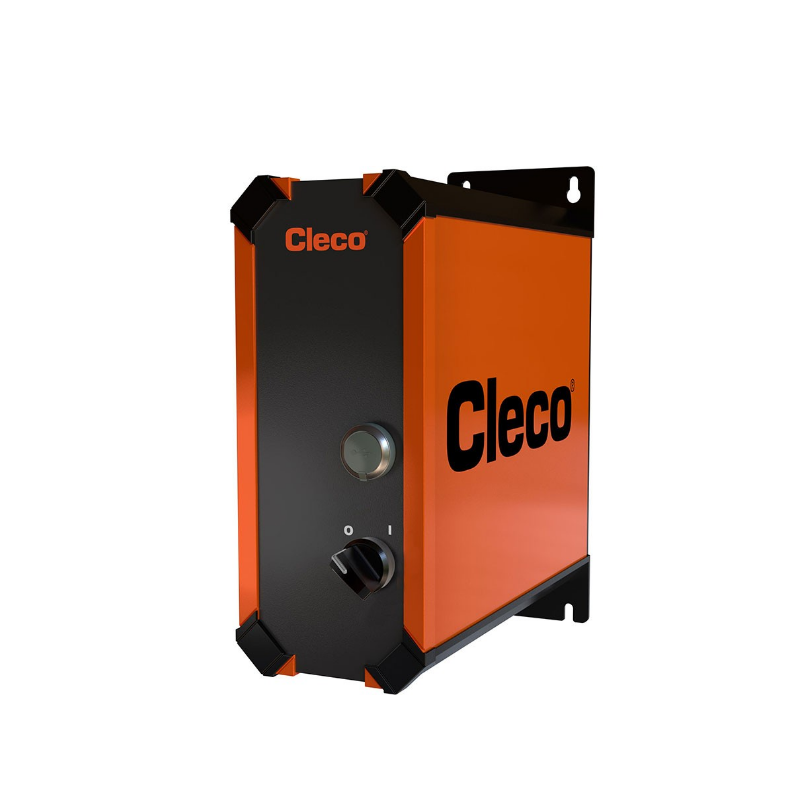

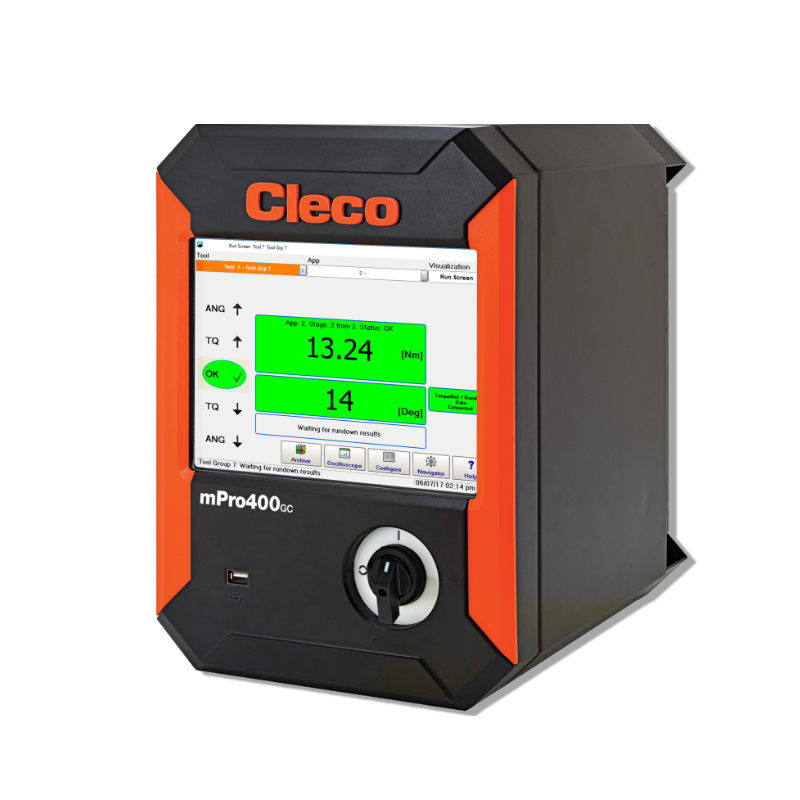

Compatible tools with Cleco’s mPro200 and mPro400 controllers
Multi-color LED-screen for lightening the object of work

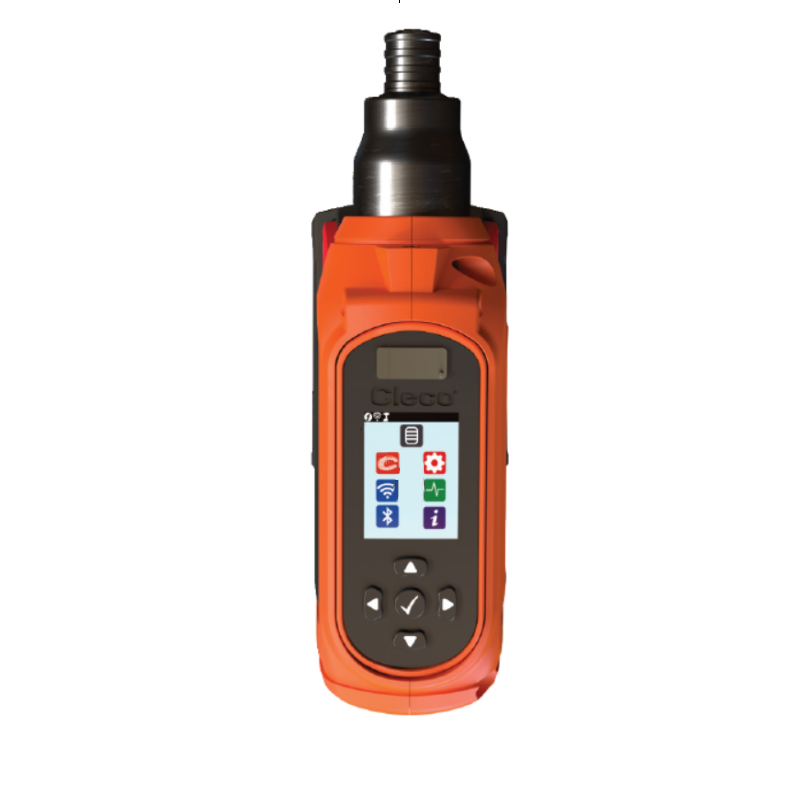

Wide display for controlling the tool without Cleco’s mPro controller

Description

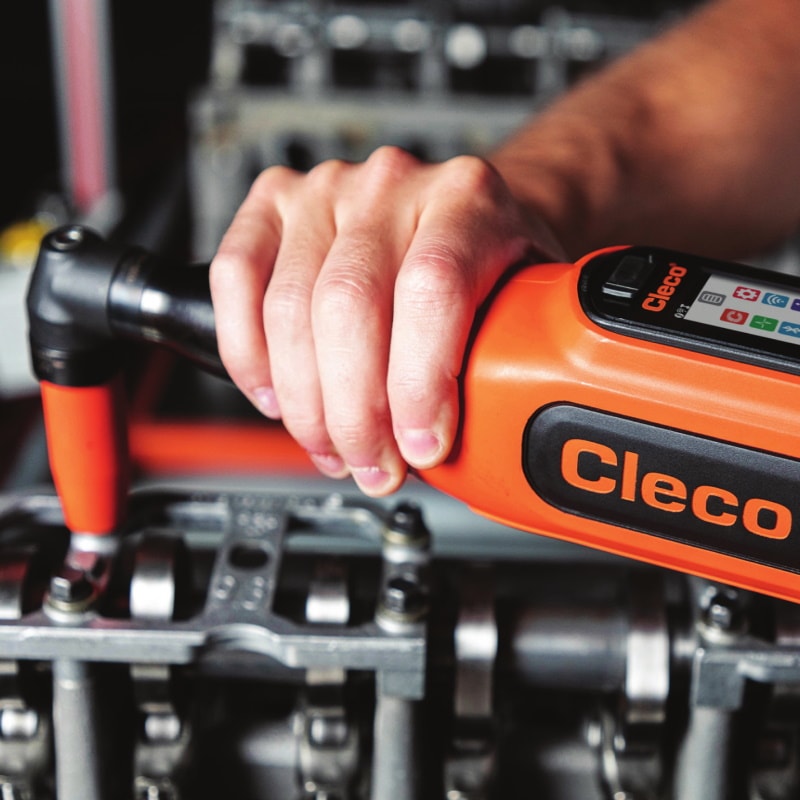

Angle Models
Item	Torque Range Nm	Free Speed rpm	Weight kg*	Lenght mm	Height mm	Drive
CCBAW153(B**)	4,5 – 15	570	1,70	456	88	3/8” SQ
CCBAW253(B**)	7,5 – 25	305	1,70	456	88	3/8” SQ
CCBAW353(B**)	10,5 – 35	255	1,95	486	92	3/8” SQ
CCBAW503(B**)	15 – 50	165	2,00	499	92	3/8” SQ
CCBAW64S-11001	19 – 64	135	2,20	511	92	1/2″ SQ
CCBAWN225NB6	45 – 225	34	4,7	610	260,4	3/4” SQ
CCBAWN750NB6	154 – 750	11	5,0	597	260,4	3/4” SQ
CCBAWN1000NB6	200 – 1000	7	5,0	610	260,4	3/4” SQ

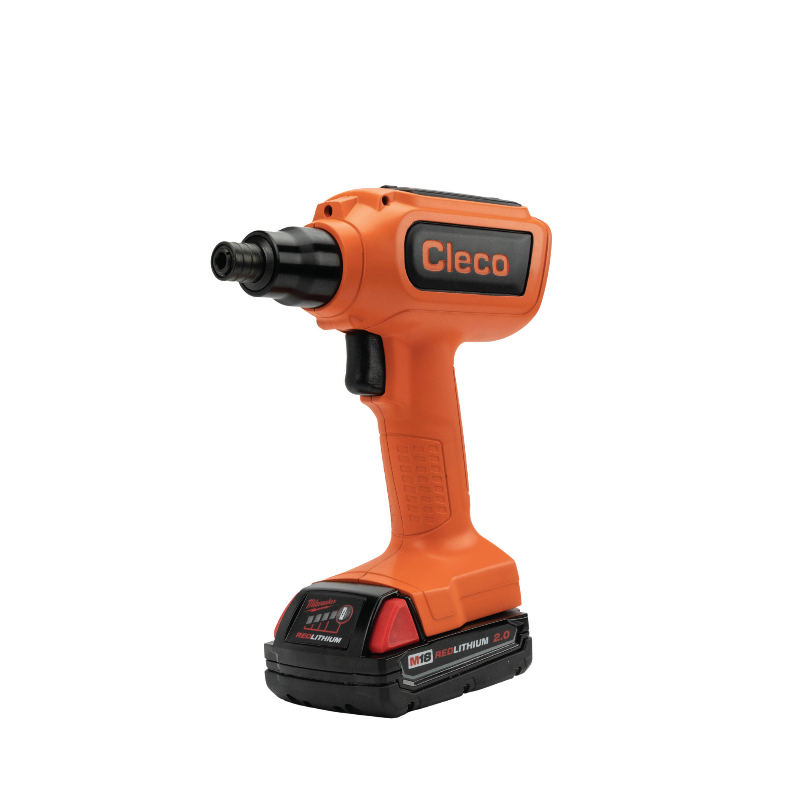

Pistol models
Item	Torque Range (Nm)	Free Speed (rpm)	Weight (kg)*	Length (mm)	Height (mm)	Drive
CCBPW04Q	1,2 – 4	2 480	0,98	185	204	1/4” QC
CCBPW12Q	3,6 – 12	800	1,05	201	204	1/4” QC
CCBPW123	3,6 – 12	800	1,05	198	204	3/8” SQ
CCBPW22Q	6,6 – 22	430	1,05	201	204	1/4” QC
CCBPW223	6,6 – 22	430	1,05	198	204	3/8” SQ
CCBPWN200D6	40 – 195	42	3,36	339	204	3/4” SQ
CCBPWN500D6	119 – 500	14	3,58	339	204	3/4” SQ
CCBPWN1000D6	214 – 1000	8	6,38	403	208	3/4” SQ
CCBPWN1350D8	293 – 1350	6	6,68	403	208	1″ SQ
CCBPWN2000D8	436 – 2000	4	7,23	403	208	1″ SQ

Accessories
Item	Description
T50-1000497	18 V/2.0 Ah battery
T50-1000498	18 V/5.0 Ah battery
T50-1000506	18 V rapid charger
T50-1000508	18 V 6-bay charger

Scratch Protector
Item	Compatible
T50-1102352	CCBPW04Q
T50-1102353	CCBPW12Q, CCBPW123, CCBPW22Q, CCBPW223
T50-3102258	CCBAW153(B), CCBAW253(B), CCBAW353(B)
T50-3102259	CCBAW353(B)
T50-3102260	CCBAW503(B)

*) Tool weight values do not include battery – 2 Ah battery weighs 0.43 kg and 5 Ah battery weighs 0.72 kg.
**) Ball retainer
