Single Acting Threaded Cylinders

HT SERIES

BVA’s HT series cylinders are equipped with two threaded parts that allow them to be easily attached to production equipment, for example. The piston head of the cylinders is equipped with external threads and the bottom of the body with internal threads. The comprehensive range covers range of 10-20 ton.

Removable threaded plunger adapter for attaching accessiories to plunger end and base
High flow 3/8”-18NPTF ball couplers with dust caps included
Maximum working pressure is 700 bar

Description

Single Acting Threaded Cylinders

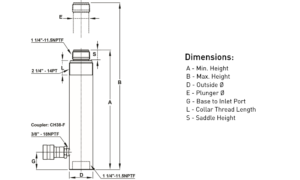

Item	Push Capacity tn (kN)	Stroke (mm)	Cylinder Effective Area (cm2)	Oil Capacity (cc)	Collapsed height A (mm)	Outside Ø D (mm)	Plunger Ø E (mm)	Base to inlet port G (mm)	Collar K	Collar thread lenght L (mm)	Saddle height S (mm)	Base Threads T	Plunger Threads V	Weight (kg)
HT1006	10 (100)	151	14,5	218	291	57	38	42	2 1/4”-14UN	29	24	1 1/4″- 11 1/2 NPSM	1 1/4″- 11 1/2 NPSM	4,8
HT1010	10 (100)	253	14,5	365	393	57	38	42	2 1/4”-14UN	29	24	1 1/4″- 11 1/2 NPSM	1 1/4″- 11 1/2 NPSM	6,4
HT2005	20 (228)	131	33,2	421	299	85	57	47	3 5/16”-12UN	50	36	2″ – 11 1/2 NPTF	2″ – 11 1/2 NPSM	10
