Single Acting Low Profile Cylinders

HL SERIES

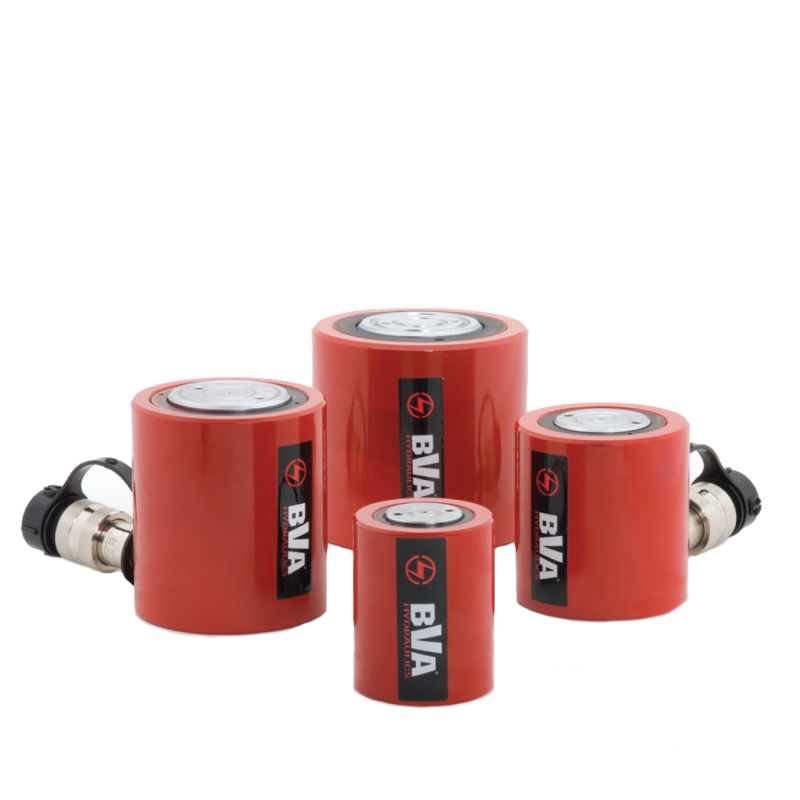

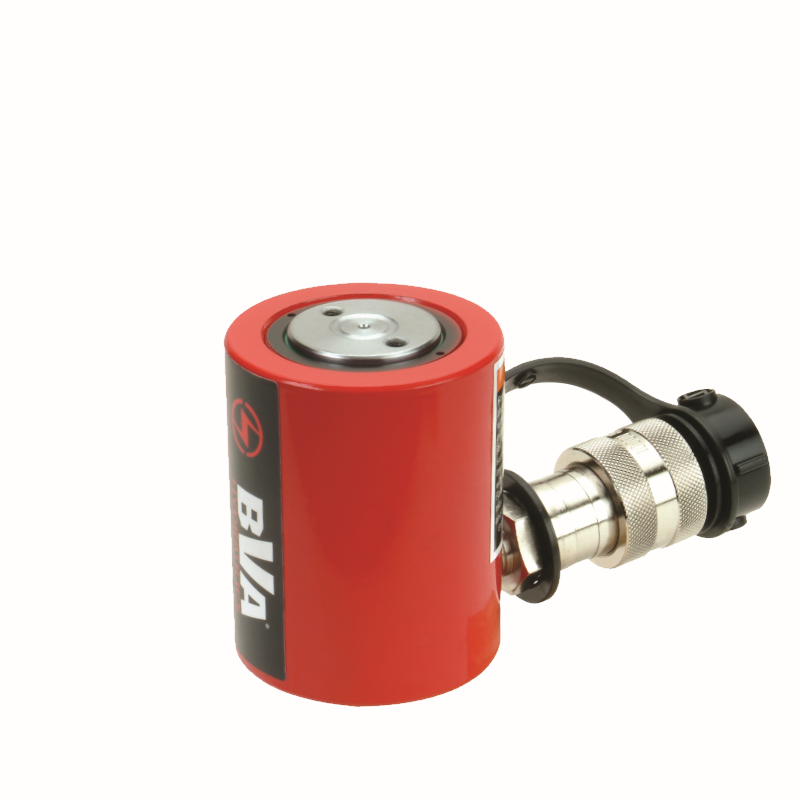

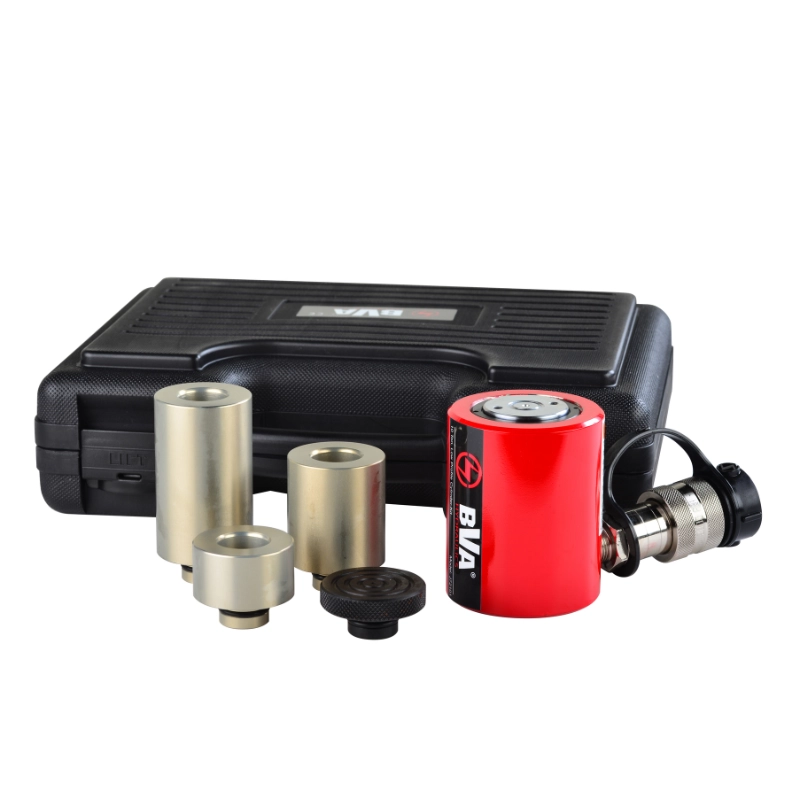

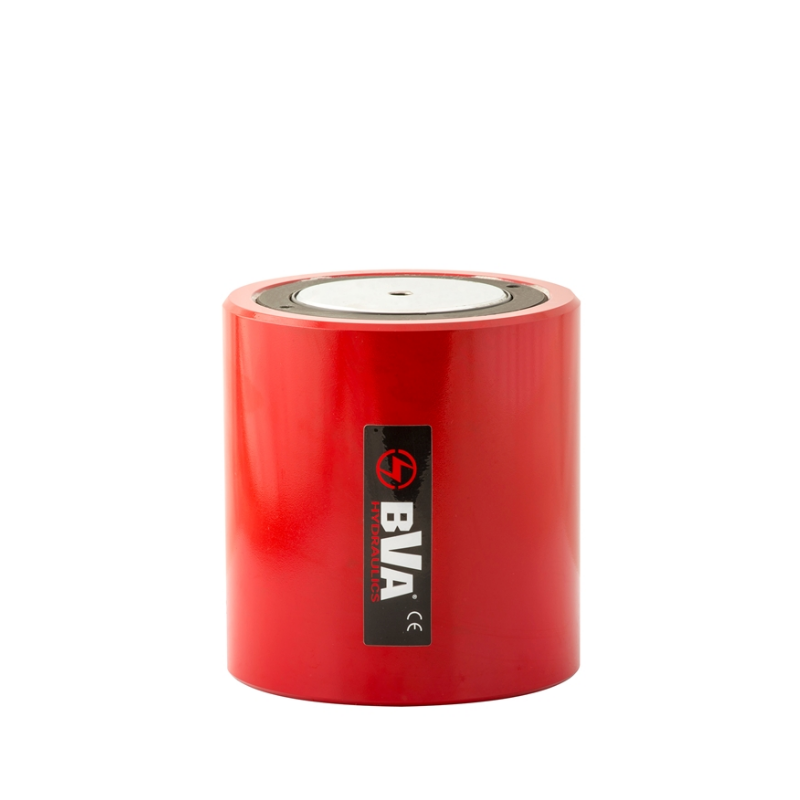

Our low profile hydraulic cylinders offer the right solutions for working in tight spaces. The cylinders include a specially designed and long-life spring which accelerates the return of the piston to its initial position. The range covers cylinders with a push power of 10–90 tn. In addition, our selection includes ready-made accessory kits, in which the cylinder is supplied with a set of three extension pieces with magnetic locking and a metal protective piece.

  • Plunger wiper reduces contamination and extends the cylinder-life
  • Industrial hard chrome plated ram helps to prevent scratching and corrosion
  • Plunger end is grooved to reduce load slipping
  • High flow ball coupler and dust cap included
  • HL1001, HL2002 and HL3002 coupler is tilted upward for added clearance
  • Maximum working pressure 700 bar



More from BVA Hydraulics >>

Can’t find what you’re looking for? Contact us, and we’ll help you to find the right solution outside our standard range!

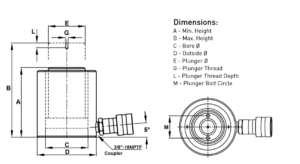

Description



Single Acting Low Profile Cylinders
Item Push Capacity tn (kN) Stroke (mm) Min. Height (mm) Outside Ø (mm) Oil Capacity (cc) Cylinder Effective Area (cm2) Weight (kg)
HL1001 10 (104) 38 89 70 58 15,2 2,6
HL2002 20 (194) 44 99 92 125 28,2 5
HL3002 30 (288) 62 117 102 260 41,9 6,8
HL5002 45 (437) 60 122 124 382 63,7 9,9
HL10002 90 (870) 57 141 165 722 126,7 20,6

Brand

BVA Hydraulics

BVA Hydraulics

BVA Hydraulics is a highly valued manufacturer of hydraulic cylinders, hydraulic units and other cylinder-based tools for industrial use. Focusing on customer service, product innovation and a worldwide stocking program, BVA has become a solutions provider to the global industrial hydraulic cylinder markets. Dependable and reliable performance are all backed up by one of the industry’s best warranties. Visit manufacturer's website >>
BVA Hydraulics

Product Sheet

Product Sheet (in Finnish) [PDF]
