Description

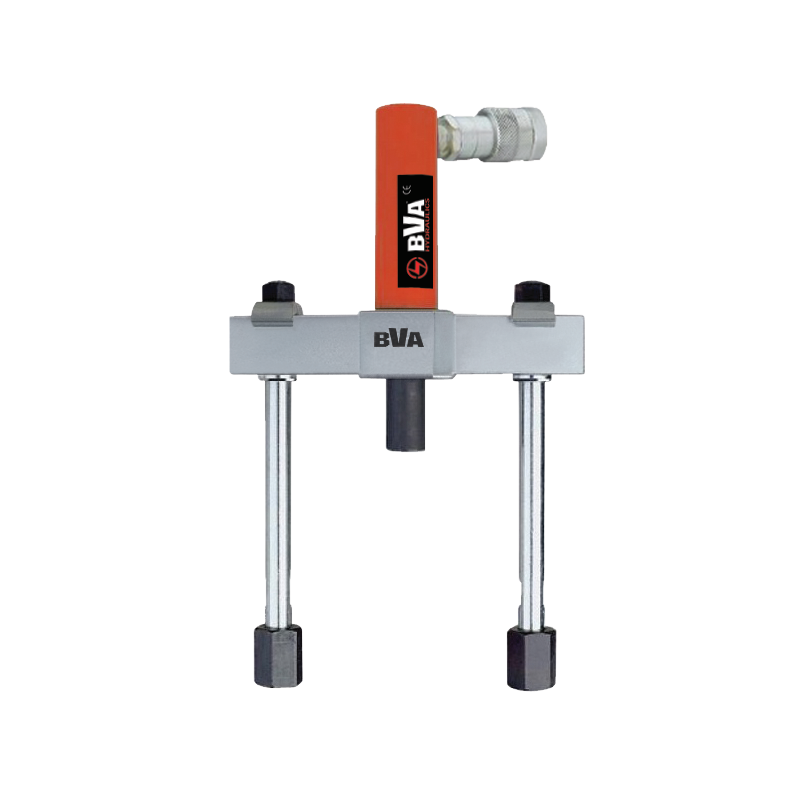

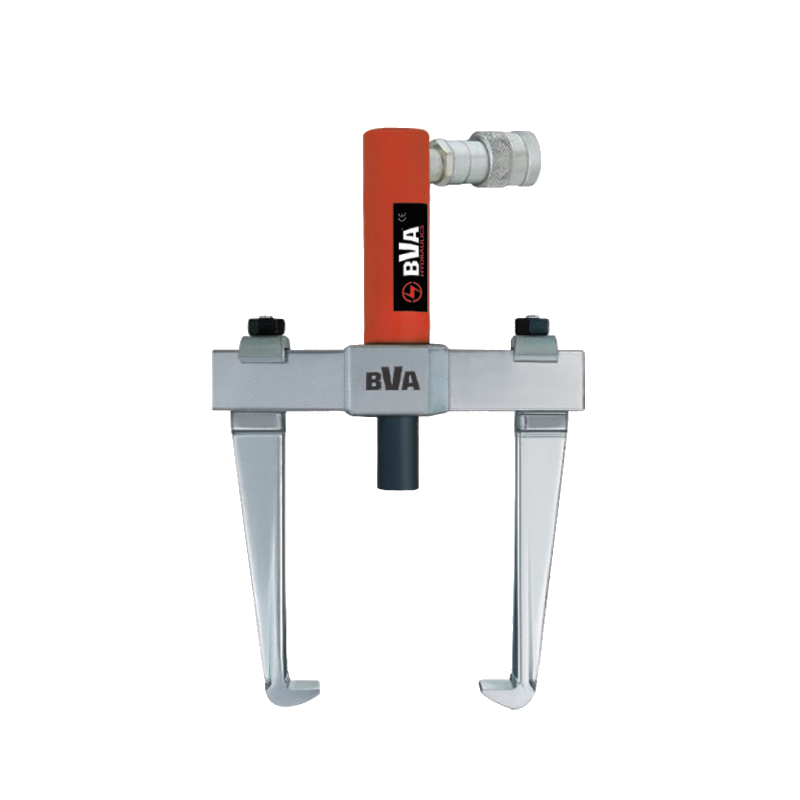

| 2-Leg Gear Pullers For Single Acting Cylinders | ||||||
| Item | Capacity (tn) | A (mm) | B max. (mm) | C (mm) | W (mm) | Weight (kg) |
| AP1205 | 5 | 160 | 200 | 260 | 175 – 270 | 8,5 |
| APL1205 | 5 | 220 | 200 | 260 | 175 – 270 | 9 |
| AP2205 | 5 | 190 | 250 | – | – | 7,8 |

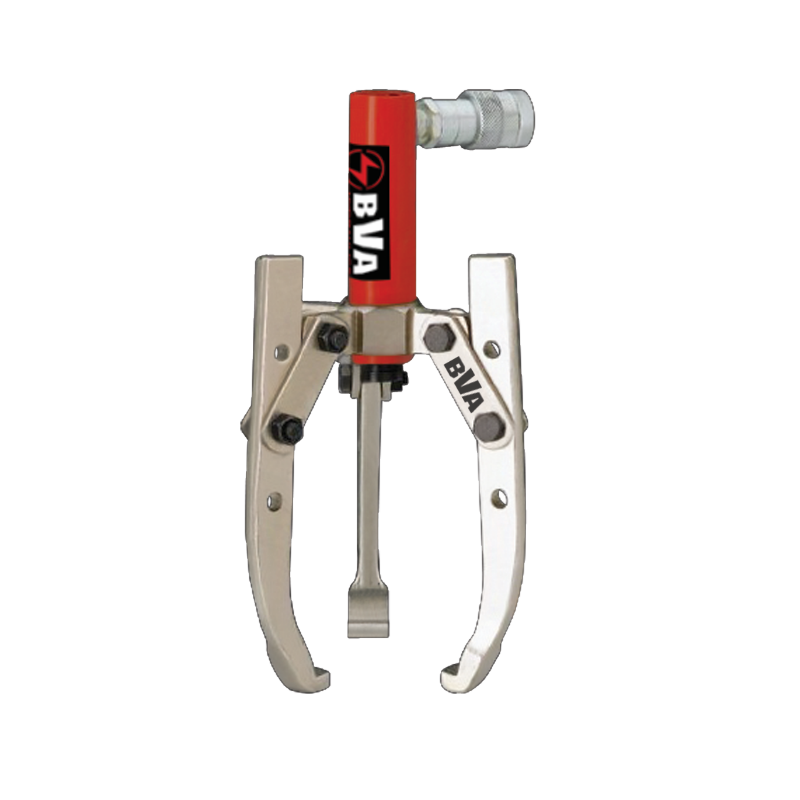

| 2/3-Leg Gear Pullers For Single Acting Cylinders | ||||||
| Item | Capacity (tn) | A (mm) | B max. (mm) | C (mm) | W (mm) | Weight (kg) |
| AP1305 | 5 | 225 | 240 | – | – | 3,5 |
| AP1310 | 10 | 400 | 350 | – | – | 9,5 |
| 2/3-Leg Gear Pullers For Hollow Hole Cylinders | ||||
| Item | Capacity (tn) | A (mm) | B max. (mm) | Weight (kg) |
| AP2310 | 10 | 315 | 350 | 9 |
| APL2310 | 10 | 400 | 410 | 10 |
| 2/3-Leg Self-Centering Gear Pullers For Hollow Hole Cylinders | ||||
| Item | Capacity (tn) | A (mm) | B max. (mm) | Weight (kg) |
| APC2310 | 10 | 315 | 350 | 14 |
| APLC2310 | 10 | 400 | 405 | 16 |

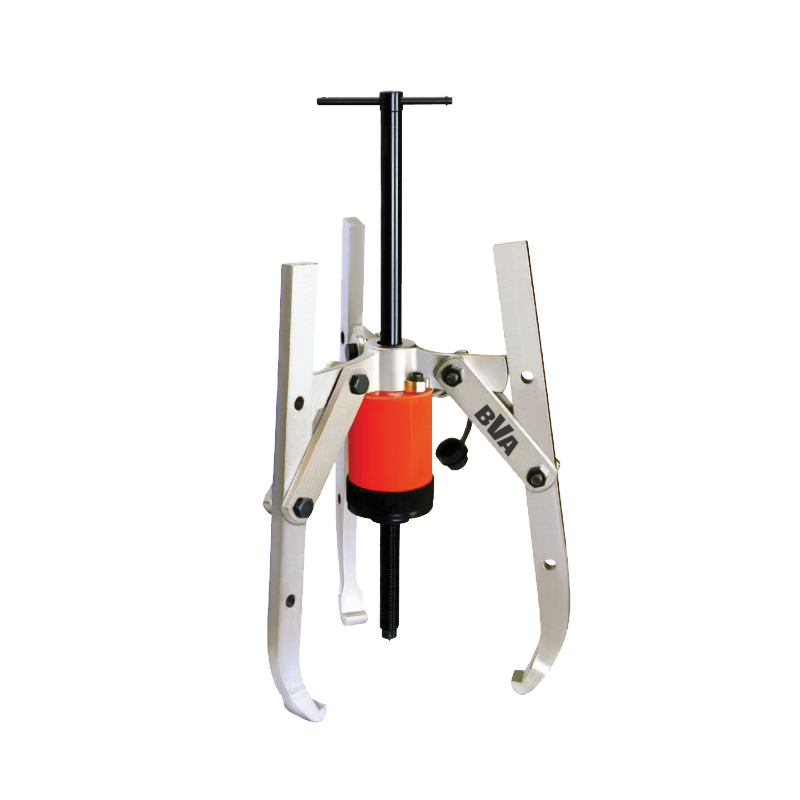

| 3-Leg Gear Pullers For Hollow Hole Cylinders | ||||
| Item | Capacity (tn) | A (mm) | B max. (mm) | Weight (kg) |
| AP2320 | 20 | 320 | 480 | 23 |
| APL2320 | 20 | 435 | 540 | 26 |
| AP2330 | 30 | 410 | 650 | 40 |
| APL2330 | 30 | 535 | 720 | 46 |
| AP2360 | 60 | 710 | 980 | 87 |
| APL2360 | 60 | 860 | 1 080 | 96 |

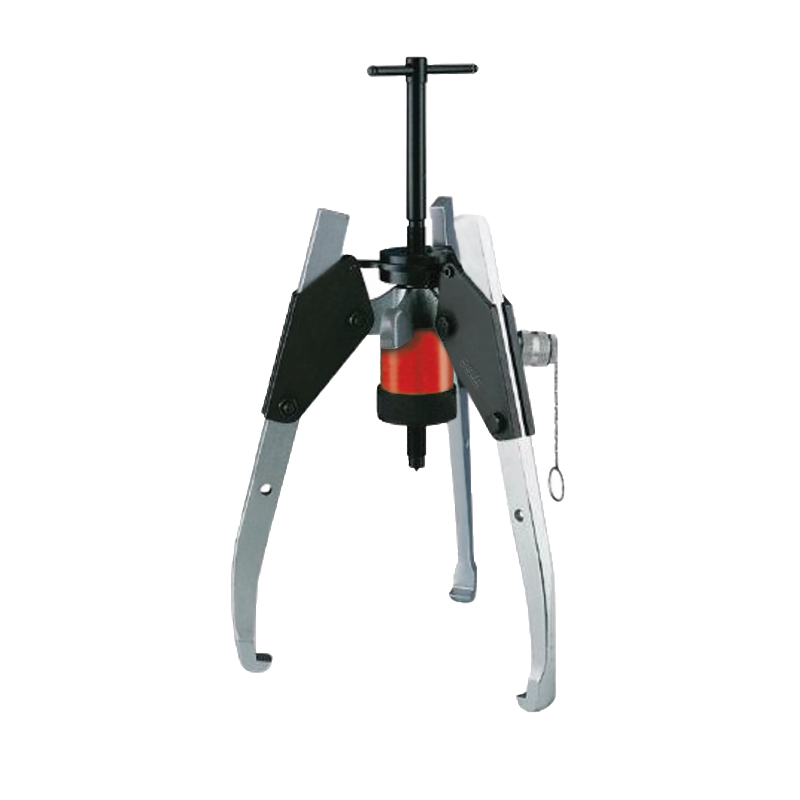

| 3-Leg Self-Centering Gear Pullers For Hollow Hole Cylinders | ||||
| Item | Capacity (tn) | A (mm) | B max. (mm) | Weight (kg) |
| APC2320 | 20 | 320 | 480 | 33 |
| APLC2320 | 20 | 435 | 540 | 36 |
| APC2330 | 30 | 410 | 650 | 57 |
| APLC2330 | 30 | 535 | 720 | 62 |
| APC2360 | 60 | 710 | 980 | 122 |
| APLC2360 | 60 | 860 | 1 080 | 131 |
| APC2399 | 100 | 1 000 | 1 600 | 322 |
