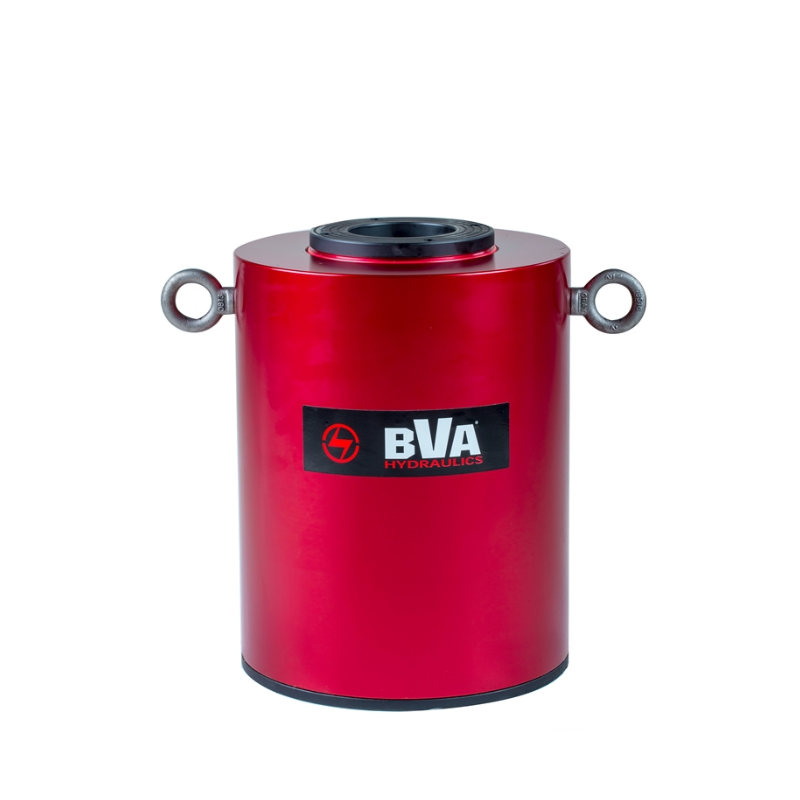

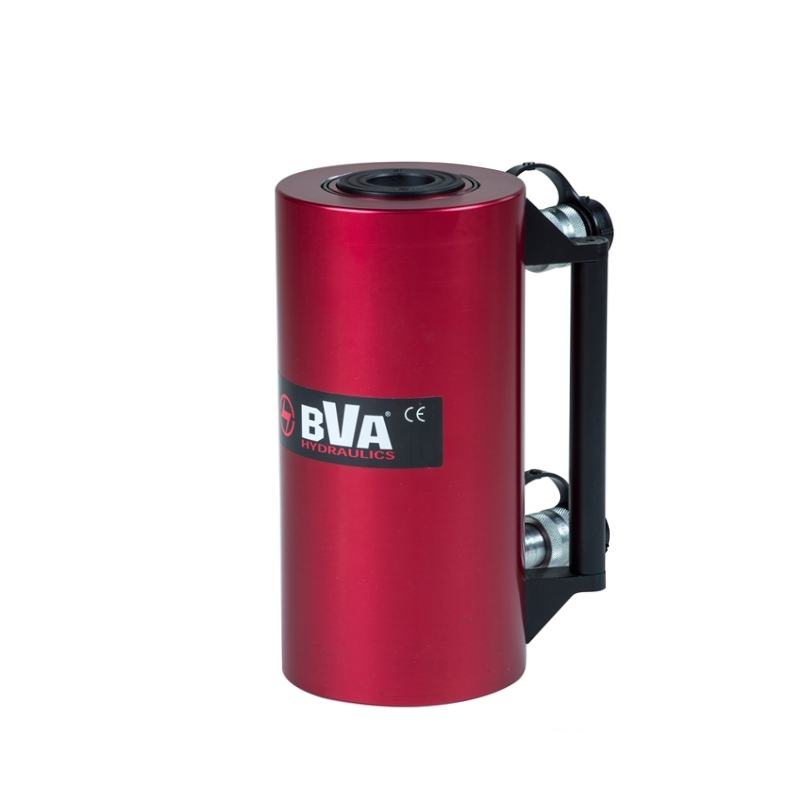

Double Acting Hollow Hole Aluminium Cylinders

HUDC SERIES

BVA’s double acting hollow hole aluminium cylinders cover pushing range of 30-150 ton and pulling range of 10-155 ton. The aluminium cylinders are as quality as the traditional steel-framed cylinders but due to their manufacturing material they are considerably lighter and thus easier to move. Hard anodized aluminum rod provides extra protection against corrosion and wear.

Piston spring return movement
Lightweight aluminum alloy construction
Maximum working pressure 700 bar
Handles included in all models

Description

Push Capacity 30 tn (281 kN), Pull Capacity 13 tn (89 kN)
Item	Stroke (mm)	Min. Height (mm)	Outside Ø (mm)	Plunger I.D (mm)	Push Oil Capacity (cc)	Pull Oil Capacity (cc)	Push Effective Area (cm2)	Pull Effective Area (cm2)	Weight (kg)
HUDC3002	50	180	140	38	208	67	41	13	9
HUDC3004	101	231	140	38	416	133	41	13	11
HUDC3006	152	282	140	38	624	200	41	13	14
HUDC3010	254	394	140	38	1 040	332	41	13	18

Push Capacity 50 tn (456 kN), Pull Capacity 22 tn (151 kN)
Item	Stroke (mm)	Min. Height (mm)	Outside Ø (mm)	Plunger I.D (mm)	Push Oil Capacity (cc)	Pull Oil Capacity (cc)	Push Effective Area (cm2)	Pull Effective Area (cm2)	Weight (kg)
HUDC5002	50	180	191	54	337	112	66,5	22,1	15
HUDC5004	100	231	191	54	675	225	66,5	22,1	19
HUDC5006	152	282	191	54	1 013	337	66,5	22,1	23
HUDC5010	254	384	191	54	1 689	563	66,5	22,1	30

Push Capacity 75 tn (674 kN), Pull Capacity 40 tn (275 kN)
Item	Stroke (mm)	Min. Height (mm)	Outside Ø (mm)	Plunger I.D (mm)	Push Oil Capacity (cc)	Pull Oil Capacity (cc)	Push Effective Area (cm2)	Pull Effective Area (cm2)	Weight (kg)
HUDC7502	50	245	229	70	499	203	98,3	40,1	24
HUDC7504	100	295	229	70	998	407	98,3	40,1	32
HUDC7506	152	346	229	70	1 497	611	98,3	40,1	39
HUDC7510	254	448	229	70	2 495	1 019	98,3	40,1	45

Push Capacity 100 tn (955 kN), Pull Capacity 48 tn (332 kN)
Item	Stroke (mm)	Min. Height (mm)	Outside Ø (mm)	Plunger I.D (mm)	Push Oil Capacity (cc)	Pull Oil Capacity (cc)	Push Effective Area (cm2)	Pull Effective Area (cm2)	Weight (kg)
HUDC10002	50	257	279	89	707	246	139,3	48,5	42
HUDC10004	100	308	279	89	1 415	492	139,3	48,5	49
HUDC10006	152	359	279	89	2 123	738	139,3	48,5	56
HUDC10010	254	461	279	89	3 539	1 230	139,3	48,5	65

Push Capacity 150 tn (1 328 kN), Pull Capacity 71 tn (487 kN)
Item	Stroke (mm)	Min. Height (mm)	Outside Ø (mm)	Plunger I.D (mm)	Push Oil Capacity (cc)	Pull Oil Capacity (cc)	Push Effective Area (cm2)	Pull Effective Area (cm2)	Weight (kg)
HUDC15002	50	257	304	89	1 004	295	193,6	71	52
HUDC15004	100	308	304	89	2 008	590	193,6	71	61
HUDC15006	152	359	304	89	3 012	885	193,6	71	72
HUDC15010	254	461	304	88	5 021	1 475	193,6	71	82
