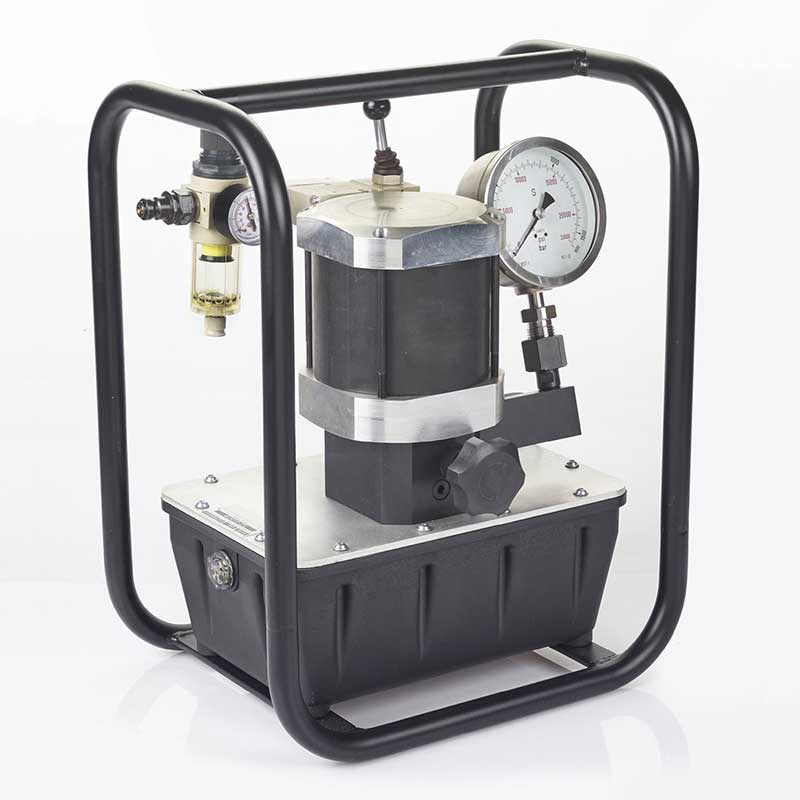

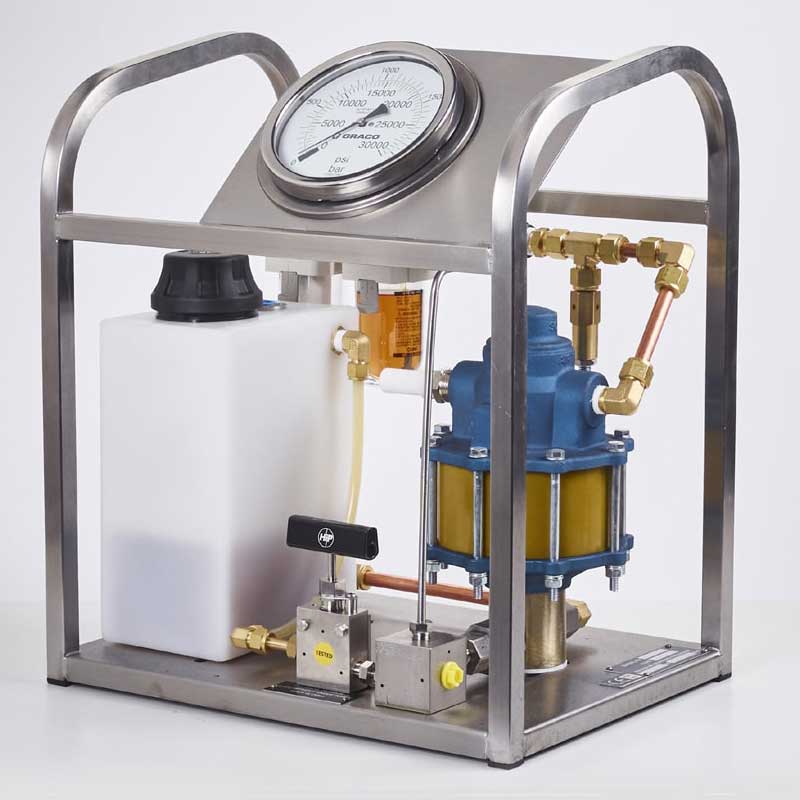

Air Powered Pumps

Air powered hydraulic pump units are designed and manufactured to be very reliable and easy to use. The large oil volume enables the simultaneous use of several tensioners. Pumps are available up to 3,000 bar.

  • Stainless steel frame
  • Air silence included = 85 dBA max
  • 4.5L tank (SF / HF models)



More from TensionPro >>

Category:

Description

Air Powered Pumps
Item Model Max. pressure (bar) Oil Capacity (L) Dimensions L x W x H (mm) Weight (kg)
PPD1500 PASF-1500 1 500 4,5 450 x 340 x 520 19,5
PPD2500 PASF-2500 2 500 4,5 450 x 340 x 520 19,5
PPD1500-HF PAHF-1500 1 500 4,5 450 x 340 x 520 22,5
PPD2500-HF PAHF-2500 2 500 4,5 450 x 340 x 520 22,5
PPD1500-MINI PAMI-1500 1 500 2,4 340 x 230 x 390 15
PPD1500-2* PACS-1500 1 500 7,5 450 x 430 x 420 19,5
PPD2500-2* PACS-2500 2 500 7,5 450 x 430 x 420 19,5

* Available with ATEX certification

Brand

TensionPro

TensionPro logo header TensionPro's tensioners are used in many industrial applications where it is impossible to use traditional hydraulic, pneumatic or electric torque tools. When using tensioners, the bolted connection is subjected to a purely axial force, and friction, lubrication, lateral loads or other variables causing uncertainty cannot thus impair the tightening result. TensionPro tensioners can also be connected into chains of several tools, which means that a common hydraulics can achieve and ensure a perfectly accurate and smooth result. The quality of operations is also indicated by the ISO9001:2015 certificate.

Visit manufacturer's website >>

TensionPro logo

Product Sheet

Product Sheet [PDF] (in Finnish)
